Dovers 200
Series: Other models

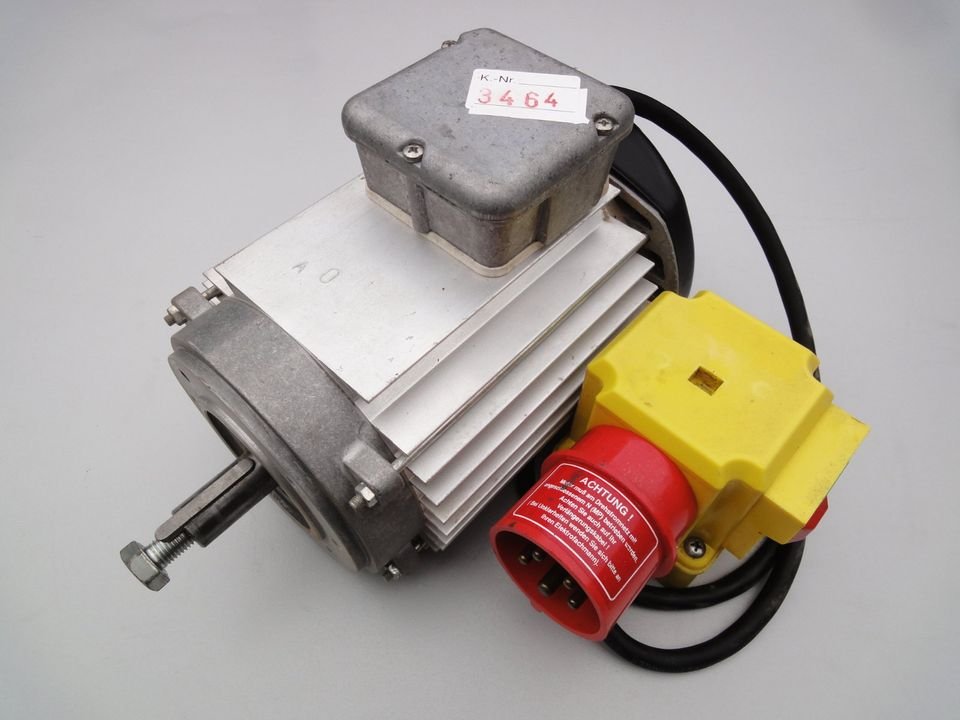

The photo shows the 250 from the same series.
Source: https://www.kleinanzeigen.de/s-anzeige/hc-260-elektra-beckum
Dovers lists the 200 as a three-phase induction motor. The rated output is 22 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 415 V. The housing is frame size 200 L in foot-mounted form. The protection class is IP55. The efficiency is 91 per cent at full load, 90.5 per cent at 75 per cent load and 89.2 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B35, B34, B5, B14 and V1. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to AS/NZS 1359.102.3:2000. Rated output across the Dovers range ranges from 0.75 to 110 kW; the 200 sits in the lower part of that range with 22 kW. Its immediate neighbours are the 180 below it with 15 kW and the 225 above it with 45 kW. 13 Dovers models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.
Technical data
Engine
| Rated output | 22 kWcorrect |
|---|
Electrical data
| Rated voltage | 415 Vcorrect |
|---|---|
| Number of poles | 6correct |
| Protection class | IP55correct |
| Frame size | 200 L (foot)correct |
| Mounting (IEC 60034-7) | B3, B35, B34, B5, B14, V1correct |
| Efficiency at full load | 91 %correct |
| Efficiency at 75 % load | 90.5 %correct |
| Efficiency at half load | 89.2 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|---|
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct |
| Test method | AS/NZS 1359.102.3:2000correct |
Frequently asked questions
How much power does the Dovers 200 have?
The Dovers 200 delivers 22 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
