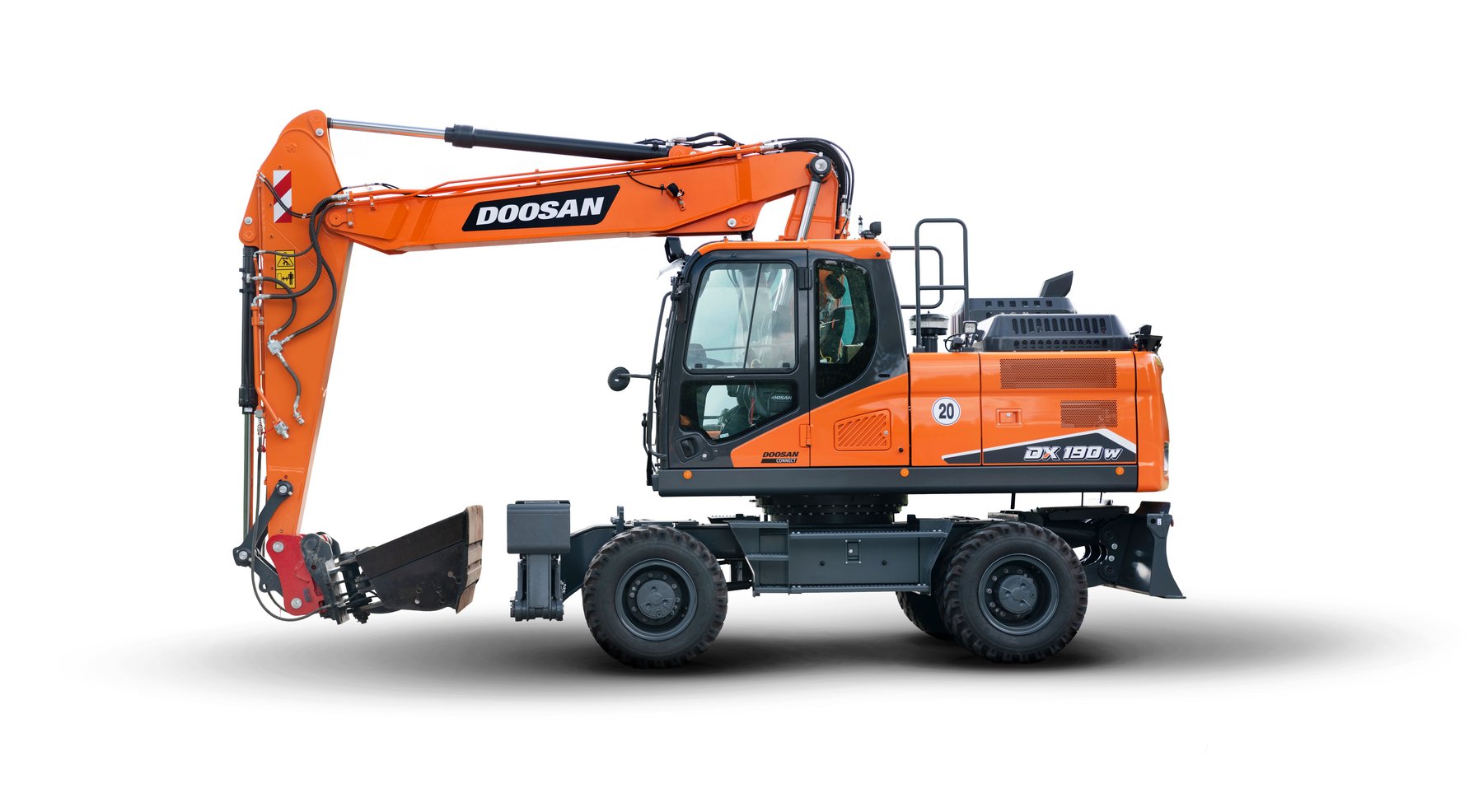

Doosan DX190W

Series: Doosan Mobile Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The DX190W from Doosan is part of the Doosan Mobile Excavator series. The engine delivers 116.3 kW, has 6 cylinders, with a displacement of 5,883 cm³. Rated speed is 1,900 rpm. The wheelbase measures 2,700.5 mm. Ground clearance is 350.5 mm. The tank holds 310 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 400.1 l/min. The hydraulic tank holds 205.2 litres. Working pressure is 323.8 bar. The cooling system holds 24.2 litres. The oil fill is 25.4 litres. The engine fitted is the DL06. Tyre size: 10,0-20-14PR. The Doosan Mobile Excavator series covers 13 models. Rated output within it ranges from 40.3 to 139 kW; the DX190W sits in the upper part of that range with 116.3 kW. Its immediate neighbours are the S180WV below it with 111.9 kW and the DX210W above it with 120.8 kW. 314 Doosan models across 20 series are on record. The model is listed under Excavators & compaction. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDL06correct
Power116.3 kWcorrect
Rated speed1,900 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement5,883 cm³correct
Aspirationturbocharged and air to air intercoolercorrect
Coolant capacity24.2 lcorrect
Engine oil capacity25.4 lcorrect

Dimensions and weights

Wheelbase2,700.5correct
Ground clearance350.5correct

Drivetrain and chassis

Gearbox typehydrostatic transmission powershift transmissioncorrect
Forward gears3correct
Reverse gears3correct
Tyre size10.0-20-14PRcorrect

Working data

Pump flow400.1 l/mincorrect
Hydraulic oil capacity205.2 lcorrect
Hydraulic pressure323.8 barcorrect
Fuel tank capacity310 lcorrect

Other data

Height3,136.4correct

Frequently asked questions

How much power does the Doosan DX190W have?

The Doosan DX190W delivers 116 kW.

What engine does the Doosan DX190W have?

6 cylinders, 5,883 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
