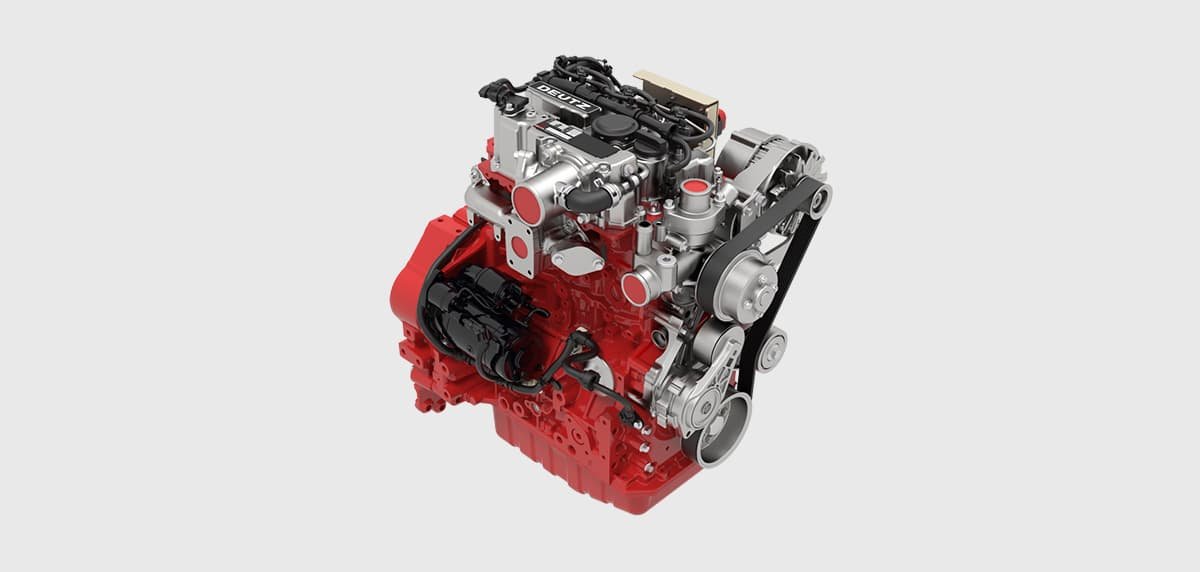

Deutz SD80F

Built: 2015-2026 · Series: Other models

Source: https://www.deutz.fi/product/deutz-fi/d-2-2-l3-3/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The SD80F comes from Deutz. Production: 2015-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 180 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Deutz range ranges from 18 to 520 kW; the SD80F sits in the lower part of that range with 180 kW. Its immediate neighbours are the TAD751GE below it with 174 kW and the TAD762VE above it with 185 kW. 193 Deutz models across 27 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine codeCFVI180Scorrect
Engine familyFDZXL07.8046correct
Engine familiesKDZXL07.8046; SDZXL07.8046; NDZXL07.8046; PDZXL07.8046; HDZXL07.8046; TDZXL07.8046; GDZXL07.8046; LDZXL07.8046; FDZXL07.8046; JDZXL07.8046; MDZXL07.8046; RDZXL07.8046correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output180 kWcorrect
Power band130<=kW<=560correct
Rated speed2,100 rpmcorrect
Maximum torque1,330 N·mcorrect
Speed at max. torque1,450 rpmcorrect
Cylinders6correct
Cylinder layoutin linecorrect
Bore110 mmcorrect
Stroke136 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionCFVI180Scorrect
Built from2015correct
Built to2026correct
Model year from2015correct
Model year to2026correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Deutz SD80F have?

The Deutz SD80F delivers 180 kW.

When was the Deutz SD80F built?

Production years: 2015-2026.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 27 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
