Deutz / Deutz Fahr INTRAC 2004
Built: 1978–1989 · Series: INTRAC
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

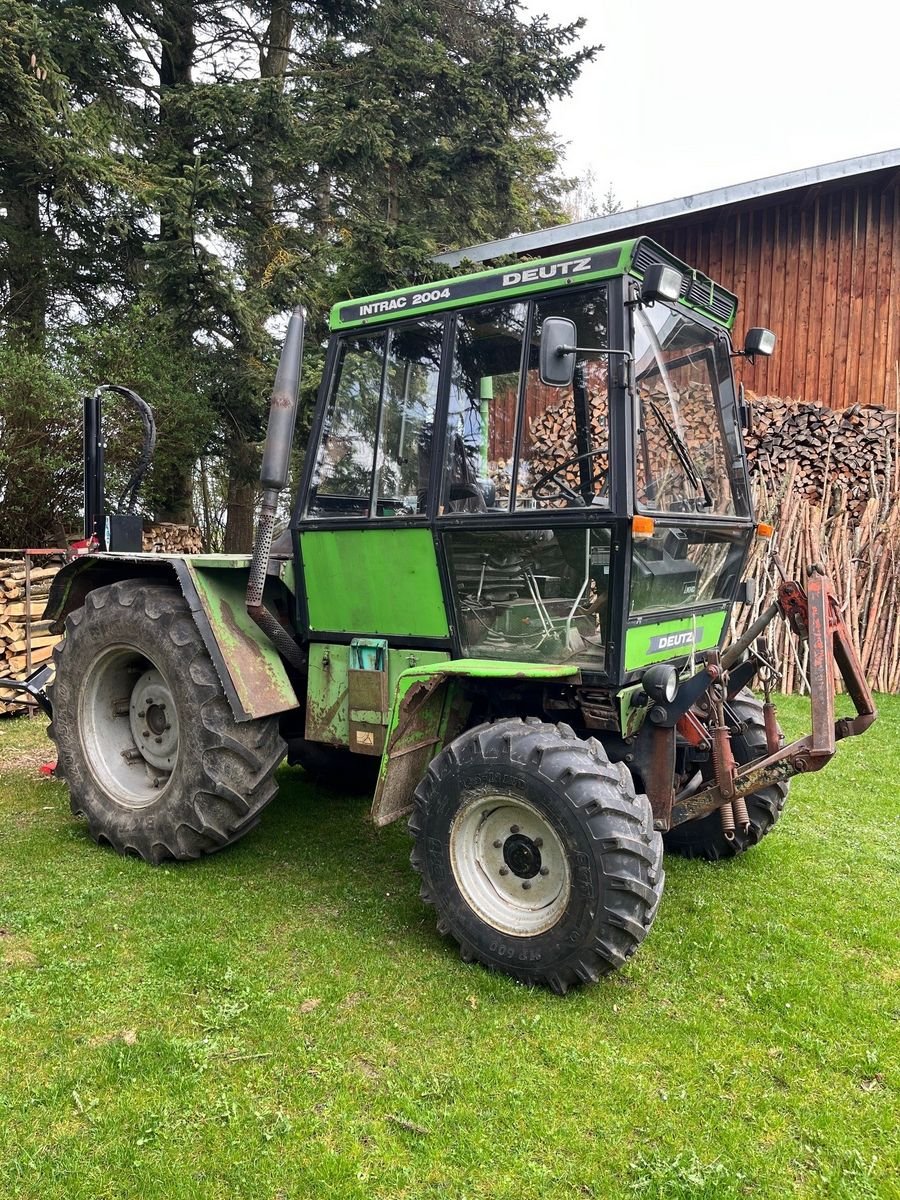

Deutz-Fahr INTRAC 2004: air-cooled four-cylinder implement carrier with central driving position, 3,768 cm³ displacement, 70 hp (51.2 kW) and 3,200 kg weight
Deutz-Fahr developed the INTRAC range as an implement carrier that combines the tasks of a classic tractor with those of a mounted-implement carrier. Unlike an ordinary field tractor, the driver sits above the front axle, leaving space between the axles for front- and mid-mounted implements.
Read on 3 more paragraphs
The four-cylinder diesel engine with 3,768 cm³ displacement is air-cooled and produces 70 hp, or 51.2 kW, at 2,300 rpm. At 3,200 kg weight, 3,560 mm length, 2,025 mm width and 2,760 mm height, the INTRAC 2004 is wider than a comparably heavy standard tractor, a result of the central driving position and equally sized wheels at all four corners.
With a top speed of 30 km/h, the INTRAC 2004 falls into driving licence category L (up to 40 km/h). Equally sized wheels front and rear, together with the centrally positioned driver's seat, allow front, mid and rear implements to be operated alike, which makes the carrier well suited to maintenance work between row crops and to municipal use.
When buying an INTRAC, check the condition of the mid-mounting bays and their brackets, which see more wear than on a standard tractor from frequent implement changes. Also check the constant-velocity joints of the four-wheel steering, the condition of the air-cooled cylinder fins, and the hydraulic couplings for front- and mid-mounted implements.
Sources: SpecCodex-Register: Kennwerte des Modells Deutz-Fahr INTRAC 2004, Deutz-Fahr (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 70 hp (51.2 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,768 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,560 mmcorrect |
|---|---|
| Width | 2,025 mmcorrect |
| Height | 2,760 mmcorrect |
| Wheelbase | 2,200 mmcorrect |
| Ground clearance | 355 mmcorrect |
| Unladen weight | 3,200 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 8V / 4Rcorrect |
| Front tyres | 10.5-20 MPTcorrect |
| Rear tyres | 16.9-30 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | <1.000correct |
Where this model stands
Power-to-weight ratio: 16 kW/t (51 kW / 3.2 t)
Power class: Universal (40–100 hp)
Stronger than 48% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz / Deutz Fahr INTRAC 2004 have?
The Deutz / Deutz Fahr INTRAC 2004 delivers 70 hp.
How much does the Deutz / Deutz Fahr INTRAC 2004 weigh?
The unladen weight is 3,200 kg.
What engine does the Deutz / Deutz Fahr INTRAC 2004 have?
4 cylinders, 3,768 cm³ displacement, Diesel.
How fast does the Deutz / Deutz Fahr INTRAC 2004 go?
Top speed is 30 km/h.
What are the dimensions of the Deutz / Deutz Fahr INTRAC 2004?
3,560 mm × 2,025 mm × 2,760 mm.
When was the Deutz / Deutz Fahr INTRAC 2004 built?
Production years: 1978–1989.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
