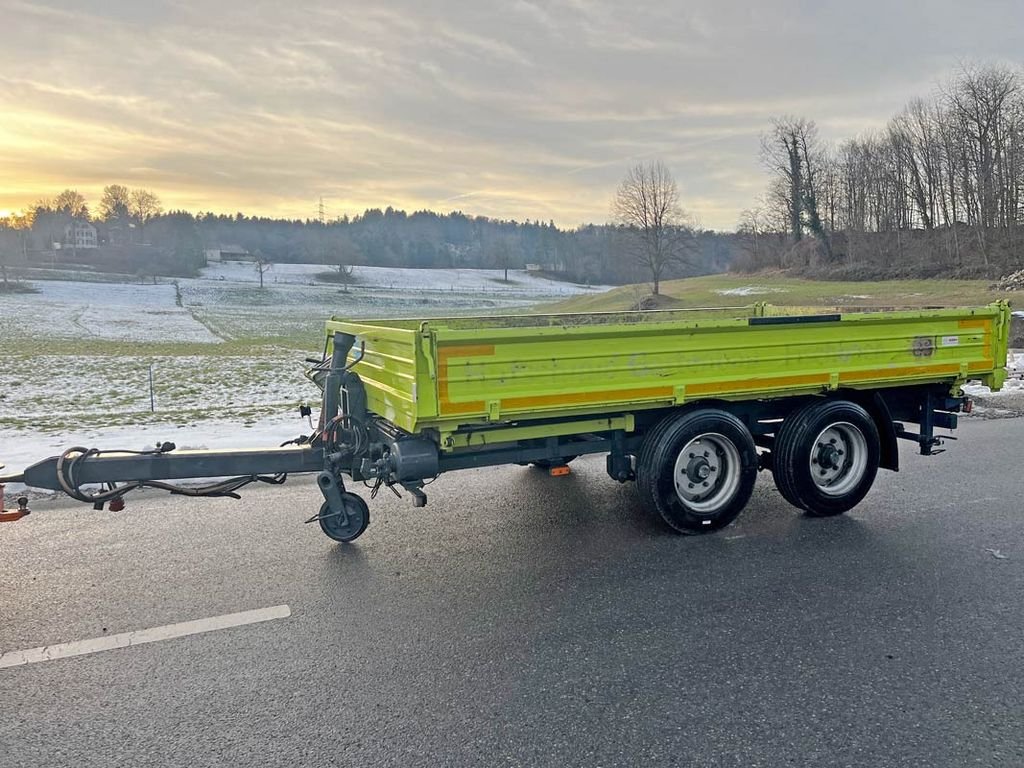

De Vries JV 5000
Built: 1978-1997 · Series: JV
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
De Vries JV – the range of light to medium-duty trailers whose model number states the weight class in kilograms, gross weight from 3.5 to 12 t
The JV range from De Vries bundles trailers in graduated weight classes; the model number (JV 3500, JV 5000, JV 8000, JV 12000 and intermediate steps such as JV 5400 or JV 8700) states the gross-weight class in kilograms, while the suffix T or KA distinguishes versions with a different drawbar or body form within the same weight class.
Read on 3 more paragraphs
The register lists 33 versions with unladen weights from 1,560 to 8,280 kg, gross vehicle weights from 3,500 to 12,000 kg, lengths from 8,840 to 12,170 mm and widths from 1,670 to 2,550 mm.
With a graduation from 3.5 to 12 tonnes gross weight, the JV range covers the middle and upper segment of drawbar trailers for construction and agricultural businesses, a market field where numerous makers across Europe offer a similar logic of graduated weight classes; customers are mainly construction firms, plant-hire businesses and larger farms.
When buying used, what counts is the condition of the frame and load bed for cracks and deformation, the function of the axles and braking system as well as the drawbar and coupling, plus corrosion on load-bearing parts; on the heavier versions also even tyre wear and the condition of the jockey wheel and chocks. Spare parts for axles and the braking system are available through the general trailer specialist trade.
Sources: Kennwerte der Modelle De Vries JV
Technical data
Dimensions and weights
| Length | 10,150 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,090 mmcorrect |
| Unladen weight | 4,140 kgcorrect |
| Gross vehicle weight | 5,000 kgcorrect |
Drivetrain and chassis
| Wheels | 2correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the De Vries JV 5000 weigh?
The unladen weight is 4,140 kg.
What is the gross vehicle weight of the De Vries JV 5000?
5,000 kg.
Up to what speed is the De Vries JV 5000 approved?
Approved up to 100 km/h.
What are the dimensions of the De Vries JV 5000?
10,150 mm × 2,550 mm.
When was the De Vries JV 5000 built?
Production years: 1978-1997.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
