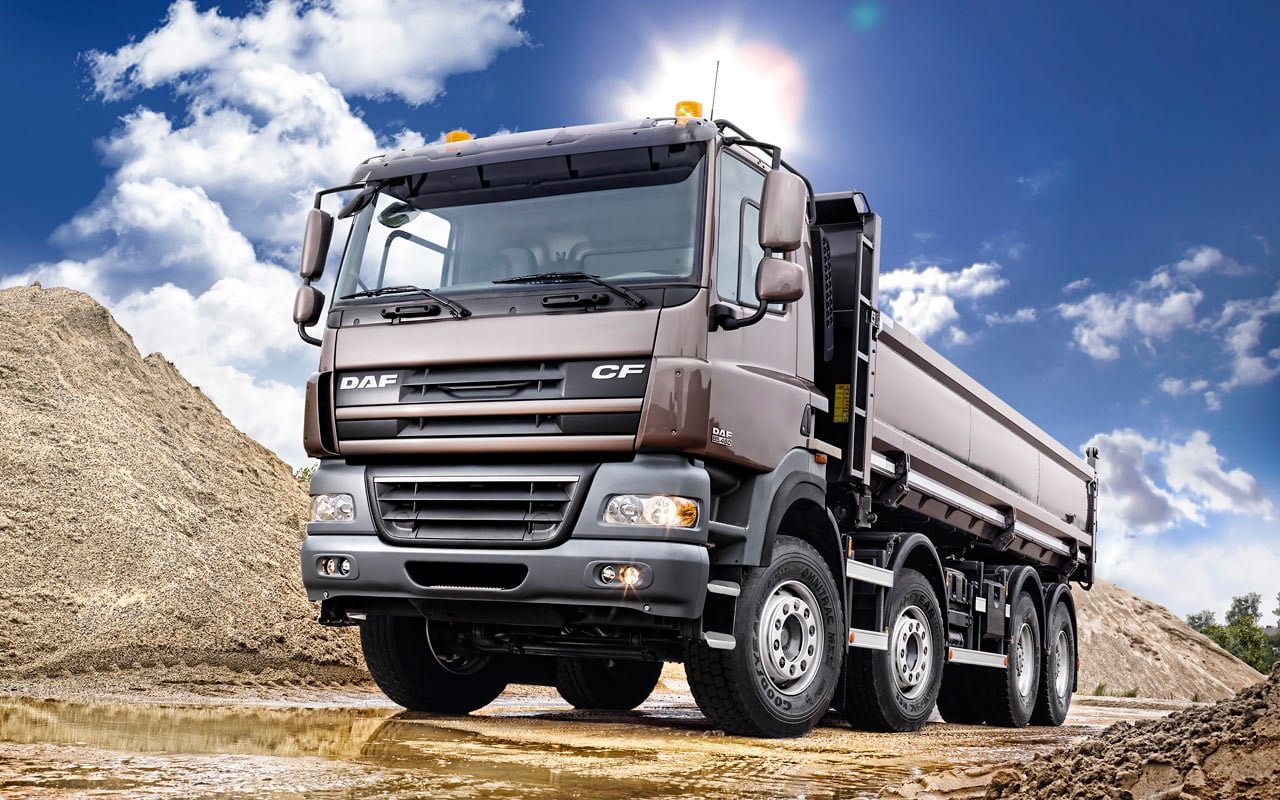

DAF FAT CF 85

Built: 2008-2009 · Series: FAT

More machines from model year 2008

Source: https://www.lectura-specs.com/en/model/transportation/trucks

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FAT CF 85 comes from DAF. Production: 2008-2009. The engine has 6 cylinders, with a displacement of 12,902 cm³. The machine is 10,710 mm long and 2,550 mm wide. The unladen weight is 27,800 kg. The wheelbase measures 6,250 mm. The gross vehicle weight is 28,000 kg. The machine runs on 6 wheels. Unladen weight across the DAF range ranges from 640 to 41,750 kg; the FAT CF 85 sits in the upper part of that range with 27,800 kg. Its immediate neighbours are the XF 460 FAX below it with 27,540 kg and the FAC XF 105 above it with 27,820 kg. 3087 DAF models across 60 series are on record. The model is listed under Trucks over 7.5 t. 11 verified figures from 1 source are on file.

DAF FAT – the collective page for heavy DAF trucks with the FAT chassis code, from the 2525 range through the 75 and WS ranges to the XF105: six-cylinder engines of 9.2 to 12.9 litres, gross weights up to 38 tonnes

This page gathers DAF trucks with the factory FAT chassis code. FA denotes a 4x2 chassis in DAF's own type code, with the attached letters R and T marking an additional axle configuration; a few models also carry the axle formula 6X4 explicitly in their name. The model list ranges from the four-digit types of the 2500 and 2600 ranges and the WS range through the 75 and 85 types to the more recent CF and XF105 generation, spanning several decades of DAF's type history in the heavy segment.

Read on 3 more paragraphs

The register lists 25 versions here, all with six-cylinder engines of 9,186 to 12,902 cc displacement, unladen weights from 9,351 to 27,800 kg, gross weights from 23,500 to 38,000 kg, lengths from 6,630 to 10,710 mm and widths from 2,450 to 2,600 mm; for part of the models, outputs of 315 to 375 kW.

Alongside Mercedes-Benz, Scania, Volvo, MAN and Iveco, DAF ranks among the major European heavy-truck makers; the FAT chassis, with its higher gross weights and partly three-axle configuration, covers heavy construction and long-haul transport, where high payload and axle-load distribution matter.

On a used example, the condition of the six-cylinder diesel engines, especially the turbocharger and injection system, the gearbox and clutch, rust on the frame and cab mounts, and the braking system and air suspension all count; on the older 2500 and WS types, spare-parts supply increasingly runs through specialists. For current CF and XF models, the DAF dealer network supplies parts.

Sources: Kennwerte der Modelle DAF FAT, DAF Trucks (PACCAR, Hersteller)

Technical data

Engine

Cylinders6correct
Displacement12,902 cm³correct

Dimensions and weights

Length10,710 mmcorrect
Width2,550 mmcorrect
Wheelbase6,250 mmcorrect
Unladen weight27,800 kgcorrect
Gross vehicle weight28,000 kgcorrect

Drivetrain and chassis

Wheels6correct

Frequently asked questions

How much does the DAF FAT CF 85 weigh?

The unladen weight is 27,800 kg.

What is the gross vehicle weight of the DAF FAT CF 85?

28,000 kg.

What engine does the DAF FAT CF 85 have?

6 cylinders, 12,902 cm³ displacement.

What are the dimensions of the DAF FAT CF 85?

10,710 mm × 2,550 mm.

When was the DAF FAT CF 85 built?

Production years: 2008-2009.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
