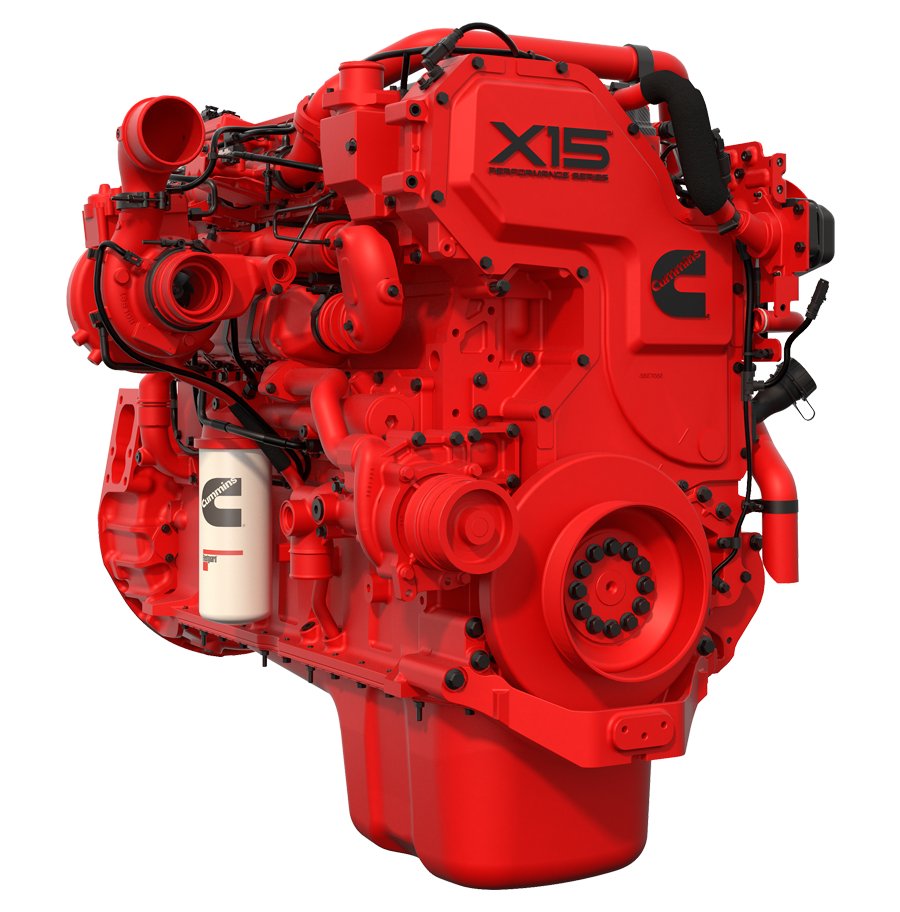

Cummins X15 565
Built: 2017-2026 · Series: X15
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Cummins X15 – the 14.9-litre six-cylinder for heavy tractors since 2017: 400 to 605 hp, Efficiency and Performance Series
The X15 is Cummins' heavy in-line six for North American Class 8 – tractor units, dump trucks, concrete mixers and heavy haul. It replaced the ISX15 in 2017, kept its 14.9 litres of displacement, but received new injection, turbocharger and aftertreatment and was offered in two configurations: the Efficiency Series for long-haul at low revs and the Performance Series for heavy haul and vocational work. The number in the name is the output in hp – X15 400 to X15 605 – and appended letters such as ST, SA, V, EV or EX mark torque curves and calibrations for particular transmissions and duties.
Read on 3 more paragraphs
The register lists 36 versions with 400 to 605 hp at 1,698 to 1,966 rpm, all with 14,900 cm³, direct injection and turbocharging. Peak torque lies between 1,650 and 1,950 lb-ft (2,237 to 2,644 Nm) and is reached between 900 and 1,150 rpm – a low torque speed which, together with the tall axle ratios of the Efficiency Series, lowers fuel consumption. The certifications cover model years 2017 to 2026, with 'Tractor and Vocational' as the application.
The EPA data specify ultra-low-sulphur diesel of 7 to 15 ppm; aftertreatment to US EPA 2017 combines diesel oxidation catalyst, particulate filter and SCR with urea. From 2024 the X15 has been developed further as part of Cummins' 'HELM' platform, which uses the same base engine for diesel, natural gas (X15N) and hydrogen.
For operators and used buyers, calibration and power rating (changeable by software later, but relevant to certification), the condition of the aftertreatment and the service history with Cummins' extended oil-change intervals are what count.
Sources: Kennwerte der Modelle Cummins X15 (EPA-Zertifizierungsdaten), Cummins X15 (Hersteller), EPA-Zertifizierungsdaten Motoren
Technical data
Engine
| Engine code | XH3correct |
|---|---|
| Engine family | TCEXH0912XEBcorrect |
| Engine families | KCEXH0912XAX; JCEXH0912XAX; HCEXH0912XAXcorrect |
| Fuel | 7-15 ppm ultra low sulfur dieselcorrect |
| Rated output | 565 hpcorrect |
| Rated speed | 1,900 rpmcorrect |
| Maximum torque | 1,850 ft·lbfcorrect |
| Speed at max. torque | 1,000 rpmcorrect |
| Displacement | 14,900 cm³correct |
| Displacement | 14.9 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | XH3correct |
|---|---|
| Built from | 2017correct |
| Built to | 2019correct |
| Model year from | 2017correct |
| Model year to | 2026correct |
| Sales region | USA certificationcorrect |
Other data
| Anwendungsbereich | Both Tractor and Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Cummins X15 565 have?
The Cummins X15 565 delivers 565 kW.
What engine does the Cummins X15 565 have?
14,900 cm³ displacement, 7-15 ppm ultra low sulfur diesel.
When was the Cummins X15 565 built?
Production years: 2017-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
X15 400
X15 400EX
X15 400SA
X15 400ST
X15 430ST
X15 430V
X15 450
X15 450EX
X15 450SA
X15 450ST
X15 450V
X15 470V
Sources: [1]
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Parts for this engine (139)
Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.
| Teilenummer | Bezeichnung | Hersteller |
|---|---|---|
| 4359192 | Aftertreatment Temperature Sensor | Cummins |
| 4359194 | Aftertreatment Temperature Sensor | Cummins |
| 4359195 | Aftertreatment Temperature Sensor | Cummins |
| 4359196 | Aftertreatment Temperature Sensor | Cummins |
| 4359197 | Aftertreatment Temperature Sensor | Cummins |
| 4384561 | Aftertreatment Temperature Sensor | Cummins |
| 4384562 | Aftertreatment Temperature Sensor | Cummins |
| 4384563 | Aftertreatment Temperature Sensor | Cummins |
| 4384564 | Aftertreatment Temperature Sensor | Cummins |
| 4384565 | Aftertreatment Temperature Sensor | Cummins |
| 4384566 | Aftertreatment Temperature Sensor | Cummins |
| 4384567 | Aftertreatment Temperature Sensor | Cummins |
| 4384568 | Aftertreatment Temperature Sensor | Cummins |
| 4384569 | Aftertreatment Temperature Sensor | Cummins |
| 4384570 | Aftertreatment Temperature Sensor | Cummins |
| 4384571 | Aftertreatment Temperature Sensor | Cummins |
| 4384572 | Aftertreatment Temperature Sensor | Cummins |
| 4384573 | Aftertreatment Temperature Sensor | Cummins |
| 4384574 | Aftertreatment Temperature Sensor | Cummins |
| 4384575 | Aftertreatment Temperature Sensor | Cummins |
| 4384576 | Aftertreatment Temperature Sensor | Cummins |
| 4384577 | Aftertreatment Temperature Sensor | Cummins |
| 4384578 | Aftertreatment Temperature Sensor | Cummins |
| 4384579 | Aftertreatment Temperature Sensor | Cummins |
| 4384580 | Aftertreatment Temperature Sensor | Cummins |
| 5594132 | Aftertreatment Temperature Sensor | Cummins |
| 5594679 | Aftertreatment Temperature Sensor | Cummins |
| 5654165 | Aftertreatment Temperature Sensor | Cummins |
| 5654166 | Aftertreatment Temperature Sensor | Cummins |
| 5654167 | Aftertreatment Temperature Sensor | Cummins |
| 5654168 | Aftertreatment Temperature Sensor | Cummins |
| 5654169 | Aftertreatment Temperature Sensor | Cummins |
| 5654170 | Aftertreatment Temperature Sensor | Cummins |
| 5654171 | Aftertreatment Temperature Sensor | Cummins |
| 5654172 | Aftertreatment Temperature Sensor | Cummins |
| 5654173 | Aftertreatment Temperature Sensor | Cummins |
| 5654174 | Aftertreatment Temperature Sensor | Cummins |
| 5654175 | Aftertreatment Temperature Sensor | Cummins |
| 5654176 | Aftertreatment Temperature Sensor | Cummins |
| 5654177 | Aftertreatment Temperature Sensor | Cummins |
| 5654178 | Aftertreatment Temperature Sensor | Cummins |
| 5654179 | Aftertreatment Temperature Sensor | Cummins |
| 5654180 | Aftertreatment Temperature Sensor | Cummins |
| 5654181 | Aftertreatment Temperature Sensor | Cummins |
| 5654182 | Aftertreatment Temperature Sensor | Cummins |
| 5654183 | Aftertreatment Temperature Sensor | Cummins |
| 5698545 | Aftertreatment Temperature Sensor | Cummins |
| 5698546 | Aftertreatment Temperature Sensor | Cummins |
| 5698548 | Aftertreatment Temperature Sensor | Cummins |
| 5698551 | Aftertreatment Temperature Sensor | Cummins |
| 5698557 | Aftertreatment Temperature Sensor | Cummins |
| 5698559 | Aftertreatment Temperature Sensor | Cummins |
| 4354149 | Ammonia Slip Catalyst | Cummins |
| 5512583 | Ammonia Slip Catalyst | Cummins |
| 5698453 | Barometric Pressure Sensor | Cummins |
| 2897331 | Barometric Pressure Sensor 2;Barometric Pressure Sensor | Cummins |
| 4307110 | Compressor Inlet Temperature | Cummins |
| 2897334 | Compressor Outlet Pressure Sensor;Comp out pressure sensor | Cummins |
| 5698456 | Compressor Outlet Pressure Sensor;BarometricPressureSensor;Comp out pressure sensor | Cummins |
| 4954905 | Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor | Cummins |
| 5511172 | DEF Doser | Cummins |
| 4354144 | Diesel Oxidation Catalyst | Cummins |
| 5512586 | Diesel Oxidation Catalyst | Cummins |
| 4354146 | Diesel Particulate Filter | Cummins |
| 5512162 | Diesel Particulate Filter | Cummins |
| 2871960 | Diesel Particulate Filter Pressure | Cummins |
| 5492073 | Diesel Particulate Filter Pressure | Cummins |
| 5509448 | Doser Pump | Cummins |
| 3691818 | EGR Cooler | Cummins |
| 3693370 | EGR Cooler | Cummins |
| 5486674 | EGR Cooler | Cummins |
| 5679607 | EGR Cooler | Cummins |
| 4928594 | Exhaust Manifold Pressure;EGR Orifice Pressure Sensor;EGR pressure sensor | Cummins |
| 2872140 | EGR Out Temperature Sensor | Cummins |
| 5461596 | EGR Out Temperature Sensor | Cummins |
| 4336675 | EGR Valve | Cummins |
| 5411635 | EGR Valve | Cummins |
| 2872277 | Camshaft Position Sensor;Engine Crankshaft;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 5594276 | Engine Crankshaft;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 4384412 | Engine Control Module | Cummins |
| 5572391 | Engine Control Module | Cummins |
| 6316221 | Engine Control Module | Cummins |
| 6316224 | Engine Control Module | Cummins |
| 6393601 | Engine Control Module | Cummins |
| 6449953 | Engine Control Module | Cummins |
| 2872279 | Crankshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft Position Sensor;Engine Crankshaft | Cummins |
| 5594275 | Engine Crankshaft;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft | Cummins |
| 3687930 | Engine Out NOx Sensor | Cummins |
| 3687960 | Engine Out NOx Sensor | Cummins |
| 5679700 | Engine Out NOx Sensor | Cummins |
| 6304160 | Engine Out NOx Sensor | Cummins |
| 4307166 | Exhaust Gas Recirculation Pressure | Cummins |
| 4358939 | Exhaust Gas Recirculation Pressure | Cummins |
| 4984575 | Exhaust Gas Recirculation Pressure | Cummins |
| 6419885 | Exhaust Gas Recirculation Pressure | Cummins |
| 3683870 | Exhaust Manifold Pressure | Cummins |
| 3685999 | Exhaust Manifold Pressure | Cummins |
| 3692604 | Exhaust Manifold Pressure | Cummins |
| 5491909 | Exhaust Pressure Sensor;EMP Sensor;Exhaust Manifold sensor | Cummins |
| 4384387 | Fuel Injection Pump | Cummins |
| 5572108 | Fuel Injection Pump | Cummins |
| 5594313 | Fuel Injection Pump | Cummins |
| 5594625 | Fuel Injection Pump | Cummins |
| 5594630 | Fuel Injection Pump | Cummins |
| 4327147 | Fuel Injector | Cummins |
| 4384365 | Fuel Injector | Cummins |
| 4384781 | Fuel Injector | Cummins |
| 2897581 | Fuel Pressure | Cummins |
| 4326869 | Tailpipe NOx Sensor | Cummins |
| 4326871 | NOx Sensor Selective Catalytic Reduction | Cummins |
| 4326872¿ | NOx Sensor Selective Catalytic Reduction | Cummins |
| 4326874 | Tailpipe NOx Sensor | Cummins |
| 4384740 | NOx Sensor Selective Catalytic Reduction | Cummins |
| 5593955 | NOx Sensor Selective Catalytic Reduction | Cummins |
| 5461550 | PM Sensor | Cummins |
| 5461551 | PM Sensor | Cummins |
| 5461552 | PM Sensor | Cummins |
| 5461553 | PM Sensor | Cummins |
| 5461554 | PM Sensor | Cummins |
| 5461555 | PM Sensor | Cummins |
| 5461556 | PM Sensor | Cummins |
| 5461557 | PM Sensor | Cummins |
| 5351565 | Turbocharger | Cummins |
| 5351566 | Turbocharger | Cummins |
| 5352144 | Turbocharger | Cummins |
| 5352145 | Turbocharger | Cummins |
| 5358483 | Turbocharger | Cummins |
| 5358484 | Turbocharger | Cummins |
| 5454982 | Turbocharger | Cummins |
| 5454983 | Turbocharger | Cummins |
| 5550895 | Turbocharger | Cummins |
| 6317897 | Turbocharger | Cummins |
| 6454199 | Turbocharger | Cummins |
| 6463612 | Turbocharger | Cummins |
| 6467772 | Turbocharger | Cummins |
| 5353726 | Turbocharger Speed Sensor | Cummins |
| 5491609 | Turbocharger Speed Sensor | Cummins |
| 5654213 | Turbocharger Speed Sensor | Cummins |
| 5677775 | Turbocharger Speed Sensor | Cummins |
Quelle: EPA HD Engines 2015–Present
