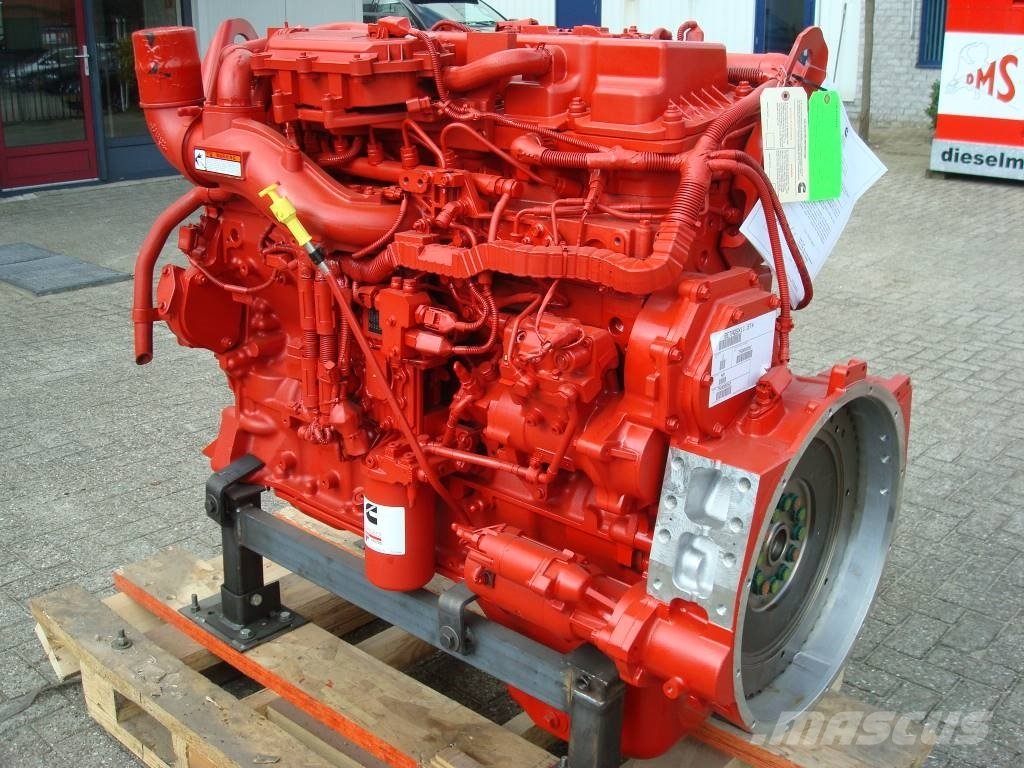

Cummins QSX11.9

Built: 2015-2015 · Series: Other models

Source: https://www.mascus.co.uk/agriculture/engines/cummins-qsx11-9

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The QSX11.9 comes from Cummins. Production: 2015. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 280 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a variable-geometry turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Cummins range ranges from 46 to 3,245 kW; the QSX11.9 sits at the bottom of that range with 280 kW. Its immediate neighbours are the ISV5.0 275 below it with 275 kW and the ISL9 300 above it with 285 kW. 517 Cummins models across 3 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine code3597; 20336correct
Engine familyFCEXL11.9AAAcorrect
Engine familiesFCEXL11.9AAAcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output280 kWcorrect
Power band130<=kW<=560correct
Rated speed1,900 rpmcorrect
Maximum torque1,830 N·mcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Cylinder layoutin linecorrect
Bore130 mmcorrect
Stroke150 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typeVariable Geometry Turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version3597; 20336correct
Built from2015correct
Built to2015correct
Model year from2015correct
Model year to2015correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Cummins QSX11.9 have?

The Cummins QSX11.9 delivers 280 kW.

When was the Cummins QSX11.9 built?

Production years: 2015.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
