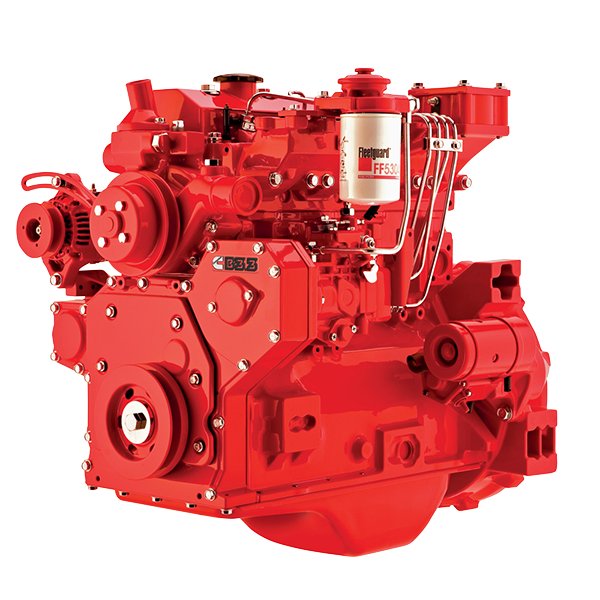

Cummins B3.3

Built: 2012-2015 · Series: Other models

Source: https://www.cummins.com/en-na/engines/products/b33-tier-2 c

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Cummins B3.3 is a machine built by Cummins. Production: 2012-2015. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 48 kW. The engine is turbocharged. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through indirect injection. The charge air is air-cooled. Charging is by a fixed-geometry turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Cummins range ranges from 46 to 3,245 kW; the B3.3 sits at the bottom of that range with 48 kW. Its immediate neighbours are the 4BT3.3G4 below it with 46 kW and the 4BT3.3G5 above it with 51 kW. 517 Cummins models across 3 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine codeFR92395correct
Engine familyCCEXL03.3ACDcorrect
Engine familiesCCEXL03.3ACEcorrect
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output48 kWcorrect
Power band37<=kW<56correct
Rated speed2,200 rpmcorrect
Maximum torque232 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore95 mmcorrect
Stroke115 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectionindirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typeFixed Turbochargercorrect
Charge-air coolingaircorrect
Emissions stageInterim Tier 4correct

Origin and approval

VersionFR92395correct
Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2015correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Cummins B3.3 have?

The Cummins B3.3 delivers 48 kW.

When was the Cummins B3.3 built?

Production years: 2012-2015.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 27 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
