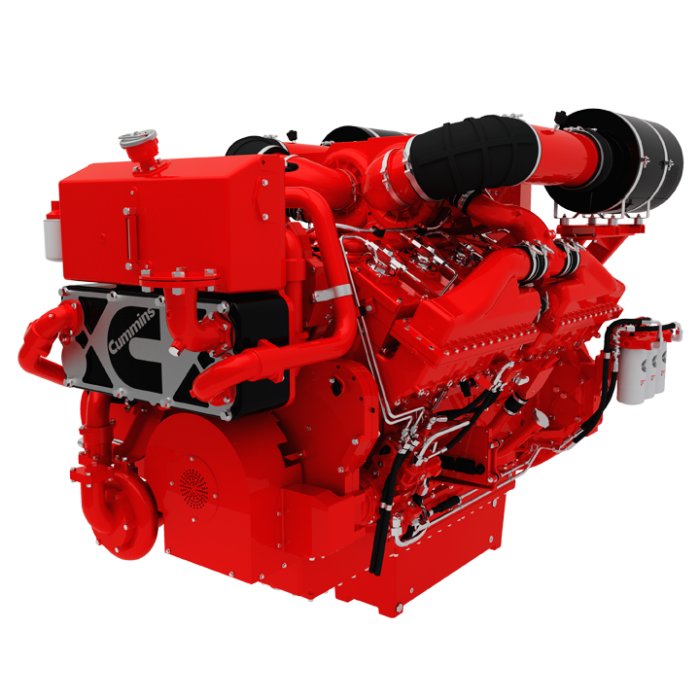

Cummins QSK38-G2

Built: 2012-2023 · Series: Other models

Source: https://www.cummins.com/engines/qsk38

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Cummins QSK38-G2 is a machine built by Cummins. Production: 2012-2023. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 1,098 kW. The engine is turbocharged. The engine meets emissions stage Tier 2. Fuel reaches the combustion chamber through direct injection. The charge air is cooled by air or coolant. Charging is by a turbocharger without wastegate. It is a four-stroke diesel engine. The cylinders are arranged in a V. Rated output across the Cummins range ranges from 46 to 3,245 kW; the QSK38-G2 sits in the lower part of that range with 1,098 kW. Its immediate neighbours are the QSK38 below it with 1,007 kW and the QSK50-DR above it with 1,104 kW. 517 Cummins models across 3 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine code3268:FR6700correct
Engine familyKCEXL050.AADcorrect
Engine familiesCCEXL050.AADcorrect
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output1,098 kWcorrect
Power band560<kW<=2237correct
Rated speed1,500 rpmcorrect
Maximum torque6,990 N·mcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders12correct
Cylinder layoutV layoutcorrect
Bore159 mmcorrect
Stroke159 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typeNon Waste Gate Turbochargercorrect
Charge-air coolingbothcorrect
Emissions stageTier 2correct

Origin and approval

Version3268:FR6700correct
Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2023correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Cummins QSK38-G2 have?

The Cummins QSK38-G2 delivers 1,098 kW.

When was the Cummins QSK38-G2 built?

Production years: 2012-2023.
