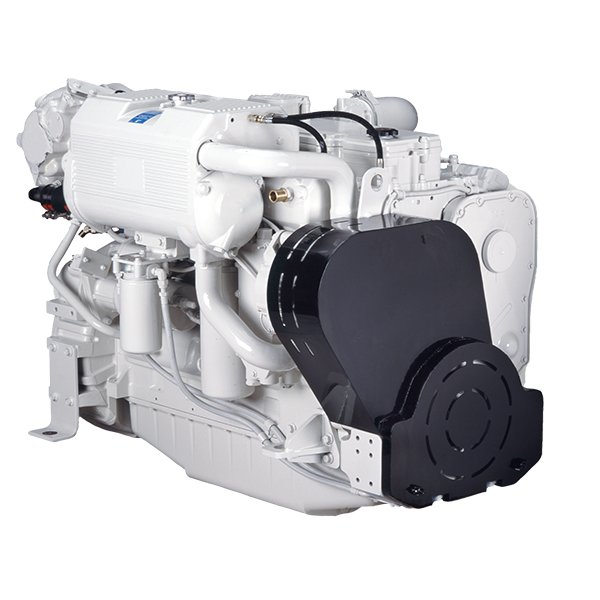

Cummins QSC
Built: 2012-2024 · Series: Other models
The Cummins QSC is a machine built by Cummins. Production: 2012-2024. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 205 kW. The engine is turbocharged. The engine meets emissions stage Tier 3. Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Cummins range ranges from 46 to 3,245 kW; the QSC sits at the bottom of that range with 205 kW. Its immediate neighbours are the ISV5.0 200 below it with 200 kW and the QSL8.9G above it with 213 kW. 517 Cummins models across 3 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.
Technical data
Engine
| Engine code | 8639:FR92838correct |
|---|---|
| Engine family | CCEXL0505AAEcorrect |
| Engine families | PCEXL0505AAE; FCEXL0505AAE; RCEXL0505AAE; LCEXL0505AAE; HCEXL0505AAE; ECEXL0505AAE; CCEXL0505AAE; DCEXL0505AAE; JCEXL0505AAE; GCEXL0505AAE; MCEXL0505AAE; KCEXL0505AAE; NCEXL0505AAEcorrect |
| Fuel | 300-500 ppm Low Sulfur Dieselcorrect |
| Rated output | 205 kWcorrect |
| Power band | 225<=kW<450correct |
| Rated speed | 2,200 rpmcorrect |
| Maximum torque | 1,215 N·mcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Cylinder layout | in linecorrect |
| Bore | 114 mmcorrect |
| Stroke | 135 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 3correct |
Origin and approval
| Version | 8639:FR92838correct |
|---|---|
| Built from | 2012correct |
| Built to | 2024correct |
| Model year from | 2012correct |
| Model year to | 2024correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Cummins QSC have?
The Cummins QSC delivers 205 kW.
When was the Cummins QSC built?
Production years: 2012-2024.
