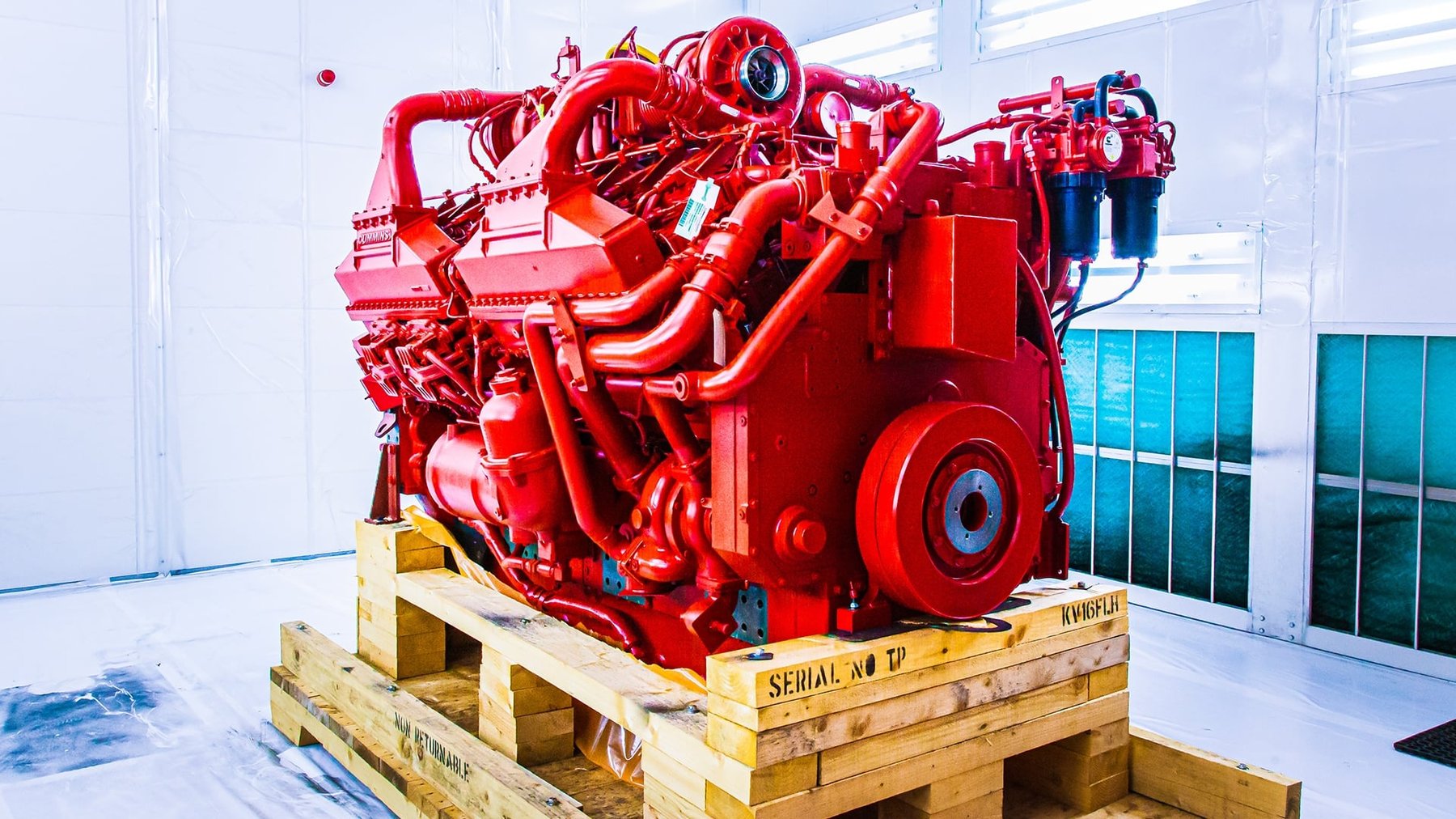

Cummins PX-9 370EV
Built: 2017-2026 · Series: PX-9
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The PX-9 series from Cummins includes the PX-9 370EV. Production: 2017-2026. The engine with a displacement of 8,900 cm³. The fuel is 7-15 ppm ultra low sulfur diesel. The rated output is 370 hp. Application: Vocational. The engine is turbocharged. It is a diesel engine. The PX-9 series covers 22 models. Rated output within it ranges from 260 to 450 kW; the PX-9 370EV sits in the middle of that range with 370 kW. Its immediate neighbours are the PX-9 370H below it with 365 kW and the PX-9 380 above it with 380 kW. 517 Cummins models across 22 series are on record.
PACCAR PX-9 — Cummins-Built 8.9-Liter Platform for Kenworth and Peterbilt
The PX-9 is an inline six-cylinder diesel displacing 8.9 liters (SpecCodex data: 19 recorded models, consistently 8,900 cm³). The lineup spans roughly 260 to 380 hp with up to 1,250 lb-ft of torque and serves medium- to heavy-duty highway trucks.
Read on 3 more paragraphs
Although it carries the PACCAR nameplate, the engine is actually manufactured by Cummins: in 2006 the two companies agreed that Cummins would build the 6- and 8-liter engines exclusively for Kenworth and Peterbilt, badged as PACCAR units. The PX-9 shares its basic block with the Cummins ISC/ISL but uses a longer stroke to reach its larger displacement.
It is fitted mainly to the Kenworth T270, T370, T440, T470 and the W900S — vocational and regional-haul trucks where maneuverability and payload matter more than maximum highway range.
On used units, check for a complete emissions-system service record (EGR/SCR), since engines of this class in the US highway segment are known to be sensitive to neglected oil-change and filter intervals.
Sources: Kennwerte der Modelle PX-9, - SlashGear: Are Paccar Diesel Engines Made By Cummins?, - Kenworth: PACCAR PX-7 and PX-9 Engine Brochures, - Heavy Equipment Guide: PACCAR PX-9 Diesel Engines
Technical data
Engine
| Engine code | LME4correct |
|---|---|
| Engine family | TCEXH0540LCDcorrect |
| Engine families | GCEXH0540LAVcorrect |
| Fuel | 7-15 ppm ultra low sulfur dieselcorrect |
| Rated output | 370 hpcorrect |
| Rated speed | 2,100 rpmcorrect |
| Maximum torque | 1,250 ft·lbfcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Displacement | 8,900 cm³correct |
| Displacement | 8.9 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | LME4correct |
|---|---|
| Built from | 2016correct |
| Built to | 2016correct |
| Model year from | 2016correct |
| Model year to | 2026correct |
| Sales region | USA certificationcorrect |
Other data
| Anwendungsbereich | Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Cummins PX-9 370EV have?
The Cummins PX-9 370EV delivers 370 kW.
What engine does the Cummins PX-9 370EV have?
8,900 cm³ displacement, 7-15 ppm ultra low sulfur diesel.
When was the Cummins PX-9 370EV built?
Production years: 2017-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
PX-9 260
PX-9 270
PX-9 270EV
PX-9 300
PX-9 300EV
PX-9 330
PX-9 330EV
PX-9 345
PX-9 345EV
PX-9 350
PX-9 350EV
PX-9 360
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Parts for this engine (137)
Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.
| Teilenummer | Bezeichnung | Hersteller |
|---|---|---|
| 4384561 | Aftertreatment Temperature Sensor | Cummins |
| 4384562 | Aftertreatment Temperature Sensor | Cummins |
| 4384563 | Aftertreatment Temperature Sensor | Cummins |
| 4384564 | Aftertreatment Temperature Sensor | Cummins |
| 4384565 | Aftertreatment Temperature Sensor | Cummins |
| 4384566 | Aftertreatment Temperature Sensor | Cummins |
| 4384567 | Aftertreatment Temperature Sensor | Cummins |
| 4384568 | Aftertreatment Temperature Sensor | Cummins |
| 4384569 | Aftertreatment Temperature Sensor | Cummins |
| 4384570 | Aftertreatment Temperature Sensor | Cummins |
| 4384571 | Aftertreatment Temperature Sensor | Cummins |
| 4384572 | Aftertreatment Temperature Sensor | Cummins |
| 4384573 | Aftertreatment Temperature Sensor | Cummins |
| 4384574 | Aftertreatment Temperature Sensor | Cummins |
| 4384575 | Aftertreatment Temperature Sensor | Cummins |
| 4384576 | Aftertreatment Temperature Sensor | Cummins |
| 4384577 | Aftertreatment Temperature Sensor | Cummins |
| 4384578 | Aftertreatment Temperature Sensor | Cummins |
| 4384579 | Aftertreatment Temperature Sensor | Cummins |
| 4384580 | Aftertreatment Temperature Sensor | Cummins |
| 5594132 | Aftertreatment Temperature Sensor | Cummins |
| 5594679 | Aftertreatment Temperature Sensor | Cummins |
| 5654165 | Aftertreatment Temperature Sensor | Cummins |
| 5654166 | Aftertreatment Temperature Sensor | Cummins |
| 5654167 | Aftertreatment Temperature Sensor | Cummins |
| 5654168 | Aftertreatment Temperature Sensor | Cummins |
| 5654169 | Aftertreatment Temperature Sensor | Cummins |
| 5654170 | Aftertreatment Temperature Sensor | Cummins |
| 5654171 | Aftertreatment Temperature Sensor | Cummins |
| 5654172 | Aftertreatment Temperature Sensor | Cummins |
| 5654173 | Aftertreatment Temperature Sensor | Cummins |
| 5654174 | Aftertreatment Temperature Sensor | Cummins |
| 5654175 | Aftertreatment Temperature Sensor | Cummins |
| 5654176 | Aftertreatment Temperature Sensor | Cummins |
| 5654177 | Aftertreatment Temperature Sensor | Cummins |
| 5654178 | Aftertreatment Temperature Sensor | Cummins |
| 5654179 | Aftertreatment Temperature Sensor | Cummins |
| 5654180 | Aftertreatment Temperature Sensor | Cummins |
| 5654181 | Aftertreatment Temperature Sensor | Cummins |
| 5654182 | Aftertreatment Temperature Sensor | Cummins |
| 5654183 | Aftertreatment Temperature Sensor | Cummins |
| 5698543 | Aftertreatment Temperature Sensor | Cummins |
| 5698544 | Aftertreatment Temperature Sensor | Cummins |
| 5698545 | Aftertreatment Temperature Sensor | Cummins |
| 5698546 | Aftertreatment Temperature Sensor | Cummins |
| 5698547 | Aftertreatment Temperature Sensor | Cummins |
| 5698548 | Aftertreatment Temperature Sensor | Cummins |
| 5698549 | Aftertreatment Temperature Sensor | Cummins |
| 5698550 | Aftertreatment Temperature Sensor | Cummins |
| 5698551 | Aftertreatment Temperature Sensor | Cummins |
| 5698552 | Aftertreatment Temperature Sensor | Cummins |
| 5698553 | Aftertreatment Temperature Sensor | Cummins |
| 5698554 | Aftertreatment Temperature Sensor | Cummins |
| 5698555 | Aftertreatment Temperature Sensor | Cummins |
| 5698556 | Aftertreatment Temperature Sensor | Cummins |
| 5698557 | Aftertreatment Temperature Sensor | Cummins |
| 5698558 | Aftertreatment Temperature Sensor | Cummins |
| 5698559 | Aftertreatment Temperature Sensor | Cummins |
| 5698560 | Aftertreatment Temperature Sensor | Cummins |
| 5698561 | Aftertreatment Temperature Sensor | Cummins |
| 4354162 | Ammonia Slip Catalyst | Cummins |
| 5698454 | Compressor Inlet Combo Sensor;Compressor Inlet Temp/Pres Sensor (TBAP) | Cummins |
| 2897332 | Compressor Inlet Temperature | Cummins |
| 2897334 | Compressor Outlet Pressure Sensor;Comp out pressure sensor | Cummins |
| 5698456 | Compressor Outlet Pressure Sensor;BarometricPressureSensor;Comp out pressure sensor | Cummins |
| 4954905 | Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor | Cummins |
| 4354153 | Diesel Oxidation Catalyst | Cummins |
| 4388221 | Diesel Particulate Filter | Cummins |
| 2871960 | Diesel Particulate Filter Pressure | Cummins |
| 5492073 | Diesel Particulate Filter Pressure | Cummins |
| 5297551 | EGR Cooler | Cummins |
| 5529388 | EGR Cooler | Cummins |
| 4928594 | Exhaust Manifold Pressure;EGR Orifice Pressure Sensor;EGR pressure sensor | Cummins |
| 5271583 | EGR Valve | Cummins |
| 5480810 | EGR Valve | Cummins |
| 5483010 | EGR Valve | Cummins |
| 2872277 | Camshaft Position Sensor;Engine Crankshaft;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 5594276 | Engine Crankshaft;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 4384413 | Engine Control Module | Cummins |
| 5572390 | Engine Control Module | Cummins |
| 6393601 | Engine Control Module | Cummins |
| 2872279 | Crankshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft Position Sensor;Engine Crankshaft | Cummins |
| 5594275 | Engine Crankshaft;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft | Cummins |
| 5698480 | Engine Out NOx Sensor;Tailpipe NOx Sensor;Engine Out NOx Sensor;Engine Out NOx Sensor;Tailpipe NOx Sensor | Cummins |
| 6304163 | Engine Out NOx Sensor | Cummins |
| 4326873 | Engine Out NOx Sensor 1;Engine Out NOx Sensor | Cummins |
| 2872858 | EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR Out Temperature Sensor;EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR temp sensor | Cummins |
| 4307166 | Exhaust Gas Recirculation Pressure | Cummins |
| 4384138 | Exhaust Gas Recirculation Pressure | Cummins |
| 6419882 | Exhaust Gas Recirculation Pressure | Cummins |
| 4932115 | Exhaust Manifold Pressure | Cummins |
| 4936789 | Exhaust Manifold Pressure | Cummins |
| 4938774 | Exhaust Manifold Pressure | Cummins |
| 4947529 | Exhaust Manifold Pressure | Cummins |
| 4992857 | Exhaust Manifold Pressure | Cummins |
| 4307021 | Fuel Injection Pump | Cummins |
| 4384224 | Fuel Injection Pump | Cummins |
| 5491997 | Fuel Injection Pump | Cummins |
| 5594422 | Fuel Injection Pump | Cummins |
| 2872331 | Fuel Injector | Cummins |
| 5491597 | Fuel Injector | Cummins |
| 5491633 | Fuel Injector | Cummins |
| 2897581 | Fuel Pressure | Cummins |
| 4326861 | Tailpipe NOx Sensor | Cummins |
| 4326864 | Tailpipe NOx Sensor | Cummins |
| 4326867 | Engine Out NOx Sensor | Cummins |
| 4326868 | Tailpipe NOx Sensor | Cummins |
| 4326869 | Tailpipe NOx Sensor | Cummins |
| 4326872¿ | NOx Sensor Selective Catalytic Reduction | Cummins |
| 4326874 | Tailpipe NOx Sensor | Cummins |
| 5491693 | Oil Pressure Sensor;Oil pressure sensor | Cummins |
| 3796002 | Turbocharger | Cummins |
| 5327341 | Turbocharger | Cummins |
| 5328076 | Turbocharger | Cummins |
| 5350996 | Turbocharger | Cummins |
| 5501323 | Turbocharger | Cummins |
| 5501325 | Turbocharger | Cummins |
| 5501328 | Turbocharger | Cummins |
| 5604718 | Turbocharger | Cummins |
| 5606182 | Turbocharger | Cummins |
| 5606183 | Turbocharger | Cummins |
| 5606184 | Turbocharger | Cummins |
| 5640318 | Turbocharger | Cummins |
| 5640319 | Turbocharger | Cummins |
| 5640320 | Turbocharger | Cummins |
| 5640477 | Turbocharger | Cummins |
| 5640479 | Turbocharger | Cummins |
| 5640482 | Turbocharger | Cummins |
| 5640709 | Turbocharger | Cummins |
| 6324386 | Turbocharger | Cummins |
| 6500032 | Turbocharger | Cummins |
| 6501064 | Turbocharger | Cummins |
| 6501065 | Turbocharger | Cummins |
| 6536500 | Turbocharger | Cummins |
| 6613800 | Turbocharger | Cummins |
| 6613859 | Turbocharger | Cummins |
| 6614414 | Turbocharger | Cummins |
Quelle: EPA HD Engines 2015–Present
