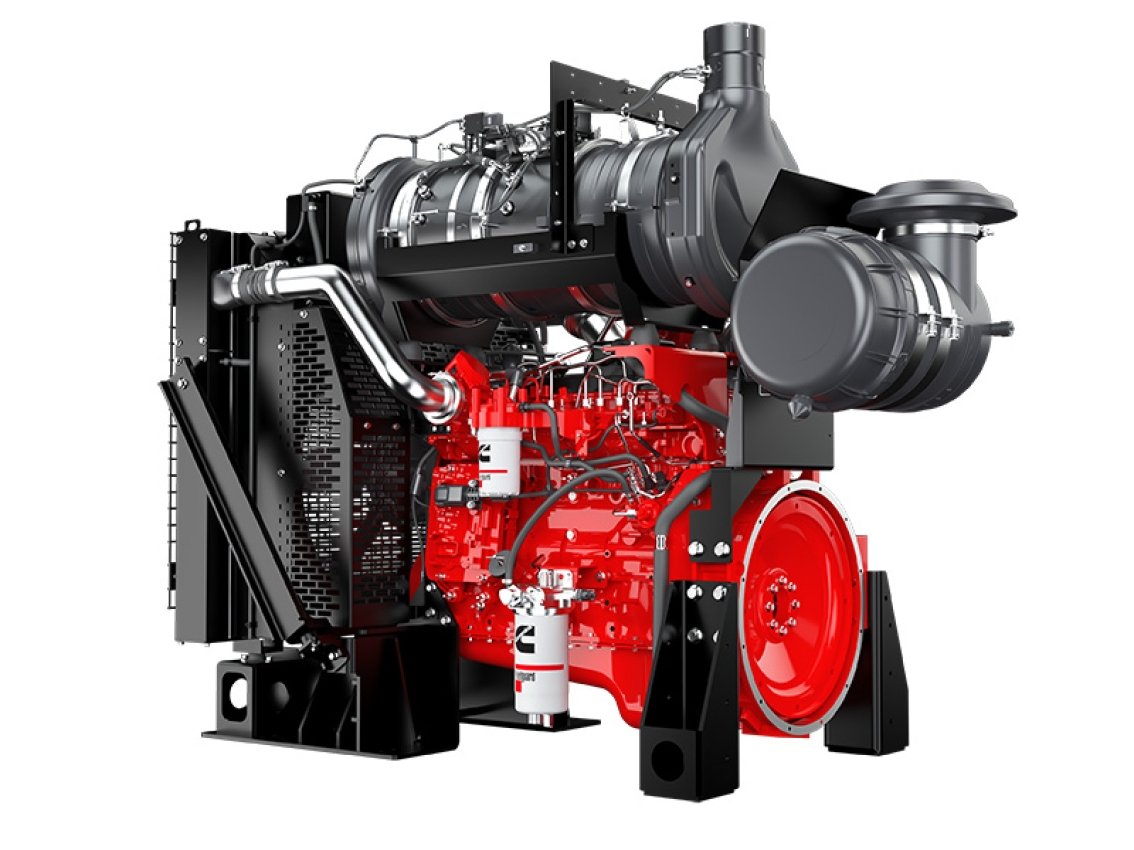

Cummins PX-9 380
Built: 2017-2026 · Series: PX-9
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The PX-9 380 comes from Cummins. Production: 2017-2026. The fuel is 7-15 ppm ultra low sulfur diesel. The rated output is 380 hp. The engine is turbocharged. It is a diesel engine. Rated output across the Cummins range ranges from 46 to 3,245 kW; the PX-9 380 sits at the bottom of that range with 380 kW. Its immediate neighbours are the ISX12 385R below it with 379 kW and the ISX15 425 above it with 384 kW. 517 Cummins models across 3 series are on record. The model is listed under Heavy-duty on-road engines. 21 verified figures from 3 sources are on file.
Technical data
Engine
| Engine code | LM3correct |
|---|---|
| Engine family | TCEXH0540LCAcorrect |
| Engine families | ECEXH0540LAVcorrect |
| Fuel | 7-15 ppm ultra low sulfur dieselcorrect |
| Rated output | 380 hpcorrect |
| Rated speed | 2,100 rpmcorrect |
| Maximum torque | 1,250 ft·lbfcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Displacement | 8.9 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | LM3correct |
|---|---|
| Built from | 2014correct |
| Built to | 2014correct |
| Model year from | 2014correct |
| Model year to | 2026correct |
| Sales region | USA certificationcorrect |
Other data
| Anwendungsbereich | Both Tractor and Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Cummins PX-9 380 have?
The Cummins PX-9 380 delivers 380 kW.
When was the Cummins PX-9 380 built?
Production years: 2017-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
PX-9 260
PX-9 270
PX-9 270EV
PX-9 300
PX-9 300EV
PX-9 330
PX-9 330EV
PX-9 345
PX-9 345EV
PX-9 350
PX-9 350EV
PX-9 360
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Teile zu diesem Motor (138)
Teilenummern des Herstellers aus der amtlichen EPA-Dokumentation. Ohne Preis und Verfügbarkeit — die kommen vom Lieferanten.
| Teilenummer | Bezeichnung | Hersteller |
|---|---|---|
| 4384561 | Aftertreatment Temperature Sensor | Cummins |
| 4384562 | Aftertreatment Temperature Sensor | Cummins |
| 4384563 | Aftertreatment Temperature Sensor | Cummins |
| 4384564 | Aftertreatment Temperature Sensor | Cummins |
| 4384565 | Aftertreatment Temperature Sensor | Cummins |
| 4384566 | Aftertreatment Temperature Sensor | Cummins |
| 4384567 | Aftertreatment Temperature Sensor | Cummins |
| 4384568 | Aftertreatment Temperature Sensor | Cummins |
| 4384569 | Aftertreatment Temperature Sensor | Cummins |
| 4384570 | Aftertreatment Temperature Sensor | Cummins |
| 4384571 | Aftertreatment Temperature Sensor | Cummins |
| 4384572 | Aftertreatment Temperature Sensor | Cummins |
| 4384573 | Aftertreatment Temperature Sensor | Cummins |
| 4384574 | Aftertreatment Temperature Sensor | Cummins |
| 4384575 | Aftertreatment Temperature Sensor | Cummins |
| 4384576 | Aftertreatment Temperature Sensor | Cummins |
| 4384577 | Aftertreatment Temperature Sensor | Cummins |
| 4384578 | Aftertreatment Temperature Sensor | Cummins |
| 4384579 | Aftertreatment Temperature Sensor | Cummins |
| 4384580 | Aftertreatment Temperature Sensor | Cummins |
| 5594132 | Aftertreatment Temperature Sensor | Cummins |
| 5594679 | Aftertreatment Temperature Sensor | Cummins |
| 5654165 | Aftertreatment Temperature Sensor | Cummins |
| 5654166 | Aftertreatment Temperature Sensor | Cummins |
| 5654167 | Aftertreatment Temperature Sensor | Cummins |
| 5654168 | Aftertreatment Temperature Sensor | Cummins |
| 5654169 | Aftertreatment Temperature Sensor | Cummins |
| 5654170 | Aftertreatment Temperature Sensor | Cummins |
| 5654171 | Aftertreatment Temperature Sensor | Cummins |
| 5654172 | Aftertreatment Temperature Sensor | Cummins |
| 5654173 | Aftertreatment Temperature Sensor | Cummins |
| 5654174 | Aftertreatment Temperature Sensor | Cummins |
| 5654175 | Aftertreatment Temperature Sensor | Cummins |
| 5654176 | Aftertreatment Temperature Sensor | Cummins |
| 5654177 | Aftertreatment Temperature Sensor | Cummins |
| 5654178 | Aftertreatment Temperature Sensor | Cummins |
| 5654179 | Aftertreatment Temperature Sensor | Cummins |
| 5654180 | Aftertreatment Temperature Sensor | Cummins |
| 5654181 | Aftertreatment Temperature Sensor | Cummins |
| 5654182 | Aftertreatment Temperature Sensor | Cummins |
| 5654183 | Aftertreatment Temperature Sensor | Cummins |
| 5698543 | Aftertreatment Temperature Sensor | Cummins |
| 5698544 | Aftertreatment Temperature Sensor | Cummins |
| 5698545 | Aftertreatment Temperature Sensor | Cummins |
| 5698546 | Aftertreatment Temperature Sensor | Cummins |
| 5698547 | Aftertreatment Temperature Sensor | Cummins |
| 5698548 | Aftertreatment Temperature Sensor | Cummins |
| 5698549 | Aftertreatment Temperature Sensor | Cummins |
| 5698550 | Aftertreatment Temperature Sensor | Cummins |
| 5698551 | Aftertreatment Temperature Sensor | Cummins |
| 5698552 | Aftertreatment Temperature Sensor | Cummins |
| 5698553 | Aftertreatment Temperature Sensor | Cummins |
| 5698554 | Aftertreatment Temperature Sensor | Cummins |
| 5698555 | Aftertreatment Temperature Sensor | Cummins |
| 5698556 | Aftertreatment Temperature Sensor | Cummins |
| 5698557 | Aftertreatment Temperature Sensor | Cummins |
| 5698558.036 | Aftertreatment Temperature Sensor | Cummins |
| 5698558.077 | Aftertreatment Temperature Sensor | Cummins |
| 5698559 | Aftertreatment Temperature Sensor | Cummins |
| 5698560 | Aftertreatment Temperature Sensor | Cummins |
| 5698561 | Aftertreatment Temperature Sensor | Cummins |
| 4354162 | Ammonia Slip Catalyst | Cummins |
| 5698454 | Compressor Inlet Combo Sensor;Compressor Inlet Temp/Pres Sensor (TBAP) | Cummins |
| 2897332 | Compressor Inlet Temperature | Cummins |
| 2897334 | Compressor Outlet Pressure Sensor;Comp out pressure sensor | Cummins |
| 5698456 | Compressor Outlet Pressure Sensor;BarometricPressureSensor;Comp out pressure sensor | Cummins |
| 4954905 | Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor | Cummins |
| 4354153 | Diesel Oxidation Catalyst | Cummins |
| 4388221 | Diesel Particulate Filter | Cummins |
| 2871960 | Diesel Particulate Filter Pressure | Cummins |
| 5492073 | Diesel Particulate Filter Pressure | Cummins |
| 5297551 | EGR Cooler | Cummins |
| 5529388 | EGR Cooler | Cummins |
| 4928594 | Exhaust Manifold Pressure;EGR Orifice Pressure Sensor;EGR pressure sensor | Cummins |
| 5271583 | EGR Valve | Cummins |
| 5480810 | EGR Valve | Cummins |
| 5483010 | EGR Valve | Cummins |
| 2872277 | Camshaft Position Sensor;Engine Crankshaft;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 5594276 | Engine Crankshaft;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 4384413 | Engine Control Module | Cummins |
| 5572390 | Engine Control Module | Cummins |
| 6393601 | Engine Control Module | Cummins |
| 2872279 | Crankshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft Position Sensor;Engine Crankshaft | Cummins |
| 5594275 | Engine Crankshaft;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft | Cummins |
| 5698480 | Engine Out NOx Sensor;Tailpipe NOx Sensor;Engine Out NOx Sensor;Engine Out NOx Sensor;Tailpipe NOx Sensor | Cummins |
| 6304163 | Engine Out NOx Sensor | Cummins |
| 4326873 | Engine Out NOx Sensor 1;Engine Out NOx Sensor | Cummins |
| 2872858 | EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR Out Temperature Sensor;EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR temp sensor | Cummins |
| 4307166 | Exhaust Gas Recirculation Pressure | Cummins |
| 4384138 | Exhaust Gas Recirculation Pressure | Cummins |
| 6419882 | Exhaust Gas Recirculation Pressure | Cummins |
| 4932115 | Exhaust Manifold Pressure | Cummins |
| 4936789 | Exhaust Manifold Pressure | Cummins |
| 4938774 | Exhaust Manifold Pressure | Cummins |
| 4947529 | Exhaust Manifold Pressure | Cummins |
| 4992857 | Exhaust Manifold Pressure | Cummins |
| 4307021 | Fuel Injection Pump | Cummins |
| 4384224 | Fuel Injection Pump | Cummins |
| 5491997 | Fuel Injection Pump | Cummins |
| 5594422 | Fuel Injection Pump | Cummins |
| 2872331 | Fuel Injector | Cummins |
| 5491597 | Fuel Injector | Cummins |
| 5491633 | Fuel Injector | Cummins |
| 2897581 | Fuel Pressure | Cummins |
| 4326861 | Tailpipe NOx Sensor | Cummins |
| 4326864 | Tailpipe NOx Sensor | Cummins |
| 4326867 | Engine Out NOx Sensor | Cummins |
| 4326868 | Tailpipe NOx Sensor | Cummins |
| 4326869 | Tailpipe NOx Sensor | Cummins |
| 4326872¿ | NOx Sensor Selective Catalytic Reduction | Cummins |
| 4326874 | Tailpipe NOx Sensor | Cummins |
| 5491693 | Oil Pressure Sensor;Oil pressure sensor | Cummins |
| 3796002 | Turbocharger | Cummins |
| 5327341 | Turbocharger | Cummins |
| 5328076 | Turbocharger | Cummins |
| 5350996 | Turbocharger | Cummins |
| 5501323 | Turbocharger | Cummins |
| 5501325 | Turbocharger | Cummins |
| 5501328 | Turbocharger | Cummins |
| 5604718 | Turbocharger | Cummins |
| 5606182 | Turbocharger | Cummins |
| 5606183 | Turbocharger | Cummins |
| 5606184 | Turbocharger | Cummins |
| 5640318 | Turbocharger | Cummins |
| 5640319 | Turbocharger | Cummins |
| 5640320 | Turbocharger | Cummins |
| 5640477 | Turbocharger | Cummins |
| 5640479 | Turbocharger | Cummins |
| 5640482 | Turbocharger | Cummins |
| 5640709 | Turbocharger | Cummins |
| 6324386 | Turbocharger | Cummins |
| 6500032 | Turbocharger | Cummins |
| 6501064 | Turbocharger | Cummins |
| 6501065 | Turbocharger | Cummins |
| 6536500 | Turbocharger | Cummins |
| 6613800 | Turbocharger | Cummins |
| 6613859 | Turbocharger | Cummins |
| 6614414 | Turbocharger | Cummins |
Quelle: EPA HD Engines 2015–Present
