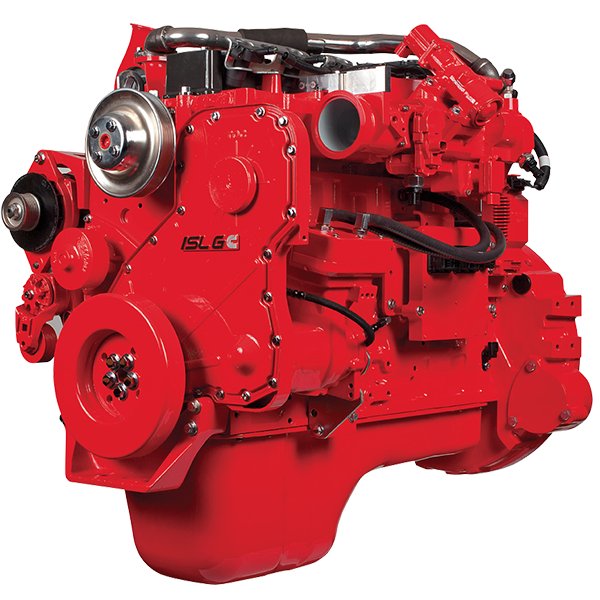

Cummins ISLG
Built: 2016-2017 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Technical data
Engine
| Engine code | 3517; FR93274correct |
|---|---|
| Engine family | HCEXH0540LBFcorrect |
| Engine families | HCEXH0540LBH; GCEXH0540LBHcorrect |
| Fuel | Compressed Natural Gas, Liquefied Natural Gascorrect |
| Rated output | 320 hpcorrect |
| Rated speed | 2,100 rpmcorrect |
| Maximum torque | 1,000 ft·lbfcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Displacement | 8.9 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | throttle-body injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | 3517; FR93274correct |
|---|---|
| Built from | 2016correct |
| Built to | 2017correct |
| Model year from | 2016correct |
| Model year to | 2017correct |
| Sales region | USA certificationcorrect |
Other data
| Anwendungsbereich | Both Tractor and Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Cummins ISLG have?
The Cummins ISLG delivers 320 kW.
When was the Cummins ISLG built?
Production years: 2016-2017.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
B6.7N
B6.7N 200
B6.7N 220
B6.7N 240
ISB 280H
ISB 280HS
ISBG
ISV5.0 200
ISV5.0 220
ISV5.0 250
ISV5.0 275
ISX12310
Sources: [1]
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Teile zu diesem Motor (43)
Teilenummern des Herstellers aus der amtlichen EPA-Dokumentation. Ohne Preis und Verfügbarkeit — die kommen vom Lieferanten.
| Teilenummer | Bezeichnung | Hersteller |
|---|---|---|
| 4921684 | Camshaft Position Sensor | Cummins |
| 4921503 | Compressor Inlet Pressure Sensor | Cummins |
| 4921489 | Compressor Outlet Pressure Sensor;CAC Out Pressure Sensor | Cummins |
| 4088750 | Coolant Temperature Sensor | Cummins |
| 4954905 | Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor | Cummins |
| 4921686 | Crankshaft Position Sensor | Cummins |
| 2897462 | ECM / Motorsteuergerät | Cummins |
| 4359433 | ECM / Motorsteuergerät | Cummins |
| 4934710 | ECM / Motorsteuergerät | Cummins |
| 5347234 | EGR Cooler | Cummins |
| 4088712 | EGR Out Temperature Sensor | Cummins |
| 5258066 | EGR Valve | Cummins |
| 2872277 | Camshaft Position Sensor;Engine Crankshaft;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 2872279 | Crankshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft Position Sensor;Engine Crankshaft | Cummins |
| 4921728 | Exhaust Gas Recirculation Pressure | Cummins |
| 4984929 | Exhaust Gas Recirculation Pressure | Cummins |
| 9999999 | Fuel Injector Pump;Fuel Injection Pump | Cummins |
| 1234567 | Fuel Injector | Cummins |
| 4921479 | Fuel Temp/Press | Cummins |
| 3929935 | Gas Mass Flow Sensor | Cummins |
| 2897508 | Humidity Sensor | Cummins |
| 4062315 | Humidity Sensor | Cummins |
| 4955125 | Humidity Sensor | Cummins |
| 4384340 | Humidity Sensor;Humidity sensor | Cummins |
| 4384346 | Intake Manifold Temperature | Cummins |
| 4921483 | Intake Manifold Temperature | Cummins |
| 4954299 | Oxygen Sensor | Cummins |
| 4954893 | Oxygen Sensor | Cummins |
| 4394752 | Catalyst Element | Cummins |
| 4969762 | Three-Way Catalyst | Cummins |
| 4994948 | Three-Way Catalyst | Cummins |
| 5274559 | Three-Way Catalyst | Cummins |
| 5296522 | Three-Way Catalyst | Cummins |
| 5300525 | Three-Way Catalyst | Cummins |
| 2872261 | Turbine Inlet Temperature Sensor | Cummins |
| 4326884 | Turbine Inlet Temperature Sensor | Cummins |
| 4954658 | Turbine Inlet Temperature Sensor | Cummins |
| 2839643 | Turbocharger | Cummins |
| 2843308 | Turbocharger | Cummins |
| 3794682 | Turbocharger | Cummins |
| 3794767 | Turbocharger | Cummins |
| 4042333 | Turbocharger | Cummins |
| 5351628 | Turbocharger | Cummins |
Quelle: 2012 Model Year On-Highway Heavy-Duty Engine Certification Data
