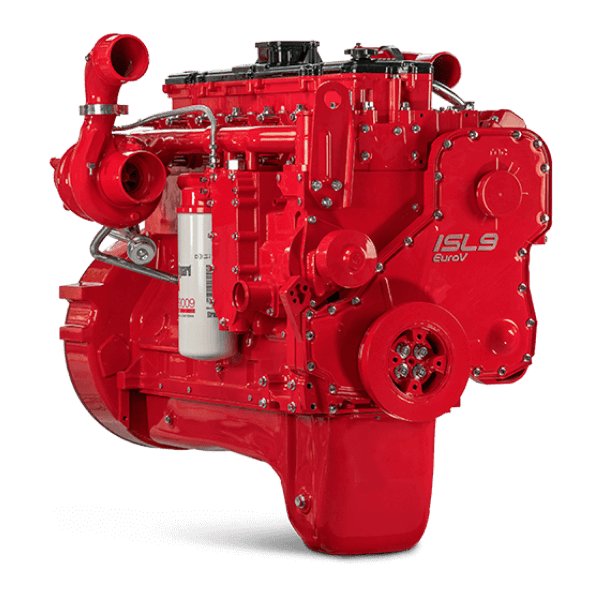

Cummins ISL9 280

Built: 2012-2015 · Series: ISL9

Source: https://www.cummins.cl/sectores/sector-mineria/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ISL9 280 comes from Cummins. Production: 2012-2015. The fuel is diesel. The rated output is 280 bhp. Application: Urban Bus. The engine is single-stage turbocharged. Fuel reaches the combustion chamber through electronically controlled direct injection. It is a diesel engine. Rated output across the Cummins range ranges from 46 to 3,245 kW; the ISL9 280 sits at the bottom of that range with 280 kW. Its immediate neighbours are the ISV5.0 275 below it with 275 kW and the ISL9 300 above it with 285 kW. 517 Cummins models across 3 series are on record. The model is listed under Heavy-duty on-road engines. 18 verified figures from 4 sources are on file.

Technical data

Engine

Engine code3123; FR92596; 3733; FR93549correct
Engine familyCCEXH0540LARcorrect
Engine familiesCCEXH0540LARcorrect
Fueldieselcorrect
Rated output280 bhpcorrect
Rated speed2,200 rpmcorrect
Maximum torque900 ft·lbfcorrect
Speed at max. torque1,300 rpmcorrect
Operating cycledieselcorrect
Injectionelectronic direct injectioncorrect
Aspirationsingle-stage turbocorrect

Origin and approval

Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2016correct

Other data

AnwendungsbereichUrban Buscorrect

Frequently asked questions

How much power does the Cummins ISL9 280 have?

The Cummins ISL9 280 delivers 280 kW.

When was the Cummins ISL9 280 built?

Production years: 2012-2015.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 4 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

ISL9 260

ISL9 270

ISL9 270 EV

ISL9 300

ISL9 300 EV

ISL9 300/ISL9 300 EV

ISL9 330

ISL9 330 EV

ISL9 330/ISL9 330 EV

ISL9 330H

ISL9 345

ISL9 345 EV

Sources: [1] [2] [3] [4]

Diesel engine in 3D section

Turn the model, look inside and click an assembly — each one is explained.

Teile zu diesem Motor (45)

Teilenummern des Herstellers aus der amtlichen EPA-Dokumentation. Ohne Preis und Verfügbarkeit — die kommen vom Lieferanten.

Teilenummer Bezeichnung Hersteller
5284148 Ammonia Cummins
4921517 Barometric Pressure Sensor Cummins
2872784 Charge Air Cooler Temperature Cummins
4921850 Comp Inlet Temp and Pressure Cummins
2897332 Compressor Inlet Temperature Cummins
2897334 Compressor Outlet Pressure Sensor;Comp out pressure sensor Cummins
4954905 Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor Cummins
2871960 Diesel Particulate Filter Pressure Cummins
4307101 Aftertreatment Temperature Sensor Cummins
4307103 Aftertreatment Temperature Sensor Cummins
4928594 Exhaust Manifold Pressure;EGR Orifice Pressure Sensor;EGR pressure sensor Cummins
2872667 Einspritzpumpe Cummins
2872277 Camshaft Position Sensor;Engine Crankshaft;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft Cummins
2872948 Engine NOx Cummins
2872949 Engine NOx Cummins
4326475 Engine NOx Cummins
4326873 Engine Out NOx Sensor 1;Engine Out NOx Sensor Cummins
2872424 Exhaust Gas Recirculation Pressure Cummins
2872858 EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR Out Temperature Sensor;EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR temp sensor Cummins
4307166 Exhaust Gas Recirculation Pressure Cummins
4307021 Fuel Injection Pump Cummins
2872725 Fuel Pres Cummins
2897581 Fuel Pressure Cummins
2872943 NOx Sensor Selective Catalytic Reduction Cummins
2872946 NOx Sensor Selective Catalytic Reduction Cummins
2897307 NOx Sensor Selective Catalytic Reduction Cummins
4326861 Tailpipe NOx Sensor Cummins
4326864 Tailpipe NOx Sensor Cummins
4326867 Engine Out NOx Sensor Cummins
4326868 Tailpipe NOx Sensor Cummins
4326869 Tailpipe NOx Sensor Cummins
4326872¿ NOx Sensor Selective Catalytic Reduction Cummins
4326874 Tailpipe NOx Sensor Cummins
4307100 Aftertreatment Temperature Sensor Cummins
4307102 Aftertreatment Temperature Sensor Cummins
2872779 Tailpipe NOx Cummins
2872942 Tailpipe NOx Cummins
2872947 Tailpipe NOx Cummins
3796001 Turbocharger Cummins
3797176 Turbocharger Cummins
2842381 Turbolader Cummins
3780076 Turbolader Cummins
3795999 Turbolader Cummins
3797174 Turbolader Cummins
3797175 Turbolader Cummins

Quelle: 2014 Model Year On-Highway Heavy-Duty Engine Certification Data
