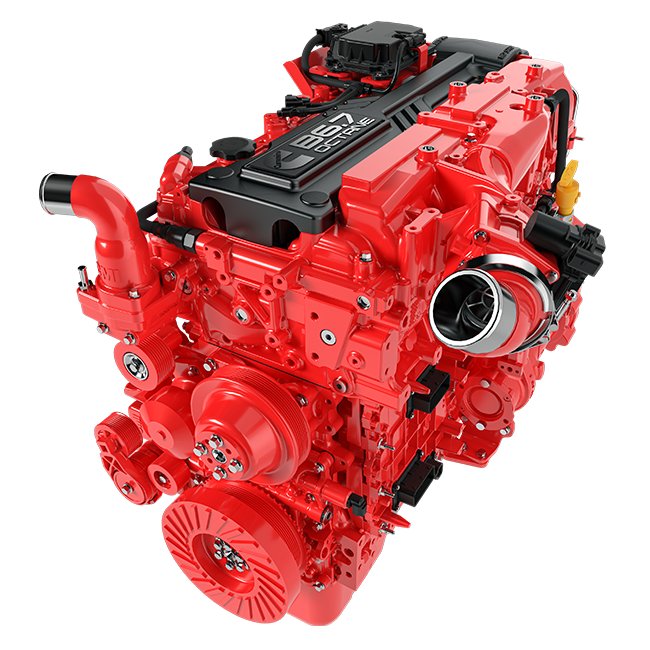

Cummins B6.7 360
Built: 2017-2026 · Series: B6.7
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Cummins B6.7 360 belongs to the B6.7 series. Production: 2017-2026. The engine with a displacement of 6,700 cm³. The fuel is 7-15 ppm ultra low sulfur diesel. The rated output is 360 hp. Application: Vocational. The engine is turbocharged. It is a diesel engine. The B6.7 series covers 24 models. Rated output within it ranges from 195 to 360 kW; the B6.7 360 sits at the top of that range with 360 kW. Its immediate neighbours are the B6.7 340ST below it with 340 kW. 517 Cummins models across 22 series are on record.
Cummins B6.7 – the most-built Cummins since 2017: 6.7-litre six-cylinder with 200 to 360 hp for school buses, distribution trucks and pickups
The B series is Cummins' bread-and-butter engine: launched in 1984 as a 5.9-litre six-cylinder in the joint plant with Case in Rocky Mount, North Carolina, made famous in 1989 as the first diesel in the Dodge Ram, enlarged to 6.7 litres in 2007. The B6.7 of 2017 is the generation for the US EPA 2017 standard, with revised injection, a variable-geometry turbocharger and an aftertreatment that combines particulate filter and SCR in one module. It replaced the ISB6.7 and remains Cummins' highest-volume engine – in school buses, Class 5 to 7 distribution trucks, fire apparatus, motorhomes and the Ram pickups.
Read on 3 more paragraphs
The number in the name is the output in hp; appended codes such as H, EV, ST or HTS mark torque curves and calibrations. The register lists 24 versions with 195 to 360 hp at 2,400 to 2,800 rpm and 520 to 800 lb-ft (705 to 1,085 Nm) of torque between 1,600 and 1,800 rpm; all with 6,700 cm³, direct injection and turbocharging, certified for model years 2017 to 2026, with 'Vocational' – bodied trucks – as the predominant application.
The same engine runs at Peterbilt and Kenworth under the name Paccar PX-7 and in Cummins' own off-highway programmes as the QSB6.7 or B6.7 Stage V for construction and agricultural machinery – the parts kinship spans road, site and field.
On used engines the condition of the aftertreatment, the injectors where fuel quality was poor and the service history count; with a well-kept EGR the engine is regarded as robust, and thanks to its spread parts are cheap and plentiful.
Sources: Kennwerte der Modelle Cummins B6.7 (EPA-Zertifizierungsdaten), Cummins B6.7 (Hersteller), EPA-Zertifizierungsdaten Motoren
Technical data
Engine
| Engine code | BM1correct |
|---|---|
| Engine family | TCEXH0408BCAcorrect |
| Engine families | LCEXH0408BAT; KCEXH0408BAT; JCEXH0408BAT; HCEXH0408BATcorrect |
| Fuel | 7-15 ppm ultra low sulfur dieselcorrect |
| Rated output | 360 hpcorrect |
| Rated speed | 2,600 rpmcorrect |
| Maximum torque | 800 ft·lbfcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Displacement | 6,700 cm³correct |
| Displacement | 6.7 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | BM1correct |
|---|---|
| Built from | 2017correct |
| Built to | 2020correct |
| Model year from | 2017correct |
| Model year to | 2026correct |
| Sales region | USA certificationcorrect |
Other data
| Anwendungsbereich | Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Cummins B6.7 360 have?
The Cummins B6.7 360 delivers 360 kW.
What engine does the Cummins B6.7 360 have?
6,700 cm³ displacement, 7-15 ppm ultra low sulfur diesel.
When was the Cummins B6.7 360 built?
Production years: 2017-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
B6.7 200
B6.7 200H
B6.7 220
B6.7 240
B6.7 250
B6.7 260
B6.7 260 EV
B6.7 260H
B6.7 280
B6.7 280 EV
B6.7 280H
B6.7 280HTS
Sources: [1]
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Parts for this engine (200)
Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.
| Teilenummer | Bezeichnung | Hersteller |
|---|---|---|
| 5621513 | 5621513 is the part in service. | Cummins |
| 5491908 | Aftertreatment Fuel Pressure Sensor | Cummins |
| 5515917 | Aftertreatment Hydrocarbon Doser | Cummins |
| 4359192 | Aftertreatment Temperature Sensor | Cummins |
| 4359194 | Aftertreatment Temperature Sensor | Cummins |
| 4359195 | Aftertreatment Temperature Sensor | Cummins |
| 4359196 | Aftertreatment Temperature Sensor | Cummins |
| 4359197 | Aftertreatment Temperature Sensor | Cummins |
| 4359198 | Aftertreatment Temperature Sensor | Cummins |
| 4384561 | Aftertreatment Temperature Sensor | Cummins |
| 4384562 | Aftertreatment Temperature Sensor | Cummins |
| 4384563 | Aftertreatment Temperature Sensor | Cummins |
| 4384564 | Aftertreatment Temperature Sensor | Cummins |
| 4384565 | Aftertreatment Temperature Sensor | Cummins |
| 4384566 | Aftertreatment Temperature Sensor | Cummins |
| 4384567 | Aftertreatment Temperature Sensor | Cummins |
| 4384568 | Aftertreatment Temperature Sensor | Cummins |
| 4384569 | Aftertreatment Temperature Sensor | Cummins |
| 4384570 | Aftertreatment Temperature Sensor | Cummins |
| 4384571 | Aftertreatment Temperature Sensor | Cummins |
| 4384572 | Aftertreatment Temperature Sensor | Cummins |
| 4384573 | Aftertreatment Temperature Sensor | Cummins |
| 4384574 | Aftertreatment Temperature Sensor | Cummins |
| 4384575 | Aftertreatment Temperature Sensor | Cummins |
| 4384576 | Aftertreatment Temperature Sensor | Cummins |
| 4384577 | Aftertreatment Temperature Sensor | Cummins |
| 4384578 | Aftertreatment Temperature Sensor | Cummins |
| 4384579 | Aftertreatment Temperature Sensor | Cummins |
| 4384580 | Aftertreatment Temperature Sensor | Cummins |
| 5594132 | Aftertreatment Temperature Sensor | Cummins |
| 5654165 | Aftertreatment Temperature Sensor | Cummins |
| 5654166 | Aftertreatment Temperature Sensor | Cummins |
| 5654167 | Aftertreatment Temperature Sensor | Cummins |
| 5654168 | Aftertreatment Temperature Sensor | Cummins |
| 5654169 | Aftertreatment Temperature Sensor | Cummins |
| 5654170 | Aftertreatment Temperature Sensor | Cummins |
| 5654171 | Aftertreatment Temperature Sensor | Cummins |
| 5654172 | Aftertreatment Temperature Sensor | Cummins |
| 5654173 | Aftertreatment Temperature Sensor | Cummins |
| 5654174 | Aftertreatment Temperature Sensor | Cummins |
| 5654175 | Aftertreatment Temperature Sensor | Cummins |
| 5654176 | Aftertreatment Temperature Sensor | Cummins |
| 5654177 | Aftertreatment Temperature Sensor | Cummins |
| 5654178 | Aftertreatment Temperature Sensor | Cummins |
| 5654179 | Aftertreatment Temperature Sensor | Cummins |
| 5654180 | Aftertreatment Temperature Sensor | Cummins |
| 5654181 | Aftertreatment Temperature Sensor | Cummins |
| 5654182 | Aftertreatment Temperature Sensor | Cummins |
| 5654183 | Aftertreatment Temperature Sensor | Cummins |
| 5698544 | Aftertreatment Temperature Sensor | Cummins |
| 5698545 | Aftertreatment Temperature Sensor | Cummins |
| 5698546 | Aftertreatment Temperature Sensor | Cummins |
| 5698547 | Aftertreatment Temperature Sensor | Cummins |
| 5698548 | Aftertreatment Temperature Sensor | Cummins |
| 5698549 | Aftertreatment Temperature Sensor | Cummins |
| 5698550 | Aftertreatment Temperature Sensor | Cummins |
| 5698551 | Aftertreatment Temperature Sensor | Cummins |
| 5698552 | Aftertreatment Temperature Sensor | Cummins |
| 5698554 | Aftertreatment Temperature Sensor | Cummins |
| 5698557 | Aftertreatment Temperature Sensor | Cummins |
| 5698558 | Aftertreatment Temperature Sensor | Cummins |
| 5698560 | Aftertreatment Temperature Sensor | Cummins |
| 4354160 | Ammonia Slip Catalyst | Cummins |
| 4394414 | Ammonia Slip Catalyst | Cummins |
| 5517427 | Ammonia Slip Catalyst | Cummins |
| 6451796 | Cam Sensor | Cummins |
| 2897333 | Charge Air Cooler Temperature | Cummins |
| 5698455 | Charge Air Cooler Temperature | Cummins |
| 5698454 | Compressor Inlet Combo Sensor;Compressor Inlet Temp/Pres Sensor (TBAP) | Cummins |
| 2897332 | Compressor Inlet Temperature | Cummins |
| 4954905 | Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor | Cummins |
| 5462277 | Crankcase Pressure;CCV Outlet Pressure;CCV Outlet Pressure;Crankcase Pressure;Crankcase pressure sensor | Cummins |
| 5722877 | Engine Crankshaft (dual sourced);Crankshaft position sensor dual sourced;Crankshaft position sensor dual sourced | Cummins |
| 5653803 | Delta P Sensor | Cummins |
| 4354154 | Diesel Oxidation Catalyst | Cummins |
| 5283625 | Diesel Oxidation Catalyst | Cummins |
| 5512256 | Diesel Oxidation Catalyst | Cummins |
| 4388221 | Diesel Particulate Filter | Cummins |
| 5303761 | Diesel Particulate Filter | Cummins |
| 5517494 | Diesel Particulate Filter | Cummins |
| 2871960 | Diesel Particulate Filter Pressure | Cummins |
| 5492073 | Diesel Particulate Filter Pressure | Cummins |
| 6541614 | EGR By-Pass Valve | Cummins |
| 6591281 | EGR By-Pass Valve | Cummins |
| 6635743 | EGR By-Pass Valve | Cummins |
| 5317072 | EGR Cooler | Cummins |
| 5341879 | EGR Cooler | Cummins |
| 5443691 | EGR Cooler | Cummins |
| 5529387 | EGR Cooler | Cummins |
| 5566765 | EGR Cooler | Cummins |
| 5715376 | EGR Cooler | Cummins |
| 4928594 | Exhaust Manifold Pressure;EGR Orifice Pressure Sensor;EGR pressure sensor | Cummins |
| 4384785 | EGR Out Temperature Sensor | Cummins |
| 5525110 | EGR Out Temperature Sensor | Cummins |
| 6491955 | EGR Out Temperature Sensor | Cummins |
| 5397382 | EGR Valve | Cummins |
| 5397383 | EGR Valve | Cummins |
| 5586983 | EGR Valve | Cummins |
| 6541615 | EGR Valve | Cummins |
| 6591278 | EGR Valve | Cummins |
| 6635741 | EGR Valve | Cummins |
| 4384413 | Engine Control Module | Cummins |
| 4384696 | Engine Control Module | Cummins |
| 5572390 | Engine Control Module | Cummins |
| 5677631 | Engine Control Module | Cummins |
| 5677664 | Engine Control Module | Cummins |
| 6372744 | Engine Control Module | Cummins |
| 6379115 | Engine Control Module | Cummins |
| 6393601 | Engine Control Module | Cummins |
| 6473319 | Engine Control Module | Cummins |
| 6668146 | Engine Control Module | Cummins |
| 5491325 | Cam sensor service part;Cam Sensor;Engine Crankshaft Position Sensor;Cam speed sensor | Cummins |
| 5491326 | Engine Crankshaft;Engine Camshaft;Engine Camshaft;Engine Crankshaft;Engine Crankshaft;Engine Crankshaft;Engine Crankshaft service part;Engine Camshaft;Cam position sensor | Cummins |
| 5492132 | Engine Crankshaft;Engine Camshaft;Engine Camshaft;Engine Crankshaft;Engine Crankshaft service part;Engine speed sensor service part;Engine Crankshaft;Engine Crankshaft/cam position sensor;Engine Camshaft;Engine Crankshaft position sensor;Engine speed sensor service part;Engine Crankshaft/cam position sensor;Engine Crankshaft;Engine Crankshaft service part;Engine Camshaft | Cummins |
| 5295473 | Engine Out NOx Sensor | Cummins |
| 5302539 | Engine Out NOx Sensor | Cummins |
| 5306305 | Engine Out NOx Sensor | Cummins |
| 5306306 | Engine Out NOx Sensor | Cummins |
| 5340916 | Engine Out NOx Sensor | Cummins |
| 6304153 | Engine Out NOx Sensor | Cummins |
| 6313780 | Engine Out NOx Sensor | Cummins |
| 6376284 | Engine Out NOx Sensor | Cummins |
| 6376289 | Engine Out NOx Sensor | Cummins |
| 6395408 | Engine Out NOx Sensor | Cummins |
| 4326873 | Engine Out NOx Sensor 1;Engine Out NOx Sensor | Cummins |
| 4327230 | Engine Crankshaft;Engine Crankshaft;Engine Cam;Engine Speed Sensor | Cummins |
| 2872858 | EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR Out Temperature Sensor;EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR temp sensor | Cummins |
| 4307166 | Exhaust Gas Recirculation Pressure | Cummins |
| 4384138 | Exhaust Gas Recirculation Pressure | Cummins |
| 6419882 | Exhaust Gas Recirculation Pressure | Cummins |
| 4384678 | Exhaust Manifold Pressure | Cummins |
| 6397428 | Charge Pressure Sensor | Cummins |
| 5491909 | Exhaust Pressure Sensor;EMP Sensor;Exhaust Manifold sensor | Cummins |
| 5398300 | Fuel Injection Pump | Cummins |
| 5398557 | Fuel Injection Pump | Cummins |
| 5529763 | Fuel Injection Pump | Cummins |
| 5622801 | Fuel Injection Pump | Cummins |
| 5669694 | part in service. | Cummins |
| 5683562 | part in service. | Cummins |
| 6541579 | Fuel Injection Pump | Cummins |
| 5256034 | Fuel Injector | Cummins |
| 5364205 | Fuel Injector | Cummins |
| 5567914 | Fuel Injector | Cummins |
| 5601422 | Fuel Injector | Cummins |
| 5601423 | Fuel Injector | Cummins |
| 5601424 | Fuel Injector | Cummins |
| 5640293 | Fuel Injector | Cummins |
| 5640294 | Fuel Injector | Cummins |
| 5640295 | Fuel Injector | Cummins |
| 6500156 | Fuel Injector | Cummins |
| 4306993 | Fuel Pressure | Cummins |
| 5348916 | Fuel Pressure | Cummins |
| 5566375 | Fuel Pressure | Cummins |
| 6408287 | Fuel Pressure | Cummins |
| 6383691 | Intake Air Throttle | Cummins |
| 5515274 | Light Off SCR | Cummins |
| 5517724 | Light Off SCR DOser | Cummins |
| 5519057 | Light Off SCR DOser | Cummins |
| 6455332 | Midbed NOx Sensor | Cummins |
| 4326861 | Tailpipe NOx Sensor | Cummins |
| 4326864 | Tailpipe NOx Sensor | Cummins |
| 4326868 | Tailpipe NOx Sensor | Cummins |
| 4326869 | Tailpipe NOx Sensor | Cummins |
| 4326872¿ | NOx Sensor Selective Catalytic Reduction | Cummins |
| 4326874 | Tailpipe NOx Sensor | Cummins |
| 5586982 | Part in service | Cummins |
| 6326174 | PM Sensor | Cummins |
| 5512265 | SCR - Doser | Cummins |
| 6306430 | SCR Inlet Temp Sensor | Cummins |
| 6457545 | SCR Inlet Temp Sensor | Cummins |
| 6306432 | SCR Outlet Temp Sensor | Cummins |
| 6457546 | SCR Outlet Temp Sensor | Cummins |
| 6304162 | System Out NOx Sensor | Cummins |
| 5354480 | Turbocharger | Cummins |
| 5354482 | Turbocharger | Cummins |
| 5354493 | Turbocharger | Cummins |
| 5456364 | Turbocharger | Cummins |
| 5501345 | Turbocharger | Cummins |
| 5501347 | Turbocharger | Cummins |
| 5501358 | Turbocharger | Cummins |
| 5601425 | Turbocharger | Cummins |
| 5601435 | Turbocharger | Cummins |
| 5601436 | Turbocharger | Cummins |
| 5601547 | Turbocharger | Cummins |
| 5601548 | Turbocharger | Cummins |
| 5601549 | Turbocharger | Cummins |
| 5601550 | Turbocharger | Cummins |
| 5601560 | Turbocharger | Cummins |
| 5601561 | Turbocharger | Cummins |
| 5604930 | Turbocharger | Cummins |
| 5604931 | Turbocharger | Cummins |
| 5604932 | Turbocharger | Cummins |
| 5604933 | Turbocharger | Cummins |
| 5604934 | Turbocharger | Cummins |
| 5604935 | Turbocharger | Cummins |
| 5604936 | Turbocharger | Cummins |
| 5604937 | Turbocharger | Cummins |
| 5604938 | Turbocharger | Cummins |
| 5604939 | Turbocharger | Cummins |
| 5604940 | Turbocharger | Cummins |
Quelle: EPA HD Engines 2015–Present
Diese Teile anfragen
