CMG Aluminium Frame HLA90L-4

Series: Aluminium Frame

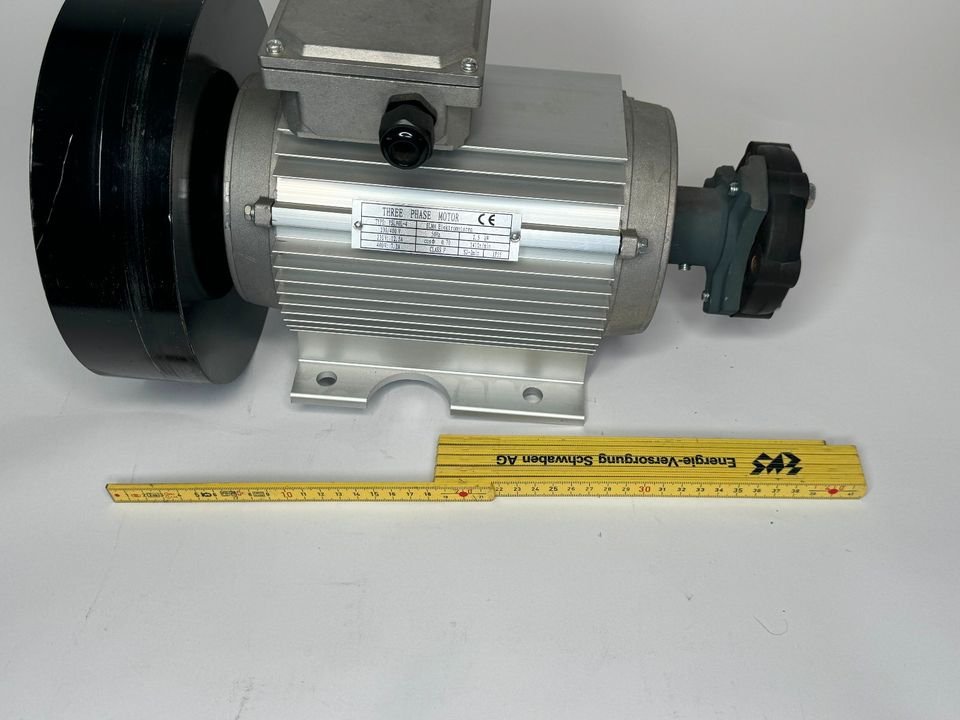

The photo shows the Aluminium frame SLA90L-4 from the same series. Source: https://www.kleinanzeigen.de/s-anzeige/drehstrommotor-2-5kw-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The CMG Aluminium Frame HLA90L-4 is a three-phase induction motor. The rated output is 1.5 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 90 L in foot-mounted form. The protection class is IP55. The efficiency is 86.5 per cent at full load and 87 per cent at 75 per cent load. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to AS 1359.102.1:1997. Rated output across the CMG range ranges from 0.75 to 160 kW; the Aluminium Frame HLA90L-4 sits at the bottom of that range with 1.5 kW. Its immediate neighbours are the CWC4029AM2 below it with 1.3 kW and the CW34190 above it with 1.9 kW. 815 CMG models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output1.5 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection class55correct
Frame size90 L (foot)correct
Mounting (IEC 60034-7)B0(Multi-mount), IM1001, IM2001, IM3001, IM2101, IM3001, IM3601correct
Efficiency at full load86.5 %correct
Efficiency at 75 % load87 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the CMG Aluminium Frame HLA90L-4 have?

The CMG Aluminium Frame HLA90L-4 delivers 1.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
