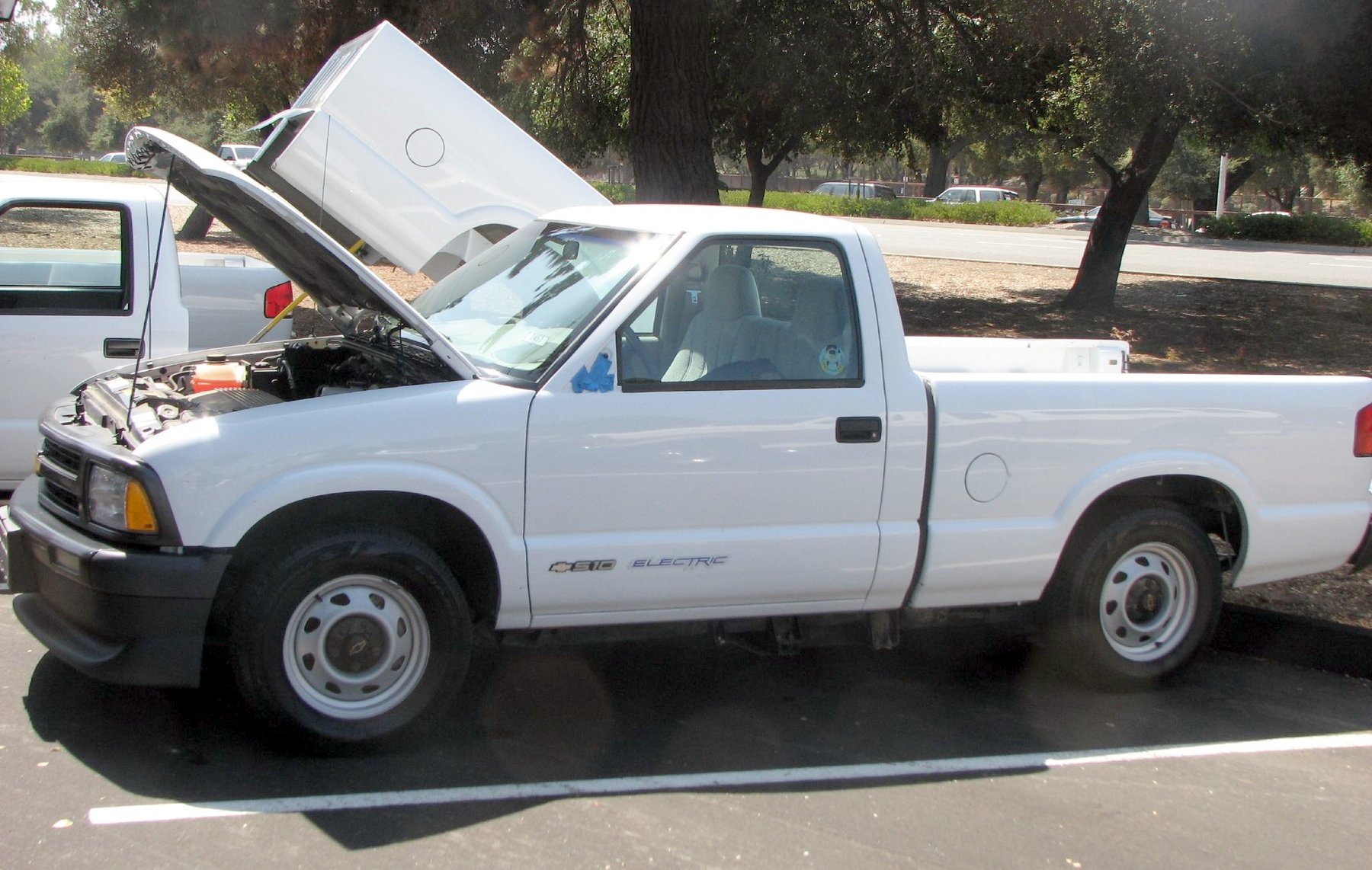

Chevrolet S10

Built: 1982-2003 · Series: S10

More machines from model year 1982

Source: https://en.wikipedia.org/wiki/Chevrolet_S-10_EV
With the S10, Chevrolet offers a model from the S10 series. Production: 1982-2003. The engine delivers 138 kW, has 6 cylinders, with a displacement of 4,299 cm³. The machine is 5,325 mm long and 1,850 mm wide. The unladen weight is 2,034 kg. The wheelbase measures 3,150 mm. Top speed is 155 km/h. The gross vehicle weight is 2,330 kg. The machine runs on 4 wheels. The gearbox offers 5 gears. The S10 series covers 21 models. Rated output within it ranges from 90 to 227.6 kW; the S10 sits in the lower part of that range with 138 kW. Its immediate neighbours are the S10 V6 below it with 134 kW and the S10 FLEETSIDE PICKUP above it with 142 kW. Unladen weight within it ranges from 1,510 to 2,034 kg; here the S10 sits at the top of that range with 2,034 kg. 2857 Chevrolet models across 75 series are on record.

Chevrolet S10 – American compact pickup with single and Extended Cab bodies, four- to eight-cylinder engines from 2.2 to 6.0 litres, 90 to 227.6 kW, rear- and four-wheel drive

The Chevrolet S10 was General Motors' first in-house compact pickup from 1982, replacing the previously imported Isuzu-based models in the US line-up, and was built among other places at the Shreveport plant in Louisiana. This collective page gathers S10 versions outside the named standard ranges, from the plain pickup through the extended Extended Cab to the Xtreme sport package, each with a Fleetside bed and a choice of rear- or four-wheel drive. The second generation ran from 1994 until the S10 was replaced by the Colorado in 2004.

Read on 3 more paragraphs

The register lists 21 versions with four- to eight-cylinder engines from 2,189 to 6,000 cm³ and 90 to 227.6 kW, kerb weights from 1,368 to 2,034 kg, gross vehicle weights from 1,814 to 2,336 kg, lengths from 5,160 to 5,350 mm and widths from 1,630 to 1,850 mm.

For two decades the S10 was one of the best-selling compact pickups in North America, competing directly with the Ford Ranger and Dodge Dakota; in Europe it remained a rare import. Higher-output special versions such as the Xtreme targeted sportier buyers and complemented the wide payload range of the standard versions.

Buying used, it is worth checking the rear frame section for corrosion, especially on vehicles from road-salting countries, along with the condition of the automatic transmission and the timing chain on the V6 engines. Clutch, brakes and the front torsion-bar suspension bushings should be inspected; parts supply for the standard engines from the US market remains good.

Sources: Kennwerte der Modelle Chevrolet S10, Chevrolet (GM, Hersteller)

Technical data

Engine

Power138 kWcorrect
Cylinders6correct
Displacement4,299 cm³correct

Dimensions and weights

Length5,325 mmcorrect
Width1,850 mmcorrect
Wheelbase3,150 mmcorrect
Unladen weight2,034 kgcorrect
Gross vehicle weight2,330 kgcorrect

Drivetrain and chassis

Gears5correct
Wheels4correct
Top speed155 km/hcorrect

Where this model stands

Power-to-weight ratio: 67.8 kW/t (138 kW / 2 t)

Stronger than 92% of the vans in the register — out of 7,144 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Chevrolet S10 have?

The Chevrolet S10 delivers 138 kW.

How much does the Chevrolet S10 weigh?

The unladen weight is 2,034 kg.

What is the gross vehicle weight of the Chevrolet S10?

2,330 kg.

What engine does the Chevrolet S10 have?

6 cylinders, 4,299 cm³ displacement.

What are the dimensions of the Chevrolet S10?

5,325 mm × 1,850 mm.

When was the Chevrolet S10 built?

Production years: 1982-2003.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
