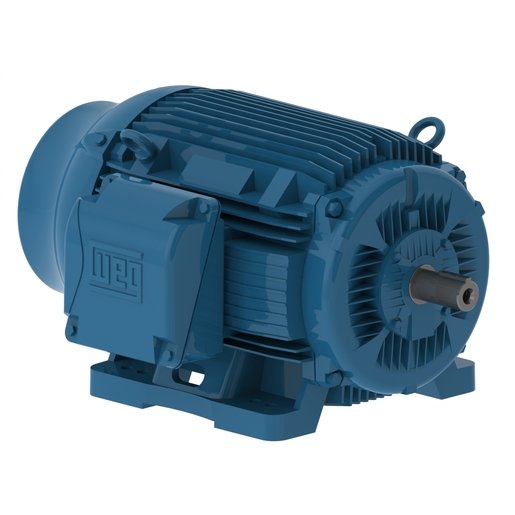

Ceg Premium DG 250 M-60-2

Series: DG

Source: https://www.weg.net/catalog/weg/US/en/Electric-Motors/AC-Mot

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Ceg Premium lists the DG 250 M-60-2 as a three-phase induction motor. The rated output is 75 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 250 M in foot-mounted form. The protection class is IP56. The efficiency is 95.5 per cent at full load, 95.5 per cent at 75 per cent load and 95 per cent at half load. The motor weighs 430 kg. At full load it delivers 242 Nm. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output across the Ceg Premium range ranges from 0.75 to 160 kW; the DG 250 M-60-2 sits in the middle of that range with 75 kW. Its immediate neighbours are the DG 250S-70-4 below it with 55 kW and the DG 250 S-80-4 above it with 90 kW. 68 Ceg Premium models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output75 kWcorrect

Dimensions and weights

Weight430 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP56correct
Frame size250 M (foot)correct
Mounting (IEC 60034-7)B3, B34, B35, B5, B6, B7, B8, V1, V3, V15, V18, V19, V36, V4correct
Efficiency at full load95.5 %correct
Efficiency at 75 % load95.5 %correct
Efficiency at half load95 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Ceg Premium DG 250 M-60-2 have?

The Ceg Premium DG 250 M-60-2 delivers 75 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
