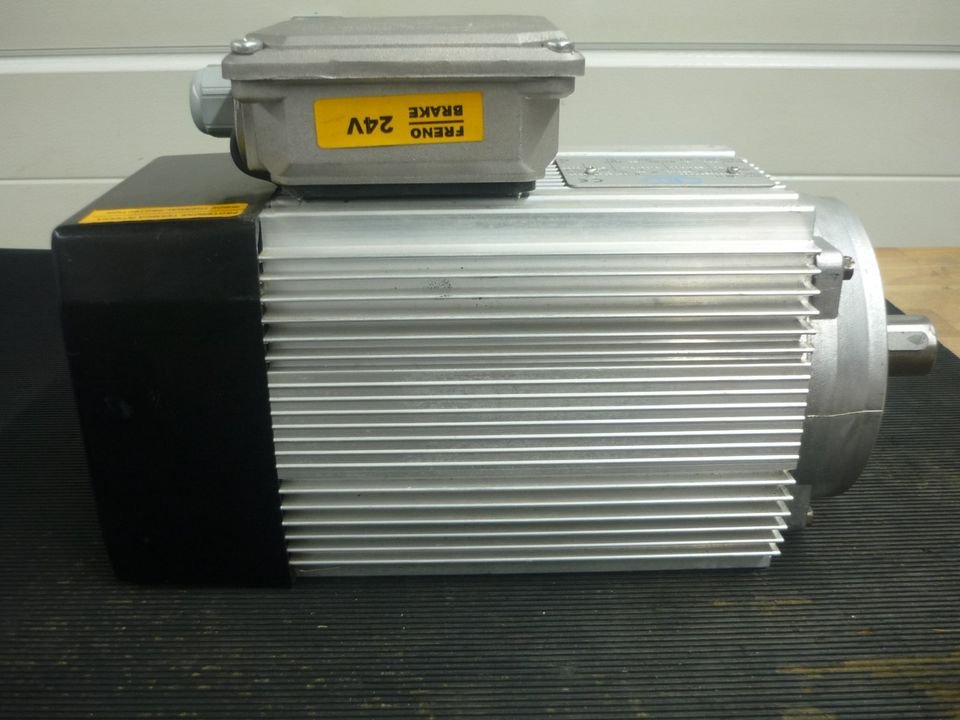

CEG INPM34003003

Series: Other models

Source: https://www.kleinanzeigen.de/s-anzeige/elektromotor-mit-brem

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The CEG INPM34003003 is a three-phase induction motor built by CEG. The rated output is 3 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 100 L in foot-mounted form. The protection class is IP56 and IP66. The efficiency is 88.2 per cent at full load, 88.4 per cent at 75 per cent load and 87 per cent at half load. The motor weighs 45 kg. At full load it delivers 19.82 Nm. The motor is built in China. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output across the CEG range ranges from 0.75 to 160 kW; the INPM34003003 sits at the bottom of that range with 3 kW. Its immediate neighbours are the XNPM36002203 below it with 2.2 kW and the AEHL-112M-28-4 above it with 4 kW. 509 CEG models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output3 kWcorrect

Dimensions and weights

Weight45 kgcorrect

Electrical data

Number of poles4correct
Protection classIP56, IP66correct
Frame size100 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B34, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct
Efficiency at full load88.2 %correct
Efficiency at 75 % load88.4 %correct
Efficiency at half load87 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the CEG INPM34003003 have?

The CEG INPM34003003 delivers 3 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
