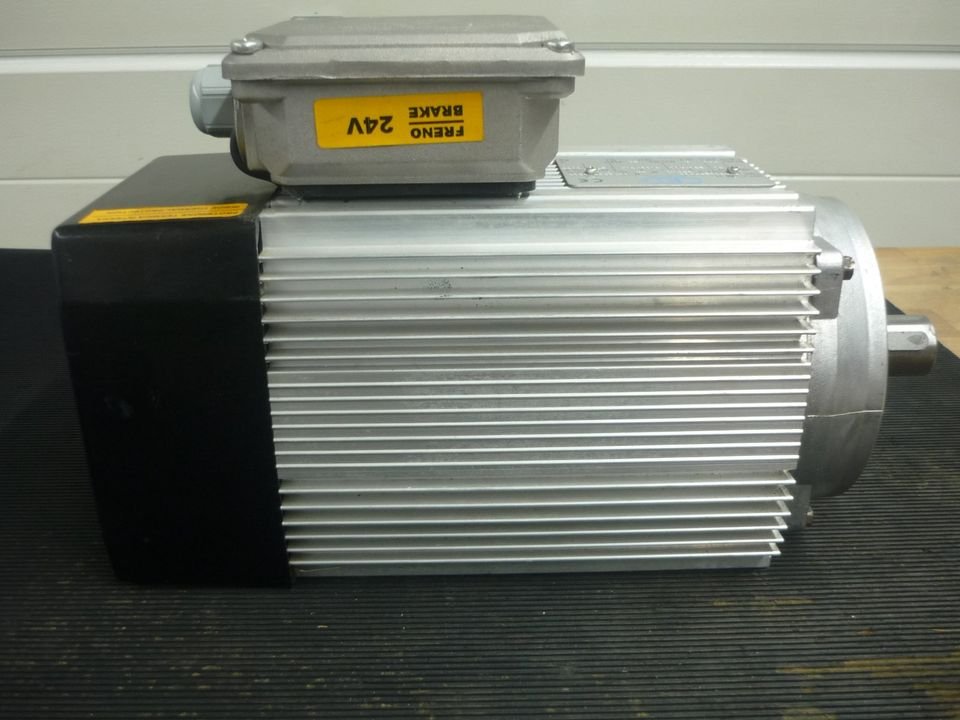

CEG DCTM32002203
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CEG – other models: the collective page of MEPS-registered three-phase motors from the Italian maker in Vicenza outside the named ranges, frame sizes 80 to 355, 0.75 to 160 kW
This page gathers the CEG three-phase motors the Australian energy-efficiency register could not assign to a named range. CEG is an Italian electric-motor maker from Vicenza in the Veneto; no further confirmed company data is available. The identifiers in the register, such as DCTM32000753 or DCTM32003003, follow a recognisable scheme of range code, frame size and a digit sequence suggesting output; the register also lists a separate motor family, the GGS range, with 40 entries.
Read on 3 more paragraphs
The register lists here 509 versions with 0.75 to 160 kW, two- to eight-pole, full-load efficiencies from 69.2 to 97.08% and at 75% load from 69.3 to 97.21%. Protection is mostly IP55 (362) and IP66 (78), frame sizes run from 80 to 355. Italy (292) and China (215) are recorded as manufacturing countries, with India in a few cases. Testing mostly followed the older AS/NZS 1359.5:2000 standard (292) and the 2004 version (214), almost exclusively with test method B; of 509 motors, 75 reach the 2005 High Efficiency Level (roughly IE2), the remaining 434 stay unclassified – suggesting a large part of the range comes from older series registered before the tighter efficiency stages.
As an Italian maker, CEG chiefly serves the European and Australian markets with a classic IEC standard-motor programme for pumps, fans, compressors and general drive tasks, competing with larger Italian and international suppliers.
When buying used, on the older models registered under the Legacy standard, winding condition and a checked insulation resistance matter especially; on all models, bearing, shaft and key condition, visible corrosion on the terminal box and fan cover, and a legible nameplate with frame size and pole count matter; inverter suitability on the older ranges should not be assumed without checking. Spares run through CEG's European distribution.
Sources: Kennwerte der Modelle CEG (weitere Modelle, MEPS-Registrierungen)
Technical data
Engine
| Rated output | 2.2 kWcorrect |
|---|
Electrical data
| Rated voltage | 380/400/415 Vcorrect |
|---|---|
| Number of poles | 2correct |
| Protection class | IP66correct |
| Frame size | 90 L (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B34, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct |
| Efficiency at full load | 87.81 %correct |
| Efficiency at 75 % load | 88.51 %correct |
| Efficiency at half load | 87.76 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | AS/NZS 1359.102.3:2000correct |
Frequently asked questions
How much power does the CEG DCTM32002203 have?
The CEG DCTM32002203 delivers 2.2 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
