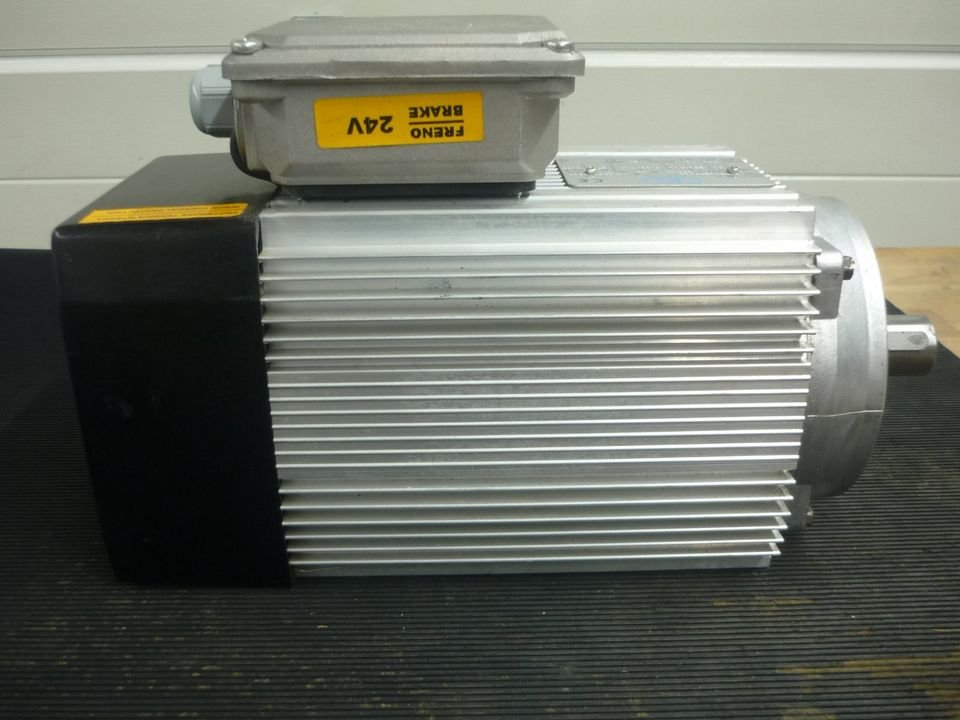

CEG H100LA-4

Series: Other models

Source: https://www.kleinanzeigen.de/s-anzeige/elektromotor-mit-brem

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The H100LA-4 from CEG is a three-phase induction motor. The rated output is 2.2 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 100 M. The protection class is IP55. The efficiency is 81 per cent at full load, 80.8 per cent at 75 per cent load and 77.9 per cent at half load. The motor weighs 19.5 kg. At full load it delivers 14.7 Nm. The mounting arrangement to IEC 60034-7 is B3. The motor is built in Italy. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2000 (Legacy); measured to AS/NZS 1359.102.3:2000. Rated output across the CEG range ranges from 0.75 to 160 kW; the H100LA-4 sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the XNPM34001503 below it with 1.5 kW and the DCTM32003003 above it with 3 kW. 509 CEG models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output2.2 kWcorrect

Dimensions and weights

Weight19.5 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size100 Mcorrect
Mounting (IEC 60034-7)B3correct
Efficiency at full load81 %correct
Efficiency at 75 % load80.8 %correct
Efficiency at half load77.9 %correct

Origin and approval

Country of manufactureItalycorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the CEG H100LA-4 have?

The CEG H100LA-4 delivers 2.2 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
