CEG GGS
Series: Other models

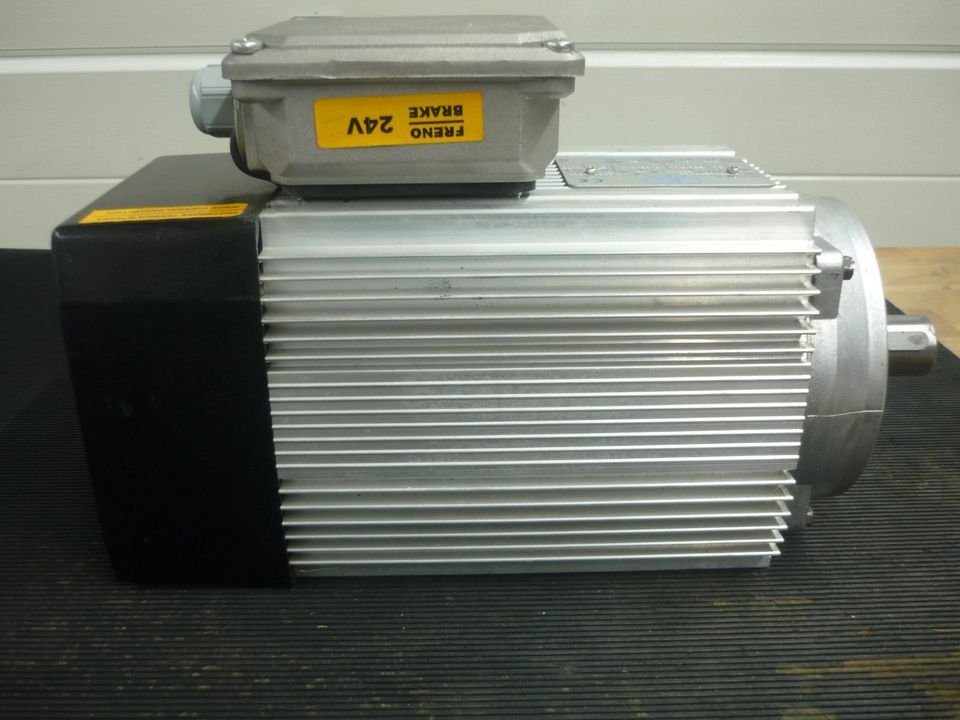

The CEG GGS is a three-phase induction motor from the CEG range. The rated output is 1.1 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 80 M in foot-mounted form. The protection class is IP55. The efficiency is 84.7 per cent at full load, 85.4 per cent at 75 per cent load and 84.3 per cent at half load. The motor is built in China. The figures come from the Australian MEPS register under the GEMS Determination 2012; measured to AS/NZS 1359.102.3:2000. Rated output across the CEG range ranges from 0.75 to 160 kW; the GGS sits at the bottom of that range with 1.1 kW. Its immediate neighbours are the MTEF2 below it with 0.75 kW and the AEHL-90L-24-4 above it with 1.5 kW. 509 CEG models are on record. The model is listed under Electric motors. 25 verified figures from 1 source are on file.
Technical data
Engine
| Engine family | GGScorrect |
|---|---|
| Engine families | GGScorrect |
| Rated output | 1.1 kWcorrect |
Electrical data
| Rated voltage | 415 Vcorrect |
|---|---|
| Number of poles | 2correct |
| Protection class | IP55correct |
| Frame size | 80 M (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B34, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct |
| Efficiency at full load | 84.7 %correct |
| Efficiency at 75 % load | 85.4 %correct |
| Efficiency at half load | 84.3 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|---|
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct |
| Test method | AS/NZS 1359.102.3:2000correct |
Frequently asked questions
How much power does the CEG GGS have?
The CEG GGS delivers 1.1 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
