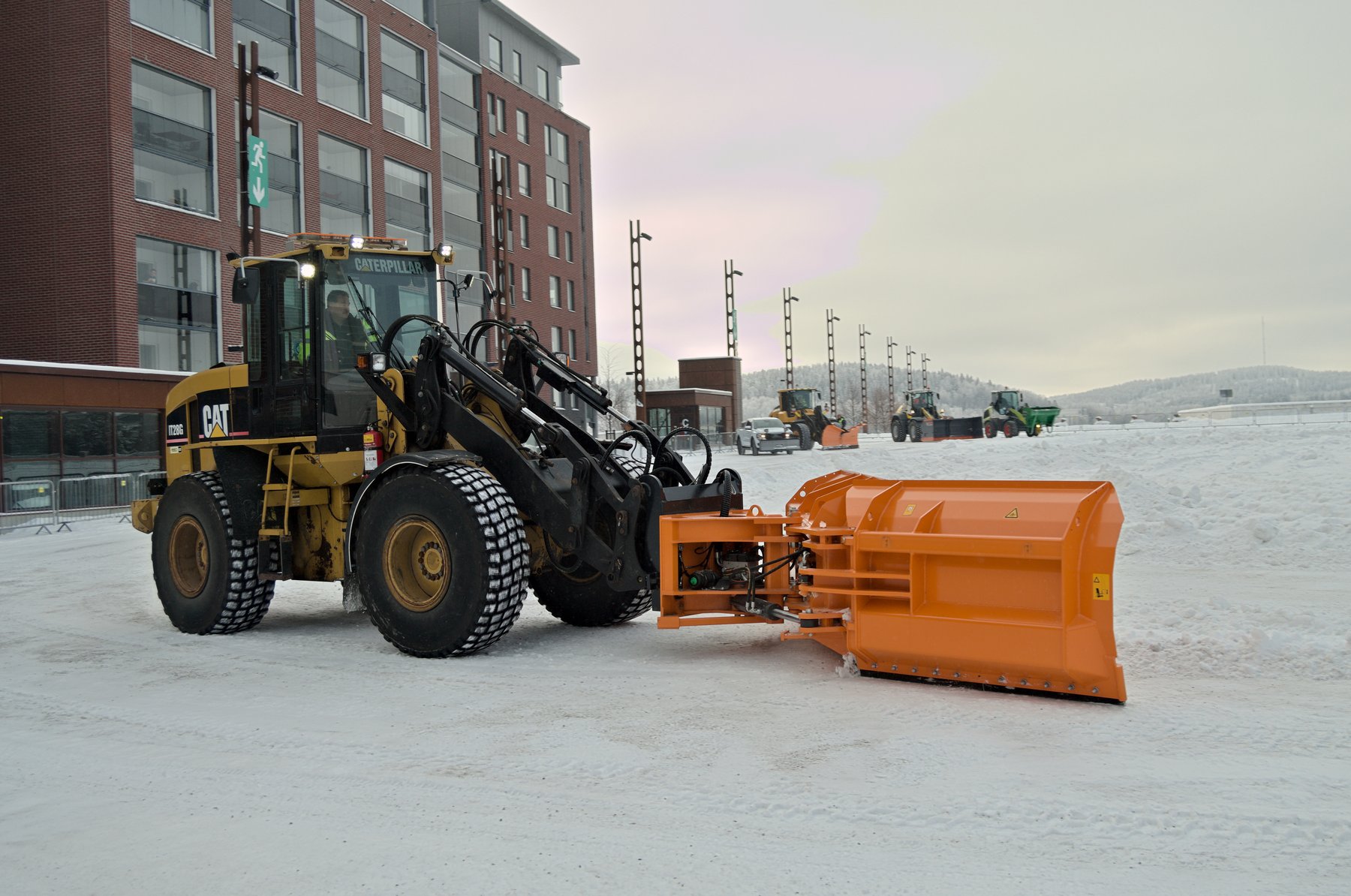

Caterpillar IT28G

Series: Caterpillar Integrated Tool Carrier

Source: https://commons.wikimedia.org/w/index.php?curid=185259610

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar IT28G belongs to the Caterpillar Integrated Tool Carrier series. The engine delivers 158.2 hp (108.1 kW), with a displacement of 6,000.9 cm³. Rated speed is 2,300 rpm. The unladen weight is 12,640 kg. The wheelbase measures 2,901.7 mm. Ground clearance is 408.4 mm. The tank holds 225.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The pump delivers 104.1 l/min. The hydraulic tank holds 125.3 litres. The cooling system holds 42 litres. The oil fill is 16.3 litres. The electrical system runs on 24 V. The engine fitted is the 3116T. Tyre size: 20,5R25 L3 XHA. The Caterpillar Integrated Tool Carrier series covers 16 models. Rated output within it ranges from 55.8 to 233.2 hp; the IT28G sits in the middle of that range with 158.2 hp. Its immediate neighbours are the 924G below it with 140.1 hp and the 930G above it with 163.2 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Telehandlers. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model3116Tcorrect
Power158.2 hp (108.1 kW)correct
Rated speed2,300 rpmcorrect
Displacement6,000.9 cm³correct
Coolant capacity42 lcorrect
Engine oil capacity16.3 lcorrect

Dimensions and weights

Wheelbase2,901.7correct
Ground clearance408.4correct
Unladen weight12,640 kgcorrect

Drivetrain and chassis

Forward gears4correct
Reverse gears3correct
Tyre size20.5R25 L3 XHAcorrect
System voltage24 Vcorrect

Working data

Pump flow104.1 l/mincorrect
Hydraulic oil capacity125.3 lcorrect
Fuel tank capacity225.2 lcorrect

Other data

Height3,270.5correct

Where this model stands

Power-to-weight ratio: 8.6 kW/t (108 kW / 12.6 t)

Stronger than 88% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar IT28G have?

The Caterpillar IT28G delivers 158 hp.

How much does the Caterpillar IT28G weigh?

The unladen weight is 12,640 kg.

What engine does the Caterpillar IT28G have?

6,001 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
