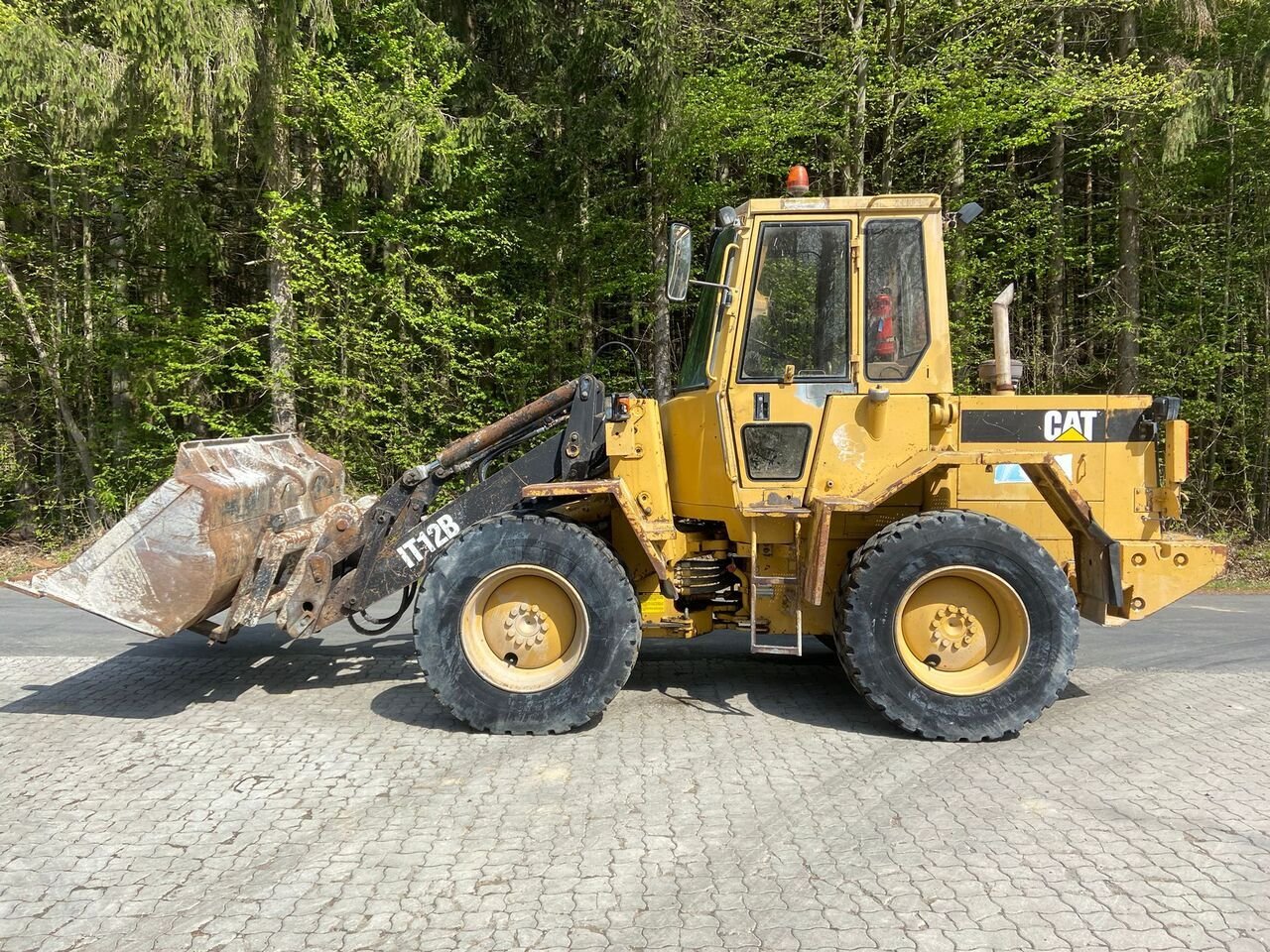

Caterpillar IT12B

Series: Caterpillar Integrated Tool Carrier

Source: https://www.truck1.eu/construction-machinery/wheel-loaders/c

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar IT12B belongs to the Caterpillar Integrated Tool Carrier series. The engine delivers 82.1 hp (55.9 kW), with a displacement of 4,401.6 cm³. Rated speed is 2,400 rpm. The unladen weight is 7,950 kg. The wheelbase measures 2,337.8 mm. Ground clearance is 344.4 mm. The tank holds 97.3 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The pump delivers 112 l/min. The hydraulic tank holds 67 litres. The cooling system holds 30.3 litres. The oil fill is 11.4 litres. The electrical system runs on 24 V. The engine fitted is the 3,114. Tyre size: 17,5-25 12PR. The Caterpillar Integrated Tool Carrier series covers 16 models. Rated output within it ranges from 55.8 to 233.2 hp; the IT12B sits at the bottom of that range with 82.1 hp. Its immediate neighbours are the 904B below it with 55.8 hp and the IT14B above it with 86.2 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Telehandlers. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model3,114correct
Power82.1 hp (55.9 kW)correct
Rated speed2,400 rpmcorrect
Displacement4,401.6 cm³correct
Coolant capacity30.3 lcorrect
Engine oil capacity11.4 lcorrect

Dimensions and weights

Wheelbase2,337.8correct
Ground clearance344.4correct
Unladen weight7,950 kgcorrect

Drivetrain and chassis

Gearbox typeelectronic powershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre size17.5-25 12PRcorrect
System voltage24 Vcorrect

Working data

Pump flow112 l/mincorrect
Hydraulic oil capacity67 lcorrect
Fuel tank capacity97.3 lcorrect

Other data

Height2,996.2correct

Where this model stands

Power-to-weight ratio: 7 kW/t (56 kW / 8 t)

Stronger than 14% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar IT12B have?

The Caterpillar IT12B delivers 82.1 hp.

How much does the Caterpillar IT12B weigh?

The unladen weight is 7,950 kg.

What engine does the Caterpillar IT12B have?

4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
