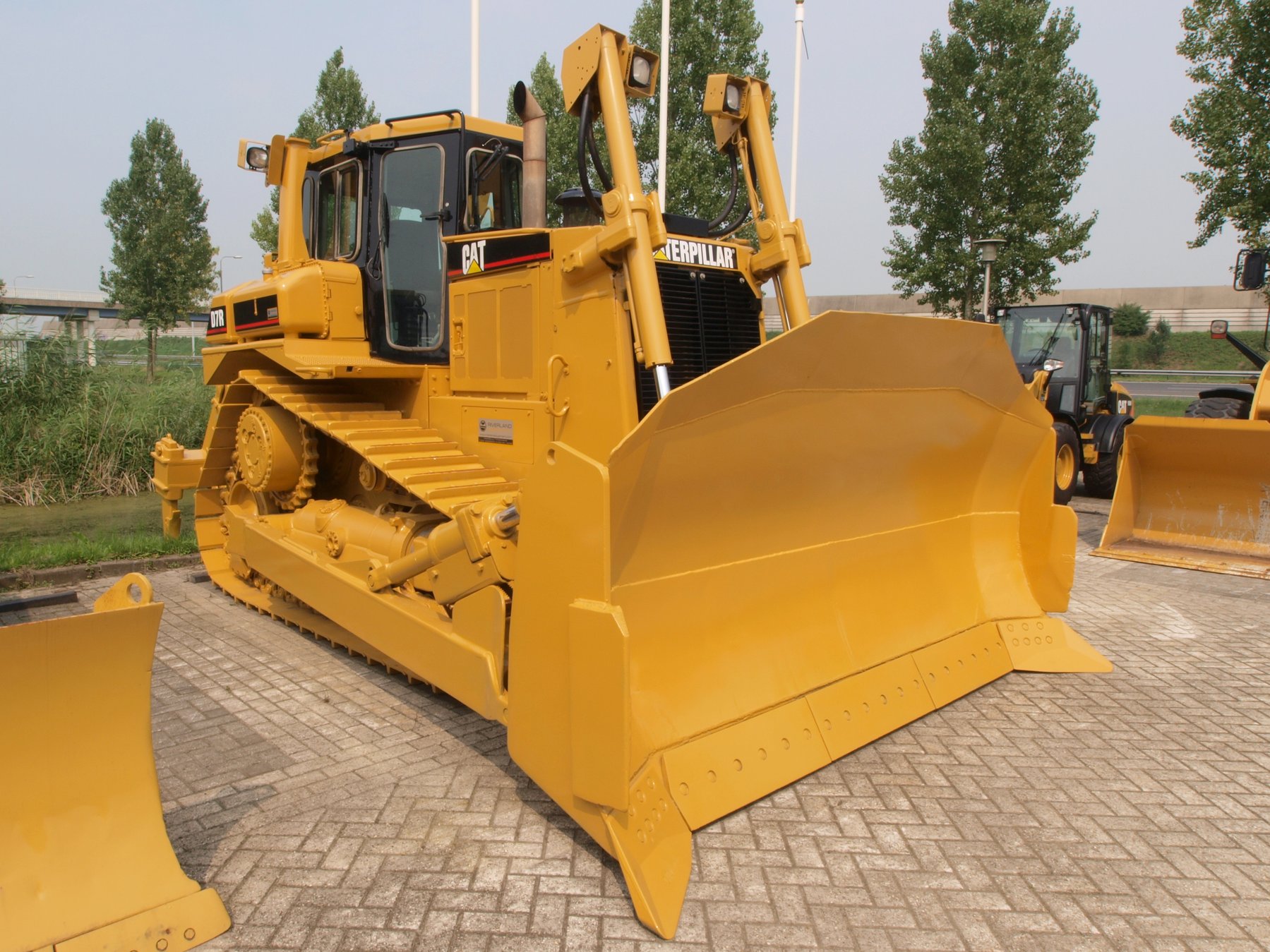

Caterpillar D7R WH Series II Crawler
Series: D7R
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Caterpillar D7R — one class above the D6, successor to the D7H
The D7R covers nine models in the database from 171 to 179 kW and 22.7 to 27.9 tonnes, with 10.3 to 10.5 litres of displacement — from the standard version through the XR and swamp (LGP) variant to the radial-steer WHA model and the technically revised Series II across several undercarriage versions. That puts the D7R noticeably above the D6 class, forming the next weight step in Cat's dozer programme.
Read on 4 more paragraphs
According to Wikipedia, the D7R replaced the D7H in 1996; the D7H had carried the elevated-sprocket design, still used today, as the first D7 to do so since 1986, rated at 215 hp. A Series II followed the D7R under the same modular approach used for the D6 — but the sources available don't name a successor that fully replaced the D7R name, so no statement about a D7T is made here.
The D7R sees use in medium-to-heavy earthmoving, mine-site prep and reclamation work, where the D6's pulling power is no longer enough but an D8 isn't yet needed.
For a used machine in this class, checking the final drives and steering clutches under load matters most, since the higher pulling power compared with the D6 puts more strain on the drivetrain.
In short: since 1996 the D7R has been the class between the D6 and D8 in Cat's programme, and the direct successor to the D7H.
Sources: Kennwerte der Modelle Caterpillar D7R, Caterpillar D7 (Wikipedia)
Technical data
Engine
| Engine model | 3176Ccorrect |
|---|---|
| Power | 261.6 hp (179 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 10,471.3 cm³correct |
Dimensions and weights
| Ground clearance | 417.6correct |
|---|---|
| Unladen weight | 27,895.9 kgcorrect |
Drivetrain and chassis
| Forward gears | 3correct |
|---|---|
| Reverse gears | 3correct |
Working data
| Fuel tank capacity | 478.9 lcorrect |
|---|
Other data
| Cab height | 3,432correct |
|---|---|
| System voltage | 24 Vcorrect |
More machines with this engine (3176C, 5)
Where this model stands
Power-to-weight ratio: 6.4 kW/t (179 kW / 27.9 t)
Stronger than 62% of the mining equipment in the register — out of 944 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Caterpillar D7R WH Series II have?
The Caterpillar D7R WH Series II delivers 262 hp.
How much does the Caterpillar D7R WH Series II weigh?
The unladen weight is 27,896 kg.
What engine does the Caterpillar D7R WH Series II have?
6 cylinders, 10,471 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
