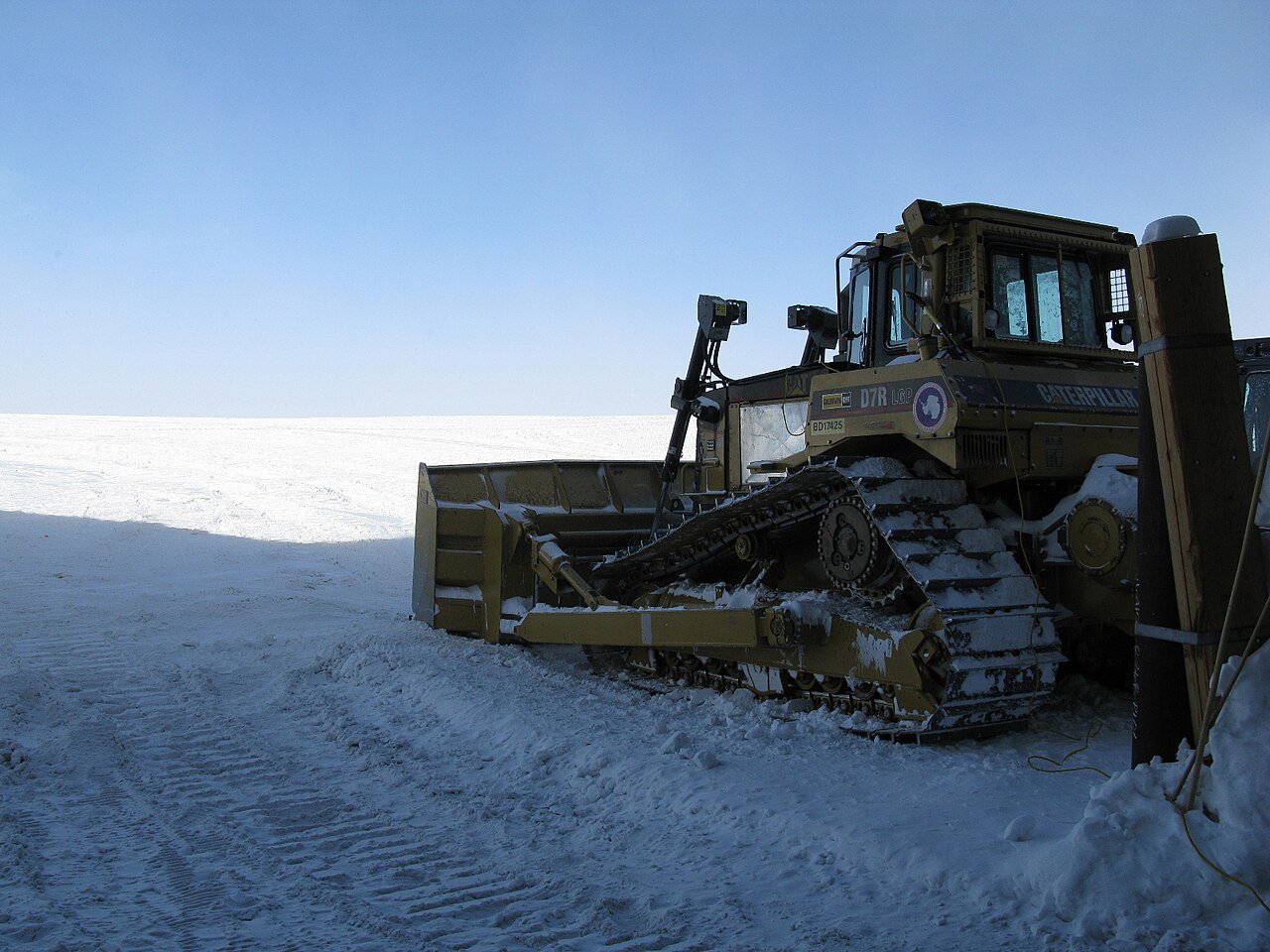

Caterpillar D7R Crawler

Series: D7R

Wikimedia Commons · Public domain · Allan Timm · Dateiseite
The Caterpillar D7R belongs to the Caterpillar Crawler Tractor series. The engine delivers 250.4 hp (171.5 kW), has 6 cylinders, with a displacement of 10,454.9 cm³. Rated speed is 2,100 rpm. The unladen weight is 24,584.7 kg. Ground clearance is 414.5 mm. The tank holds 479.2 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. The pump delivers 177.2 l/min. Working pressure is 227.9 bar. The cooling system holds 75.3 litres. The oil fill is 27.6 litres. The electrical system runs on 24 V. The engine fitted is the 3306T. The Caterpillar Crawler Tractor series covers 152 models. Rated output within it ranges from 48.7 to 948 hp; the D7R sits in the lower part of that range with 250.4 hp. Its immediate neighbours are the D7H below it with 234.2 hp and the D7G SA above it with 253 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Mining equipment. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model3306Tcorrect
Power250.4 hp (171.5 kW)correct
Rated speed2,100 rpmcorrect
Cylinders6correct
Displacement10,454.9 cm³correct
Aspirationturbochargedcorrect
Coolant capacity75.3 lcorrect
Engine oil capacity27.6 lcorrect

Dimensions and weights

Ground clearance414.5correct
Unladen weight24,584.7 kgcorrect

Drivetrain and chassis

Gearbox typePower Shiftcorrect
Forward gears3correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow177.2 l/mincorrect
Hydraulic pressure227.9correct
Fuel tank capacity479.2 lcorrect

Other data

Height3,575.3correct

Where this model stands

Power-to-weight ratio: 7 kW/t (172 kW / 24.6 t)

Stronger than 61% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar D7R have?

The Caterpillar D7R delivers 250 hp.

How much does the Caterpillar D7R weigh?

The unladen weight is 24,585 kg.

What engine does the Caterpillar D7R have?

6 cylinders, 10,455 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
