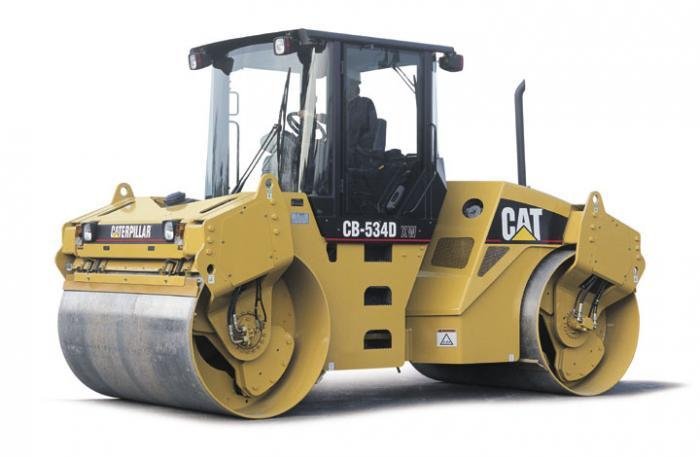

Caterpillar CB534DXW

Series: Caterpillar Vibratory Smooth Drum Roller

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the CB534DXW, Caterpillar offers a model from the Caterpillar Vibratory Smooth Drum Roller series. The engine delivers 131.9 hp (93.1 kW), with a displacement of 4,401.6 cm³. The unladen weight is 11,740 kg. Ground clearance is 306.1 mm. Top speed is 13 km/h. The tank holds 219.2 litres. The hydraulic tank holds 60.2 litres. The cooling system holds 20.1 litres. The oil fill is 9.1 litres. The electrical system runs on 12 V. The engine fitted is the 3054C. The Caterpillar Vibratory Smooth Drum Roller series covers 45 models. Rated output within it ranges from 20.1 to 175.4 hp; the CB534DXW sits in the upper part of that range with 131.9 hp. Its immediate neighbours are the CB534 below it with 126.7 hp and the CS653 above it with 135.9 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Road construction. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine model3054Ccorrect
Power131.9 hp (93.1 kW)correct
Displacement4,401.6 cm³correct
Aspirationturbochargedcorrect
Coolant capacity20.1 lcorrect
Engine oil capacity9.1 lcorrect

Dimensions and weights

Length4,940 mmcorrect
Ground clearance306.1correct
Unladen weight11,740 kgcorrect

Drivetrain and chassis

Top speed13 km/hcorrect
System voltage12 Vcorrect

Working data

Hydraulic oil capacity60.2 lcorrect
Fuel tank capacity219.2 lcorrect

Other data

Cab height3,102.9correct

More machines with this engine (3054C, 16)

Where this model stands

Power-to-weight ratio: 7.9 kW/t (93 kW / 11.7 t)

Stronger than 62% of the road construction in the register — out of 667 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar CB534DXW have?

The Caterpillar CB534DXW delivers 132 hp.

How much does the Caterpillar CB534DXW weigh?

The unladen weight is 11,740 kg.

What engine does the Caterpillar CB534DXW have?

4,402 cm³ displacement.

How fast does the Caterpillar CB534DXW go?

Top speed is 13 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
