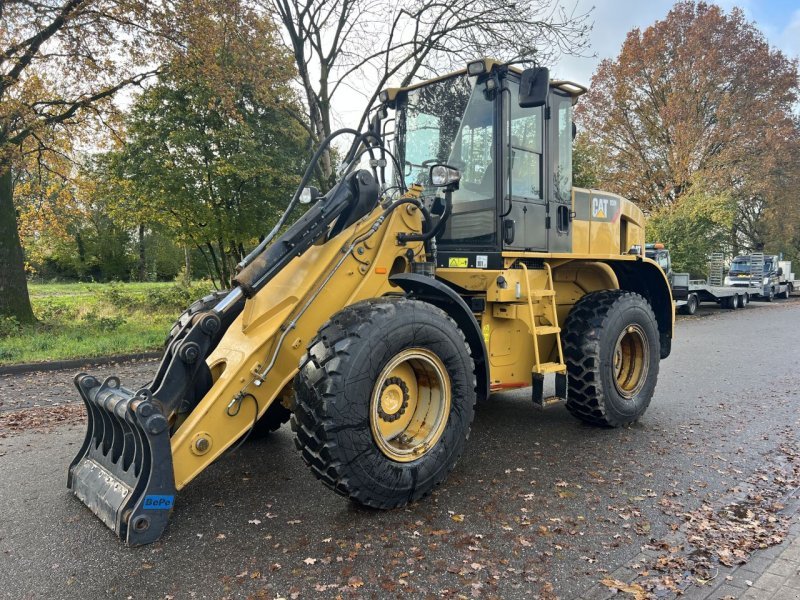

Caterpillar 930H

Series: Caterpillar Wheel Loader

Source: https://www.technikboerse.at/gebraucht/radlader-255/caterpil

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar 930H is a model in the Caterpillar Wheel Loader series. The engine delivers 111.1 kW, has 6 cylinders, with a displacement of 6,604 cm³. Torque is 726.7 Nm. Rated speed is 2,300 rpm. The unladen weight is 13,029.4 kg. The wheelbase measures 2,898.6 mm. Ground clearance is 411.5 mm. The tank holds 224.9 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The pump delivers 219.6 l/min. The hydraulic tank holds 147.6 litres. The cooling system holds 40.1 litres. The engine fitted is the C6,6. Tyre size: 20,5 R25 L3 XHA. The Caterpillar Wheel Loader series covers 78 models. Rated output within it ranges from 29.8 to 1,091 kW; the 930H sits at the bottom of that range with 111.1 kW. Its immediate neighbours are the 928Gz below it with 108.1 kW and the 930G above it with 112 kW. 1091 Caterpillar models across 47 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelC6.6correct
Power111.1 kWcorrect
Rated speed2,300 rpmcorrect
Torque726.7correct
Cylinders6correct
Displacement6,604 cm³correct
Coolant capacity40.1 lcorrect

Dimensions and weights

Wheelbase2,898.6correct
Ground clearance411.5correct
Unladen weight13,029.4 kgcorrect

Drivetrain and chassis

Gearbox typeStandard Transmission max travel speedcorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5 R25 L3 XHAcorrect

Working data

Pump flow219.6 l/mincorrect
Hydraulic oil capacity147.6 lcorrect
Fuel tank capacity224.9 lcorrect

Other data

Height3,276.6correct

Where this model stands

Power-to-weight ratio: 8.5 kW/t (111 kW / 13 t)

Stronger than 57% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 930H have?

The Caterpillar 930H delivers 111 kW.

How much does the Caterpillar 930H weigh?

The unladen weight is 13,029 kg.

What engine does the Caterpillar 930H have?

6 cylinders, 6,604 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
