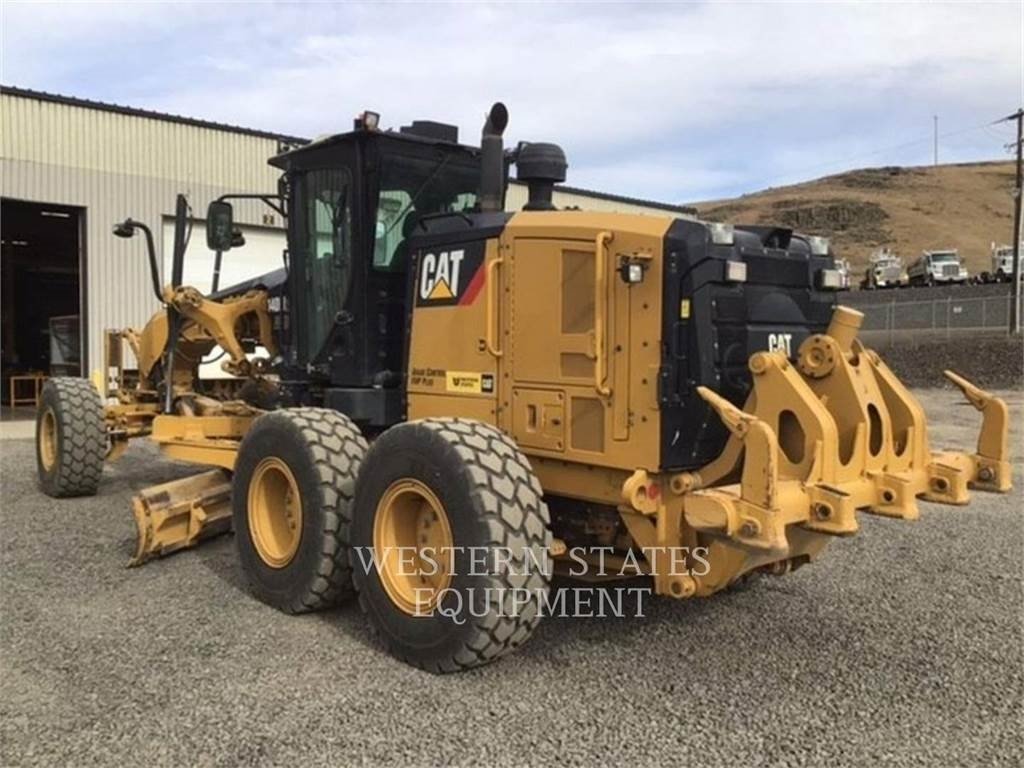

Caterpillar 140M2 AWD

Series: Caterpillar Motor Grader

Source: https://catused.cat.com/ru/%D1%81%D1%82%D1%80%D0%BE%D0%B8%D1

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar 140M2 AWD is a model in the Caterpillar Motor Grader series. The engine with a displacement of 9,299.7 cm³. Rated speed is 2,100 rpm. The unladen weight is 22,583 kg. The wheelbase measures 6,126.5 mm. Ground clearance is 609.6 mm. The tank holds 416 litres. Maximum torque is reached at 2,100 rpm. The hydraulic tank holds 100.3 litres. Working pressure is 241.3 bar. The cooling system holds 56 litres. The engine fitted is the C9,3 ACERT VHP. The Caterpillar Motor Grader series covers 37 models. Unladen weight within it ranges from 12,025 to 66,137.4 kg; the 140M2 AWD sits in the lower part of that range with 22,583 kg. Its immediate neighbours are the 120M2 below it with 22,220.1 kg and the 140M above it with 23,076.5 kg. 1091 Caterpillar models across 47 series are on record. The model is listed under Motor graders. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine modelC9.3 ACERT VHPcorrect
Rated speed2,100 rpmcorrect
Speed at max. torque2,100 rpmcorrect
Displacement9,299.7 cm³correct
Coolant capacity56 lcorrect

Dimensions and weights

Length8,900.2correct
Wheelbase6,126.5correct
Ground clearance609.6correct
Unladen weight22,583 kgcorrect

Drivetrain and chassis

Gearbox typeDirect Drive, powershift transmissioncorrect

Working data

Hydraulic oil capacity100.3 lcorrect
Hydraulic pressure241.3correct
Fuel tank capacity416 lcorrect

Frequently asked questions

How much does the Caterpillar 140M2 AWD weigh?

The unladen weight is 22,583 kg.

What engine does the Caterpillar 140M2 AWD have?

9,300 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
