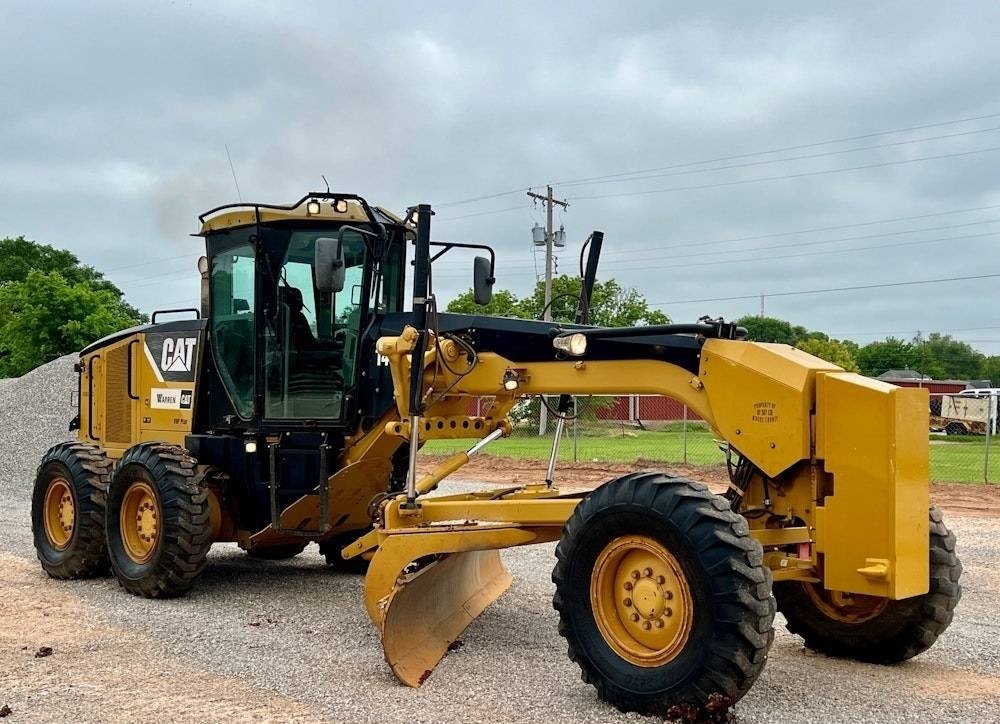

Caterpillar 140M

Series: Caterpillar Motor Grader

Source: https://www.ritchielist.com/construction/motor-graders-motor

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar 140M belongs to the Caterpillar Motor Grader series. The engine delivers 185.5 hp, has 6 cylinders, with a displacement of 7,193.9 cm³. Rated speed is 2,000 rpm. The unladen weight is 23,076.5 kg. The wheelbase measures 6,120.4 mm. Ground clearance is 579.1 mm. The tank holds 416.4 litres. The hydraulic tank holds 60.2 litres. Working pressure is 241.3 bar. The cooling system holds 46.9 litres. The engine fitted is the Cat C7 ACERT. The Caterpillar Motor Grader series covers 37 models. Rated output within it ranges from 126.7 to 540.4 hp; the 140M sits at the bottom of that range with 185.5 hp. Its immediate neighbours are the 12M below it with 175.4 hp and the 140H ES above it with 187.6 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Motor graders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat C7 ACERTcorrect
Power185.5 hpcorrect
Rated speed2,000 rpmcorrect
Cylinders6correct
Displacement7,193.9 cm³correct
Coolant capacity46.9 lcorrect

Dimensions and weights

Length8,711.2correct
Wheelbase6,120.4correct
Ground clearance579.1correct
Unladen weight23,076.5 kgcorrect

Drivetrain and chassis

Gearbox typedirect drive, power shift, countershaftcorrect

Working data

Hydraulic oil capacity60.2 lcorrect
Hydraulic pressure241.3correct
Fuel tank capacity416.4 lcorrect

Where this model stands

Power-to-weight ratio: 5.9 kW/t (136 kW / 23.1 t)

Stronger than 55% of the motor graders in the register — out of 186 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 140M have?

The Caterpillar 140M delivers 186 hp.

How much does the Caterpillar 140M weigh?

The unladen weight is 23,076 kg.

What engine does the Caterpillar 140M have?

6 cylinders, 7,194 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
