Start › Excavators & compaction › Case › WX165

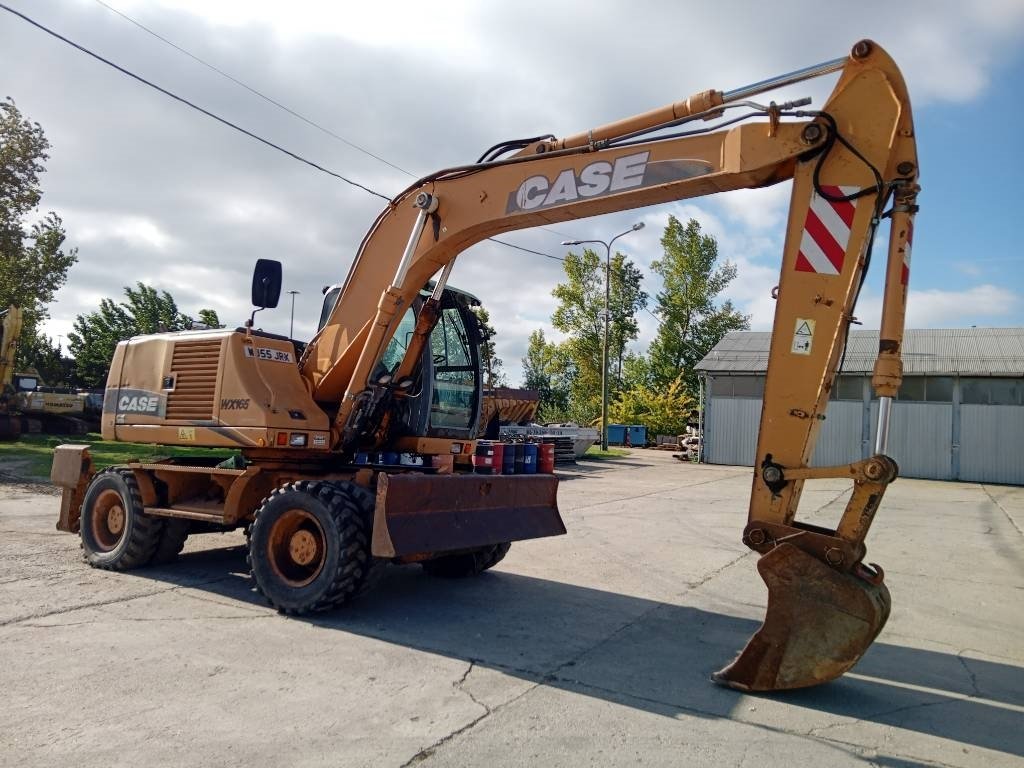

Case WX165

Series: Case Mobile Excavator

Source: https://used.komatsu-africa.com/sites/komatsuafrica/Product.

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the WX165, Case offers a model from the Case Mobile Excavator series. The engine delivers 105.1 kW, has 6 cylinders, with a displacement of 5,901 cm³. Rated speed is 2,000 rpm. The unladen weight is 16,373 kg. The wheelbase measures 2,551.2 mm. Ground clearance is 350.5 mm. The tank holds 270.3 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. The pump delivers 370.2 l/min. The hydraulic tank holds 140.1 litres. Working pressure is 350 bar. The cooling system holds 25.4 litres. The oil fill is 16.3 litres. The engine fitted is the 659TA-M2. Tyre size: 18-19,5XF. The Case Mobile Excavator series covers 7 models. Rated output within it ranges from 73.8 to 129 kW; the WX165 sits in the middle of that range with 105.1 kW. Its immediate neighbours are the WX145 below it with 87.2 kW and the WX185 above it with 117.8 kW. 620 Case models across 22 series are on record. The model is listed under Excavators & compaction. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine model659TA-M2correct
Power105.1 kWcorrect
Rated speed2,000 rpmcorrect
Cylinders6correct
Displacement5,901 cm³correct
AspirationTurbocharged and Intercooledcorrect
Coolant capacity25.4 lcorrect
Engine oil capacity16.3 lcorrect

Dimensions and weights

Wheelbase2,551.2correct
Ground clearance350.5correct
Unladen weight16,373 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre size18-19.5XFcorrect

Working data

Pump flow370.2 l/mincorrect
Hydraulic oil capacity140.1 lcorrect
Hydraulic pressure350 barcorrect
Fuel tank capacity270.3 lcorrect

Other data

Height3,041.9correct

Where this model stands

Power-to-weight ratio: 6.4 kW/t (105 kW / 16.4 t)

Stronger than 44% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case WX165 have?

The Case WX165 delivers 105 kW.

How much does the Case WX165 weigh?

The unladen weight is 16,373 kg.

What engine does the Case WX165 have?

6 cylinders, 5,901 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
