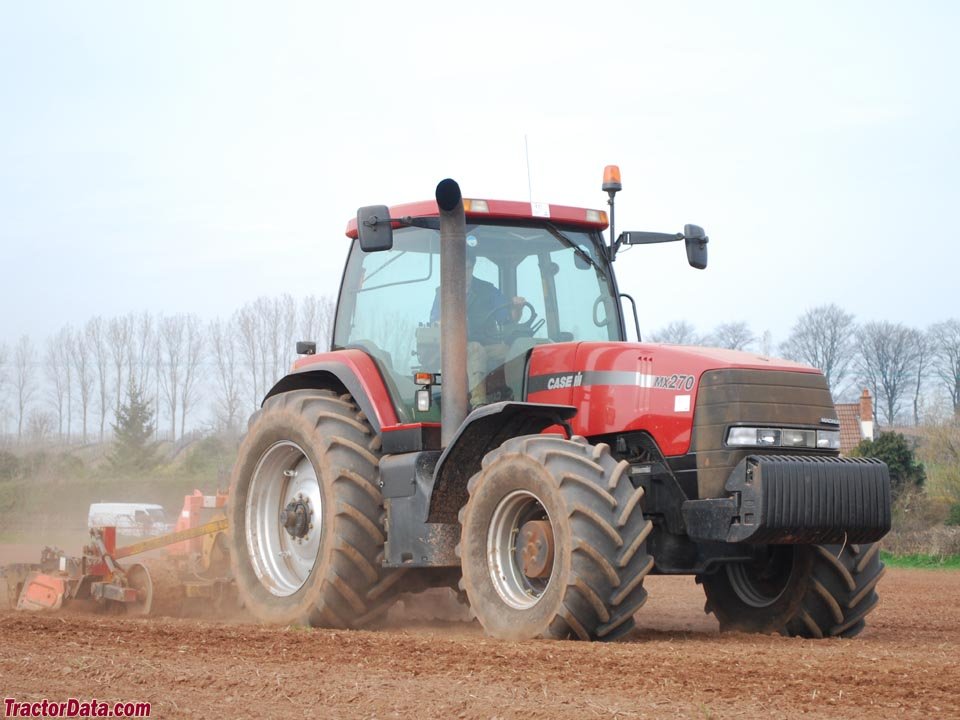

Case IH MX 270
Series: MX
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH MX – the Maxxum and Magnum range from Doncaster and Racine, six-cylinder diesel engines, 82 to 233 kW, models from MX 110 to MX Magnum 220, torque up to 966 Nm
At Case IH, the MX designation covers two related ranges: the smaller Maxxum MX models, built in Doncaster, England, and the large Magnum MX models such as the MX Magnum 200 and MX Magnum 220, from the Racine plant in the US state of Wisconsin. Both ranges replaced the preceding Case and Case IH ranges in the 1990s and marked the transition to today's Puma and Magnum naming; the digits after MX give roughly the output in hp.
Read on 3 more paragraphs
The register lists here 15 versions with 82 to 233 kW (110 to 279 hp), all from six-cylinder diesel engines of 4,380 to 8,268 cm³ displacement and torque of 454 to 966 Nm at rated speeds of 2,000 to 2,200 rpm. Unladen weights range from 5,500 to 10,350 kg, permissible gross weight from 9,000 to 14,000 kg, lengths from 4,300 to 6,040 mm, widths from 2,012 to 3,048 mm and heights from 2,970 to 3,249 mm.
With this span, the MX range covered practically the entire field from multi-purpose tractor to large tractor for heavy tillage and competed directly with John Deere and Fendt in their respective power classes.
When buying an MX model used, transmission condition (synchro or powershift), hydraulic output, the four-wheel-drive transfer case on the large Magnum versions and corrosion on the cab and fenders rank among the key checkpoints; spare parts run through the Case IH dealer network.
Sources: Kennwerte der Modelle Case IH MX, Case IH (Hersteller)
Technical data
Engine
| Power | 279 hp (205.2 kW)correct |
|---|---|
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
Dimensions and weights
| Length | 6,040 mmcorrect |
|---|---|
| Width | 3,048 mmcorrect |
| Height | 3,195 mmcorrect |
| Wheelbase | 3,006 mmcorrect |
| Unladen weight | 10,350 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/4 R and 24 V/6 Rcorrect |
|---|---|
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 606 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.8 kW/t (205 kW / 10.3 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MX 270 have?
The Case IH MX 270 delivers 279 hp.
How much does the Case IH MX 270 weigh?
The unladen weight is 10,350 kg.
What engine does the Case IH MX 270 have?
6 cylinders, 8,268 cm³ displacement.
How fast does the Case IH MX 270 go?
Top speed is 40 km/h.
What are the dimensions of the Case IH MX 270?
6,040 mm × 3,048 mm × 3,195 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
