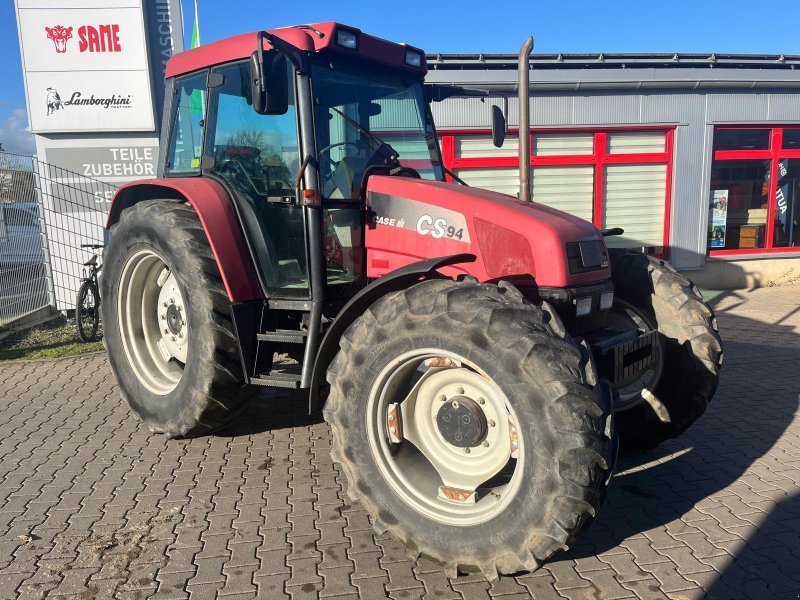

Case IH CS94
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH (cnh) CS94 is a tractor from Case IH (cnh). The four-cylinder engine produces 70 kW. Rated speed is 2,300 rpm.
Drive type: MFWD.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 17 to 400 kW; with 70 kW, the CS94 sits in the lower third. Directly alongside are the JX1095N with 69 kW below and the JXU 95 with 71 kW above.
Technical data
Engine
| Engine make | Valmet Diesel; MWMcorrect |
|---|---|
| Engine model | 420.83; WD 401.85 (MWM)correct |
| Fuel | dieselcorrect |
| Power | 94 hp (70 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 268.3 cu in; 253.6 cu in (MWM)correct |
| Bore | 4.25 in; 4.13 in (MWM)correct |
| Stroke | 4.72 in; 4.72 in (MWM)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 97.6 in (2 479 mm)correct |
|---|---|
| Unladen weight | 8,600 lbs (3900,9 kg)correct |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|
Working data
| Lifting capacity | 10,804.5 lbs (4900,8 kg)correct |
|---|---|
| Fuel tank capacity | 39.6 galcorrect |
| PTO speed | 430/540/ 750/1000correct |
Origin and approval
| Plant | St. Valentin, Austriacorrect |
|---|
Frequently asked questions
How much power does the Case IH CS94 have?
The Case IH CS94 delivers 94 hp.
What engine does the Case IH CS94 have?
4 cylinders, diesel.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
