Case IH 1694
Built: 1985-1988 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

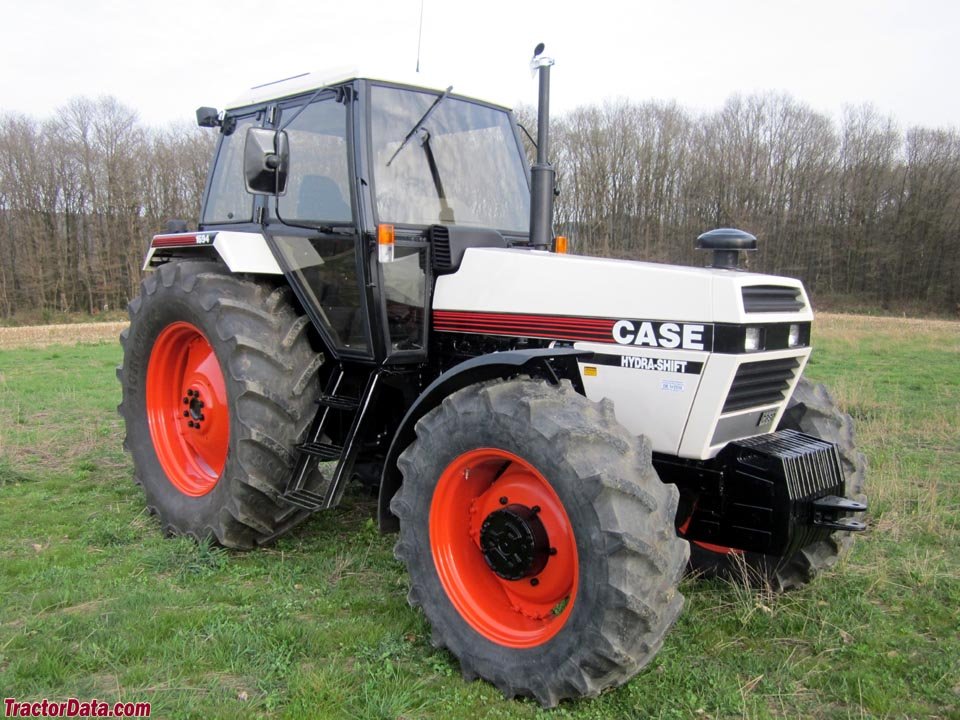

The Case IH (cnh) 1694 is a tractor built in 1985-1988. The six-cylinder engine produces 67 kW. Rated speed is 2,350 rpm.
It runs with MFWD.
The engine is water-cooled. The predecessor was the Case 1694. Within the range, rated power spans from 17 to 400 kW; with 67 kW, the 1694 sits in the lower third. Directly alongside are the Maxxum with 66 kW below and the JX1095N with 69 kW above.
Technical data
Engine
| Engine make | Casecorrect |
|---|---|
| Engine model | AD6/55Tcorrect |
| Power | 90 hp (67 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,392 cccorrect |
| Bore | 100correct |
| Stroke | 114correct |
| Cooling | water-cooledcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 4correct |
Origin and approval
| Plant | Englandcorrect |
|---|---|
| Predecessor | Case 1694correct |
Frequently asked questions
How much power does the Case IH 1694 have?
The Case IH 1694 delivers 90 hp.
What engine does the Case IH 1694 have?
6 cylinders.
When was the Case IH 1694 built?
Production years: 1985-1988.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
