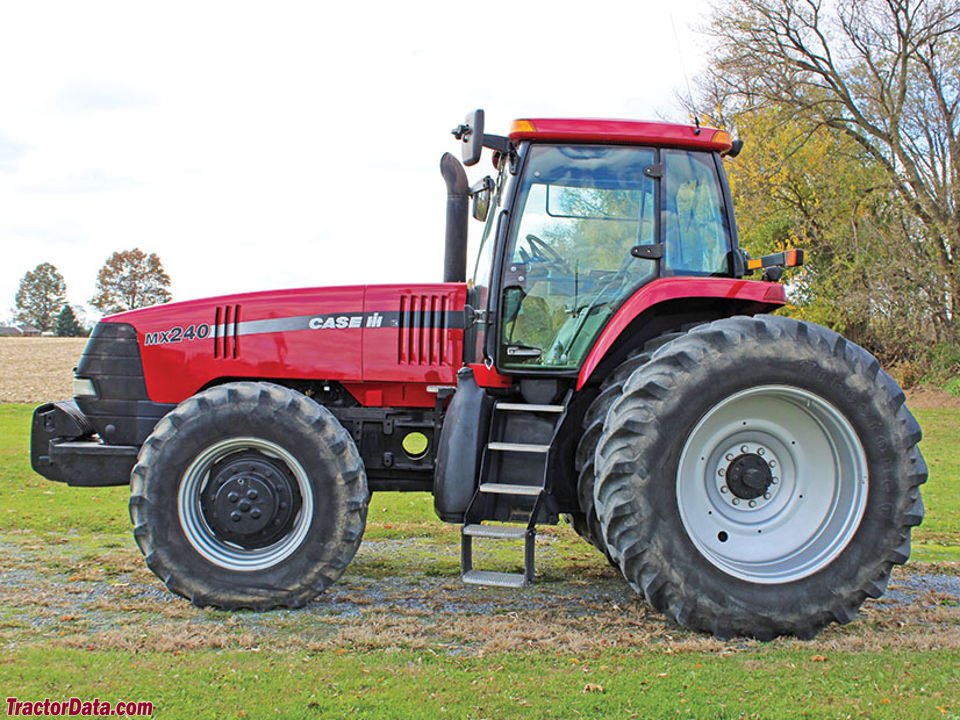

Case IH MX 240 MAGNUM
Built: 1999–2002 · Series: MAGNUM MX-Baureihe
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH MX Magnum — the third step of a long line, 1999 to 2002, 133.9 to 205.2 kW and Operating Weight from 8,725 to 10,350 kg
The MX range is not a new design but a continuation of the Magnum concept. With it Case IH gave the visually ageing Magnum new life — the same base machine, revised appearance and equipment.
Read on 4 more paragraphs
To place the MX models it helps to look back. The Magnum was presented in 1987 as successor to the International 50, with series production from 1988. The first 7100 range covered the 7110 to 7140 with a turbocharged six-cylinder of 8.3 litres and 155 to 230 hp rated output. In 1997 it became the 7200 range, closed at the top by the 7250.
The MX models carry their power in the name more directly than their predecessors: an MX 180 denotes the 180 hp class, an MX 240 correspondingly higher. That makes comparison within the range easier than with the four-digit numbers of the 7100 and 7200.
For the used market the long line means above all one thing: a Magnum is a well-known machine with a long parts history. Anyone examining an MX is examining a design that had already been in the field for over a decade by then — with everything that implies in experience and in wear.
With rated outputs from 133.9 to 205.2 kW, the MX Magnum models fell within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute for heavy implements.
Sources: SpecCodex register, model data: Case IH MX Magnum, Case IH
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 246 hp (180.9 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
| Bore | 114 mmcorrect |
| Stroke | 135 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,640 mmcorrect |
|---|---|
| Width | 3,048 mmcorrect |
| Height | 3,249 mmcorrect |
| Wheelbase | 3,006 mmcorrect |
| Ground clearance | 378 mmcorrect |
| Unladen weight | 9,414 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/4 R and 24 V/6 Rcorrect |
| Front tyres | 16.9 R 30 AScorrect |
| Rear tyres | 20.8 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.2 kW/t (181 kW / 9.4 t)
Power class: Heavy (> 180 hp)
Stronger than 95% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MX 240 MAGNUM have?
The Case IH MX 240 MAGNUM delivers 246 hp.
How much does the Case IH MX 240 MAGNUM weigh?
The unladen weight is 9,414 kg.
What engine does the Case IH MX 240 MAGNUM have?
6 cylinders, 8,268 cm³ displacement, Diesel.
How fast does the Case IH MX 240 MAGNUM go?
Top speed is 40 km/h.
What are the dimensions of the Case IH MX 240 MAGNUM?
5,640 mm × 3,048 mm × 3,249 mm.
When was the Case IH MX 240 MAGNUM built?
Production years: 1999–2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
