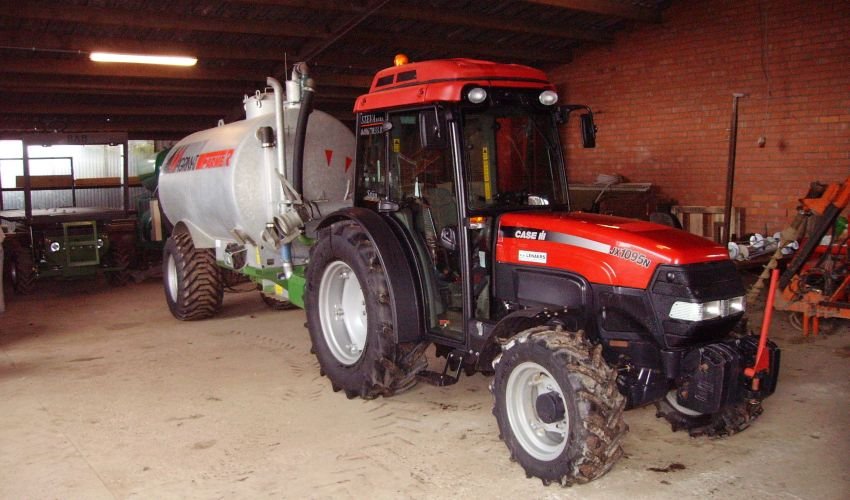

Case IH JX1095N MFWD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Case IH JX1095N belongs to the Case IH MFWD Tractor series. 92 hp (67.9 kW) is what the four-cylinder engine gets out of 3.9 litres. Rated power is reached at 2,300 rpm.
Top speed is 30 km/h. It is 1.36 m wide. Unladen weight is 2,770 kg.
Within the range, rated power spans from 60.8 to 141 hp; with 92.3 hp, the JX1095N sits in the mid-field. Directly alongside are the Farmall 95 with 91.2 hp below and the Farmall 95C with 96.3 hp above.
Technical data
Engine
| Power | 92.3 hp (67.9 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 358.1correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,900.1 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Width | 1,359.4correct |
|---|---|
| Wheelbase | 2,176.3correct |
| Ground clearance | 266.2correct |
| Unladen weight | 2,770 kgcorrect |
Drivetrain and chassis
| Gearbox type | 16 x 16 w/ mechanical gearbox shuttlecorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Top speed | 29.6 km/hcorrect |
Working data
| Pump flow | 88.6 l/mincorrect |
|---|---|
| Fuel tank capacity | 56.8 lcorrect |
Where this model stands
Power-to-weight ratio: 24.5 kW/t (68 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 64% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH JX1095N have?
The Case IH JX1095N delivers 92.3 hp.
How much does the Case IH JX1095N weigh?
The unladen weight is 2,770 kg.
What engine does the Case IH JX1095N have?
4 cylinders, 3,900 cm³ displacement.
How fast does the Case IH JX1095N go?
Top speed is 29.6 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
