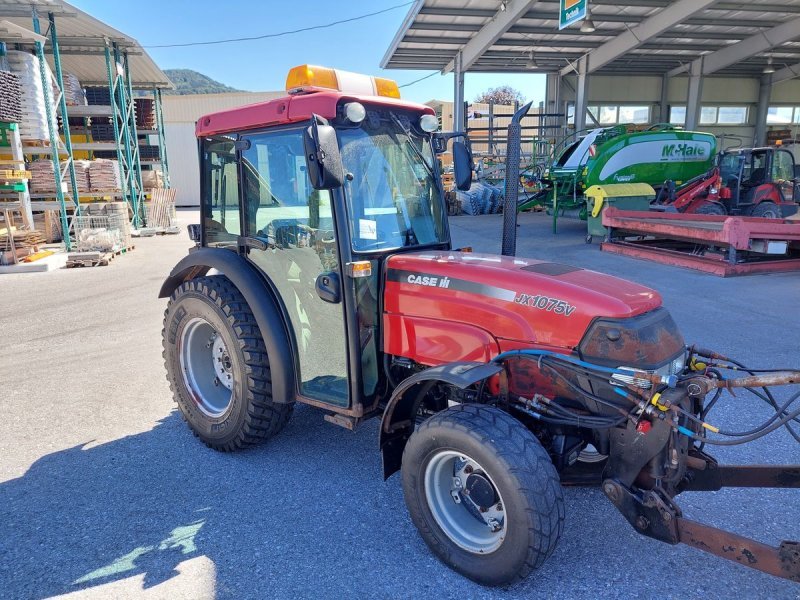

Case IH JX1075N MFWD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH JX1075N is a tractor from the Case IH MFWD Tractor series. Power comes from a three-cylinder engine; from 2.9 litres it draws 76 hp (55.9 kW). Rated speed is 2,300 rpm.
It will not go faster than 30 km/h — a working pace, not a travelling one. It measures 1.36 m across. Unladen, it tips the scales at 2,670 kg.
Within the range, rated power spans from 60.8 to 141 hp; with 76 hp, the JX1075N sits in the lower third. Directly alongside are the JX80 with 73 hp below and the Farmall 75C with 77.1 hp above.
Technical data
Engine
| Power | 76 hp (55.9 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 300correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,900.5 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Width | 1,359.4correct |
|---|---|
| Wheelbase | 2,060.4correct |
| Ground clearance | 266.2correct |
| Unladen weight | 2,669.8 kgcorrect |
Drivetrain and chassis
| Gearbox type | 16 x 16 w/ mechanical gearbox shuttlecorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Top speed | 29.6 km/hcorrect |
Working data
| Pump flow | 88.6 l/mincorrect |
|---|---|
| Fuel tank capacity | 56.8 lcorrect |
Where this model stands
Power-to-weight ratio: 20.9 kW/t (56 kW / 2.7 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH JX1075N have?
The Case IH JX1075N delivers 76 hp.
How much does the Case IH JX1075N weigh?
The unladen weight is 2,670 kg.
What engine does the Case IH JX1075N have?
3 cylinders, 2,900 cm³ displacement.
How fast does the Case IH JX1075N go?
Top speed is 29.6 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
