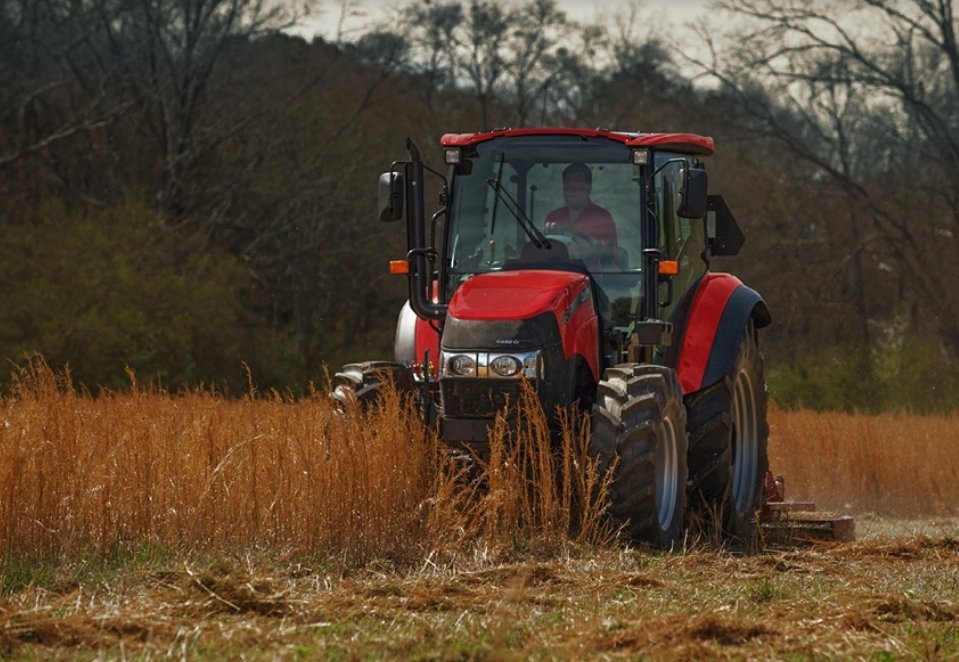

Case IH Farmall 90 2WD
Series: Farmall
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Farmall 90 is a tractor from the Case IH 2WD Tractor series. The four-cylinder engine, displacing 4.5 litres, produces 85 hp (62.6 kW). Rated output is reached at 2,300 rpm, so it works in the lower rev range.
Unladen weight is 2,886 kg. Wheelbase is 2.31 m.
Within the range, rated power spans from 62.9 to 127 hp; with 85.2 hp, the Farmall 90 sits in the mid-field. Directly alongside are the Farmall 75C with 77.1 hp below and the Farmall 85U with 86.2 hp above.
Technical data
Engine
| Power | 85.2 hp (62.6 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,313.4correct |
|---|---|
| Unladen weight | 2,886.2 kgcorrect |
Drivetrain and chassis
| Gearbox type | 12x12 w / mechanical gearbox shuttlecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
Working data
| Pump flow | 82.1 l/mincorrect |
|---|---|
| Fuel tank capacity | 90.1 lcorrect |
Where this model stands
Power-to-weight ratio: 21.7 kW/t (63 kW / 2.9 t)
Power class: Universal (40–100 hp)
Stronger than 60% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Farmall 90 have?
The Case IH Farmall 90 delivers 85.2 hp.
How much does the Case IH Farmall 90 weigh?
The unladen weight is 2,886 kg.
What engine does the Case IH Farmall 90 have?
4 cylinders, 4,502 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
