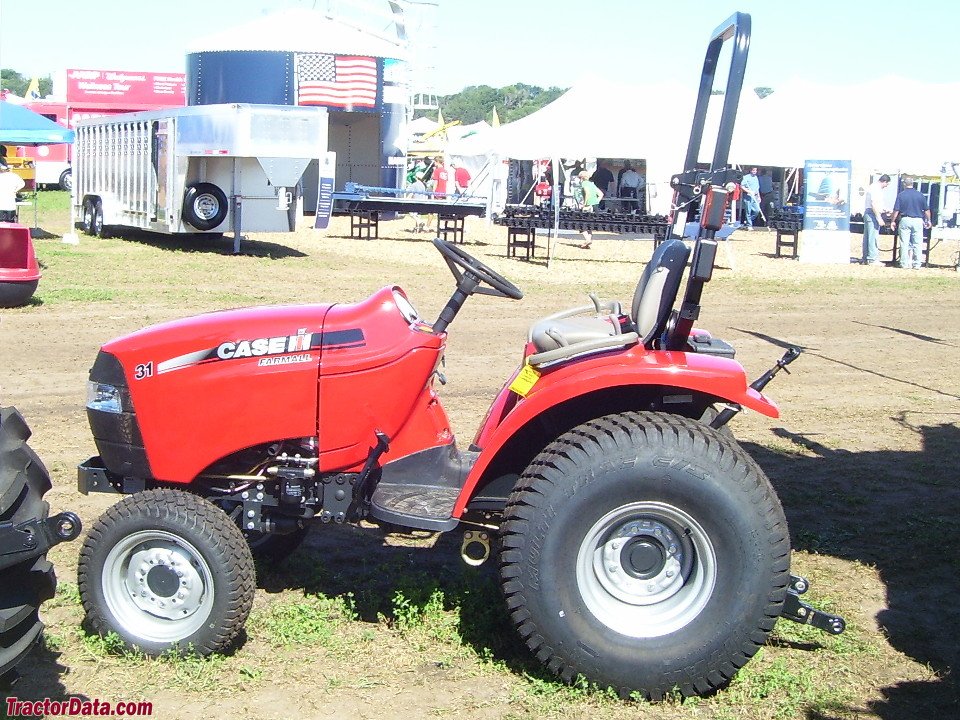

Case IH Farmall 31 Utility
Series: Farmall
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Farmall 31 is a tractor from the Case IH Utility Tractor series. Power comes from a three-cylinder engine; from 1.5 litres it draws 31 hp (23.1 kW). Rated power arrives at 2,600 rpm — the engine pulls from low down rather than needing to be revved.
It measures 1.38 m across. Unladen, it tips the scales at 1,154 kg.
Within the range, rated power spans from 31.4 to 55.8 hp; with 31.4 hp, the Farmall 31 sits at the bottom end. The next one up is the Farmall 35 with 35.5 hp.
Technical data
Engine
| Power | 31.4 hp (23.1 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,501.1 cm³correct |
Dimensions and weights
| Width | 1,380.7correct |
|---|---|
| Wheelbase | 1,600.2correct |
| Unladen weight | 1,153.9 kgcorrect |
Drivetrain and chassis
| Gearbox type | hydrostatic transmissioncorrect |
|---|
Working data
| Pump flow | 46.6 l/mincorrect |
|---|---|
| Fuel tank capacity | 27.6 lcorrect |
Where this model stands
Power-to-weight ratio: 20 kW/t (23 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Farmall 31 have?
The Case IH Farmall 31 delivers 31.4 hp.
How much does the Case IH Farmall 31 weigh?
The unladen weight is 1,154 kg.
What engine does the Case IH Farmall 31 have?
3 cylinders, 1,501 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
