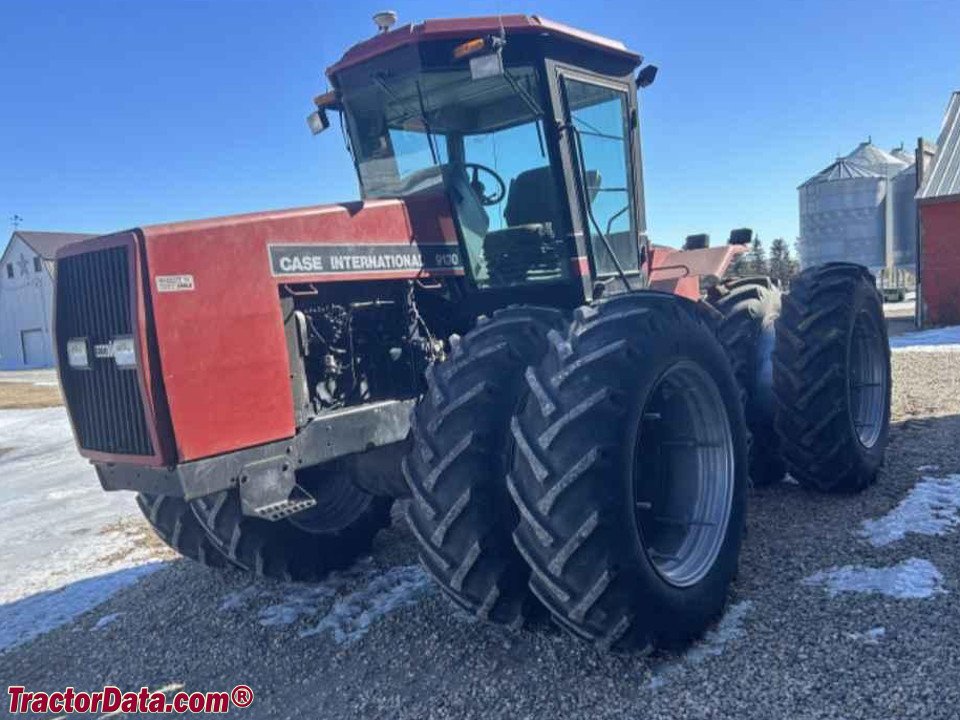

Case IH 9130
Bauzeit: 1987–1990 · Baureihe: 9100 er-Baureihe
Technische Daten
| Construction | Knicklenker-Bauweise |
| Cooling | Wasserkühlung |
| Cylinders | 6 |
| Displacement cm3 | 8268 cm3 |
| Drive type | Allradantrieb |
| Fuel | Diesel |
| Gearbox | 12 V/2 R |
| Ground clearance mm | 368 mm |
| Height mm | 3290 mm |
| Length mm | 6210 mm |
| Power km | 220 KM |
| Power kw | 161.8 kW |
| Rated rpm | 2.100 obr./min |
| Tires front | 18.4-38 AS |
| Tires rear | 18.4-38 AS |
| Top speed kmh | 30 km/h |
| Weight kg | 9560 kg |
| Wheelbase mm | 3058 mm |
| Width mm | 3040 mm |
