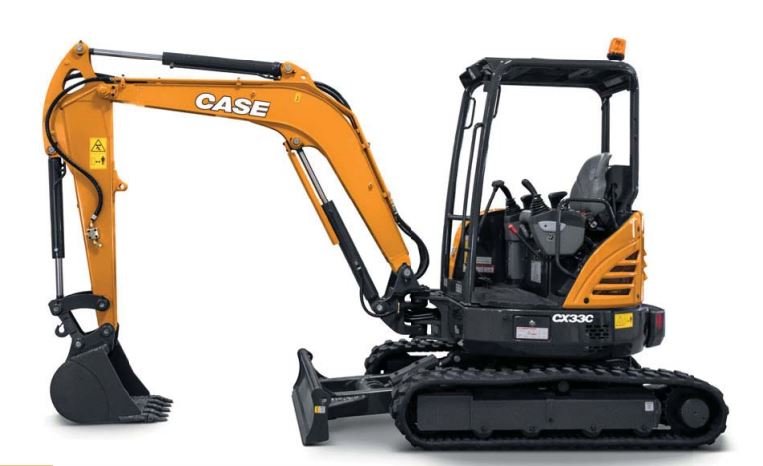

Case CX33C

Series: Case Mini Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case Mini Excavator series from Case includes the CX33C. The engine delivers 24.7 hp (17.7 kW), has 3 cylinders, with a displacement of 1,642 cm³. Torque is 94.2 Nm. Rated speed is 2,200 rpm. The unladen weight is 3,355 kg. Ground clearance is 292.6 mm. Top speed is 4.2 km/h. Maximum torque is reached at 1,200 rpm. The engine fitted is the Yanmar 3TNV88F-ESHYB. The Case Mini Excavator series covers 28 models. Rated output within it ranges from 15.2 to 67.8 hp; the CX33C sits in the lower part of that range with 24.7 hp. Its immediate neighbours are the CX17C below it with 17 hp and the CX26C above it with 25.1 hp. 620 Case models across 22 series are on record. The model is listed under Excavators & compaction. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine model	Yanmar 3TNV88F-ESHYBcorrect
Power	24.7 hp (17.7 kW)correct
Rated speed	2,200 rpmcorrect
Torque	94.2correct
Speed at max. torque	1,200 rpmcorrect
Cylinders	3correct
Displacement	1,642 cm³correct

Dimensions and weights

Ground clearance	292.6correct
Unladen weight	3,355 kgcorrect

Drivetrain and chassis

Top speed	4.2 km/hcorrect

Other data

Height	2,502.4correct

Where this model stands

Power-to-weight ratio: 5.3 kW/t (18 kW / 3.4 t)

Stronger than 49% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case CX33C have?

The Case CX33C delivers 24.7 hp.

How much does the Case CX33C weigh?

The unladen weight is 3,355 kg.

What engine does the Case CX33C have?

3 cylinders, 1,642 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
