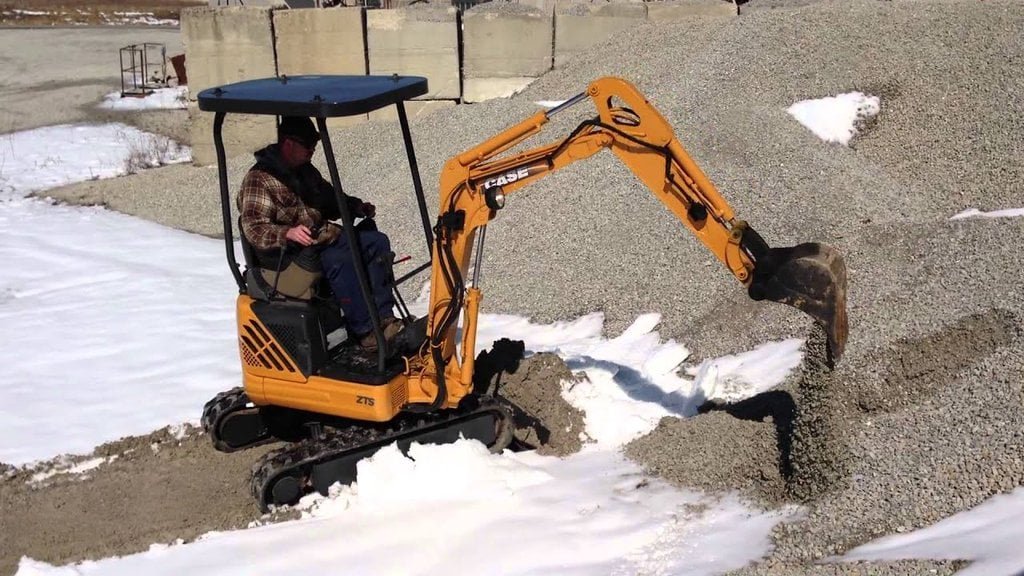

Case CX14

Series: Case Mini Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The CX14 from Case is part of the Case Mini Excavator series. The engine delivers 8.9 kW, has 3 cylinders, with a displacement of 783.3 cm³. Torque is 46.1 Nm. Rated speed is 2,000 rpm. The unladen weight is 1,469.6 kg. Ground clearance is 176.8 mm. The tank holds 15.1 litres. Maximum torque is reached at 1,500 rpm. The pump delivers 29.5 l/min. The hydraulic tank holds 17 litres. Working pressure is 206 bar. The cooling system holds 2.6 litres. The oil fill is 3.4 litres. The electrical system runs on 12 V. The engine fitted is the 3TNE68. The Case Mini Excavator series covers 28 models. Rated output within it ranges from 8.9 to 65.6 kW; the CX14 sits at the bottom of that range with 8.9 kW. Its immediate neighbours are the CX15B Series 2 above it with 11.2 kW. 620 Case models across 22 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine model	3TNE68correct
Power	8.9 kWcorrect
Rated speed	2,000 rpmcorrect
Torque	46.1correct
Speed at max. torque	1,500 rpmcorrect
Cylinders	3correct
Displacement	783.3 cm³correct
Coolant capacity	2.6 lcorrect
Engine oil capacity	3.4 lcorrect

Dimensions and weights

Ground clearance	176.8correct
Unladen weight	1,469.6 kgcorrect

Drivetrain and chassis

System voltage	12 Vcorrect

Working data

Pump flow	29.5 l/mincorrect
Hydraulic oil capacity	17 lcorrect
Hydraulic pressure	206 barcorrect
Fuel tank capacity	15.1 lcorrect

Other data

Height	2,200.7correct

Where this model stands

Power-to-weight ratio: 6.1 kW/t (9 kW / 1.5 t)

Stronger than 4% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case CX14 have?

The Case CX14 delivers 8.9 kW.

How much does the Case CX14 weigh?

The unladen weight is 1,470 kg.

What engine does the Case CX14 have?

3 cylinders, 783 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
