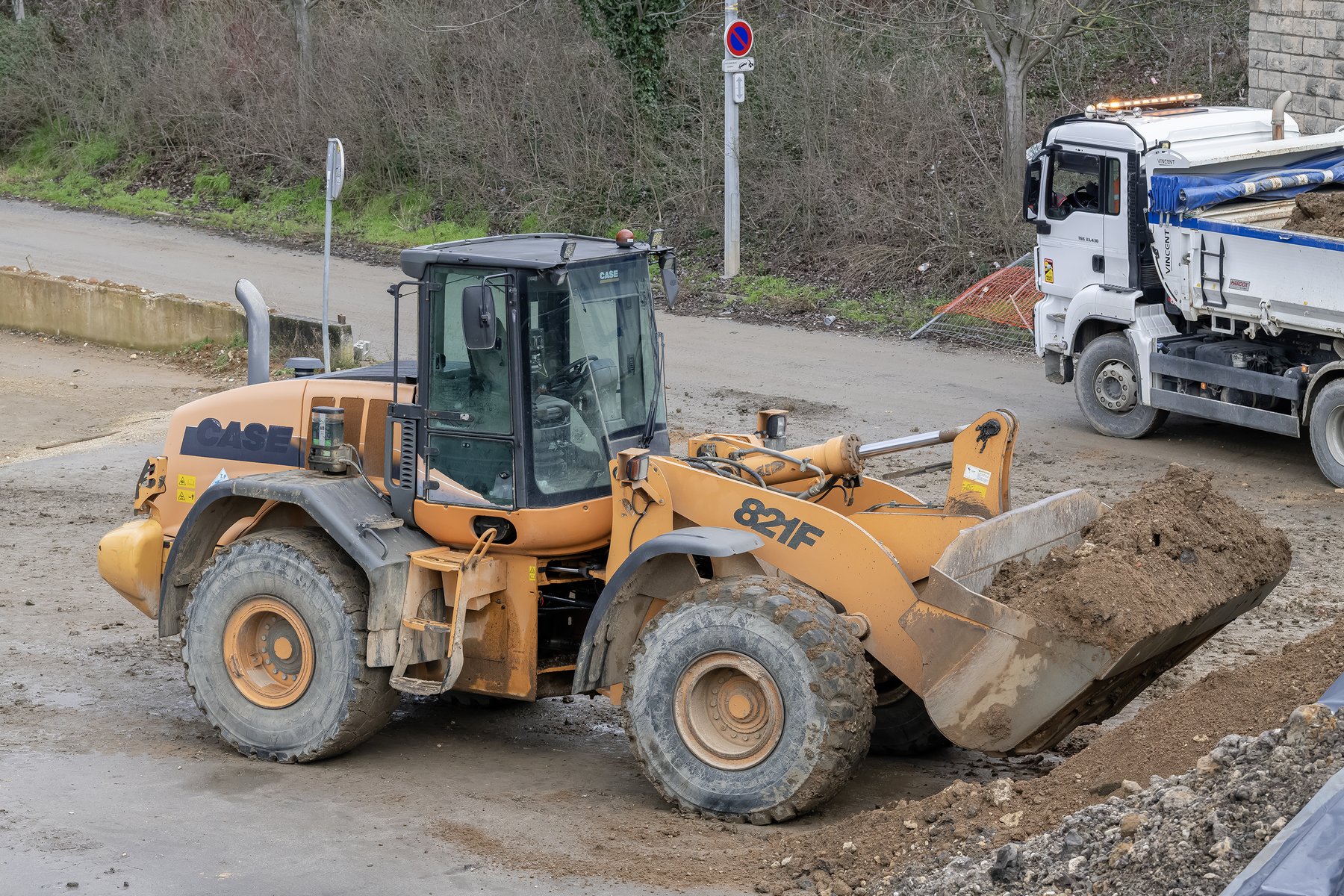

Case 821F

Series: Case Wheel Loader

Source: https://commons.wikimedia.org/w/index.php?curid=133483043

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 821F from Case is part of the Case Wheel Loader series. The engine delivers 234.2 hp (152.9 kW), has 6 cylinders, with a displacement of 6,735.1 cm³. Torque is 1,145.7 Nm. Rated speed is 1,800 rpm. The unladen weight is 17,632.9 kg. The wheelbase measures 3,340.6 mm. Ground clearance is 417.6 mm. The tank holds 288.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,300 rpm. The pump delivers 120.4 l/min. The hydraulic tank holds 177.9 litres. The cooling system holds 30.3 litres. The electrical system runs on 24 V. The engine fitted is the FPT F4HFE613. Tyre size: 23,5 x 25 L3. The Case Wheel Loader series covers 71 models. Rated output within it ranges from 55 to 359.9 hp; the 821F sits in the middle of that range with 234.2 hp. Its immediate neighbours are the 821G below it with 233.2 hp and the 921F above it with 258.5 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFPT F4HFE613correct
Power234.2 hp (152.9 kW)correct
Rated speed1,800 rpmcorrect
Torque1,145.7correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement6,735.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity30.3 lcorrect

Dimensions and weights

Wheelbase3,340.6correct
Ground clearance417.6correct
Unladen weight17,632.9 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre size23.5 x 25 L3correct
System voltage24 Vcorrect

Working data

Pump flow120.4 l/mincorrect
Hydraulic oil capacity177.9 lcorrect
Fuel tank capacity288.1 lcorrect

Other data

Height3,450.3correct

Where this model stands

Power-to-weight ratio: 8.7 kW/t (153 kW / 17.6 t)

Stronger than 75% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 821F have?

The Case 821F delivers 234 hp.

How much does the Case 821F weigh?

The unladen weight is 17,633 kg.

What engine does the Case 821F have?

6 cylinders, 6,735 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
