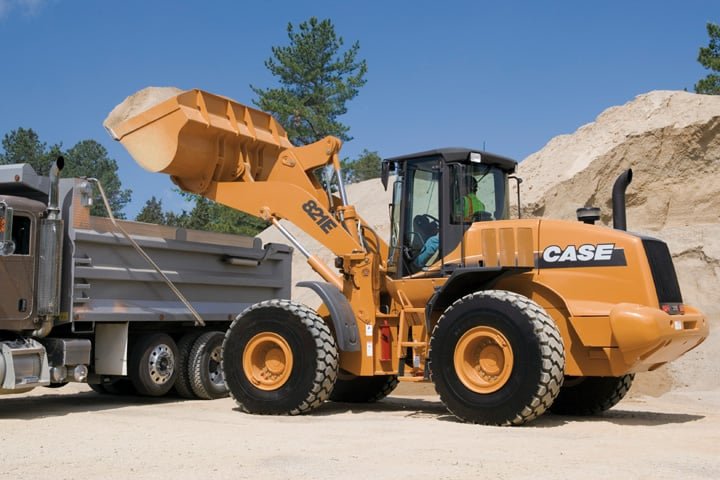

Case 821E

Series: Case Wheel Loader

Source: https://www.ecrater.com/p/40748821/case-821e-tier-3-wheel-lo

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 821E, Case offers a model from the Case Wheel Loader series. The engine delivers 212.9 hp (147.6 kW), has 6 cylinders, with a displacement of 6,735.1 cm³. Torque is 981.6 Nm. Rated speed is 1,800 rpm. The unladen weight is 17,165.7 kg. The wheelbase measures 3,346.7 mm. Ground clearance is 417.6 mm. The tank holds 287.7 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 119.6 l/min. The hydraulic tank holds 174.1 litres. The cooling system holds 419.4 litres. The electrical system runs on 24 V. The engine fitted is the Family IV. 667TA/EBD Tier III Certified. Tyre size: 23,5 x 25 l2 bias. The Case Wheel Loader series covers 71 models. Rated output within it ranges from 55 to 359.9 hp; the 821E sits in the middle of that range with 212.9 hp. Its immediate neighbours are the 821CXR below it with 206.8 hp and the 821FXR above it with 233.2 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFamily IV, 667TA/EBD Tier III Certifiedcorrect
Power212.9 hp (147.6 kW)correct
Rated speed1,800 rpmcorrect
Torque981.6correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement6,735.1 cm³correct
AspirationTurbocharged and Aftercooledcorrect
Coolant capacity419.4 lcorrect

Dimensions and weights

Wheelbase3,346.7correct
Ground clearance417.6correct
Unladen weight17,165.7 kgcorrect

Drivetrain and chassis

Gearbox type4F/3R Proportional w/Electronic Control Modulecorrect
Forward gears4correct
Reverse gears3correct
Tyre size23.5 x 25 l2 biascorrect
System voltage24 Vcorrect

Working data

Pump flow119.6 l/mincorrect
Hydraulic oil capacity174.1 lcorrect
Fuel tank capacity287.7 lcorrect

Other data

Height3,474.7correct

Where this model stands

Power-to-weight ratio: 8.6 kW/t (148 kW / 17.2 t)

Stronger than 73% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 821E have?

The Case 821E delivers 213 hp.

How much does the Case 821E weigh?

The unladen weight is 17,166 kg.

What engine does the Case 821E have?

6 cylinders, 6,735 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
