Carnehl Pattensen CTK/5
Built: 2002 · Series: Other models
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

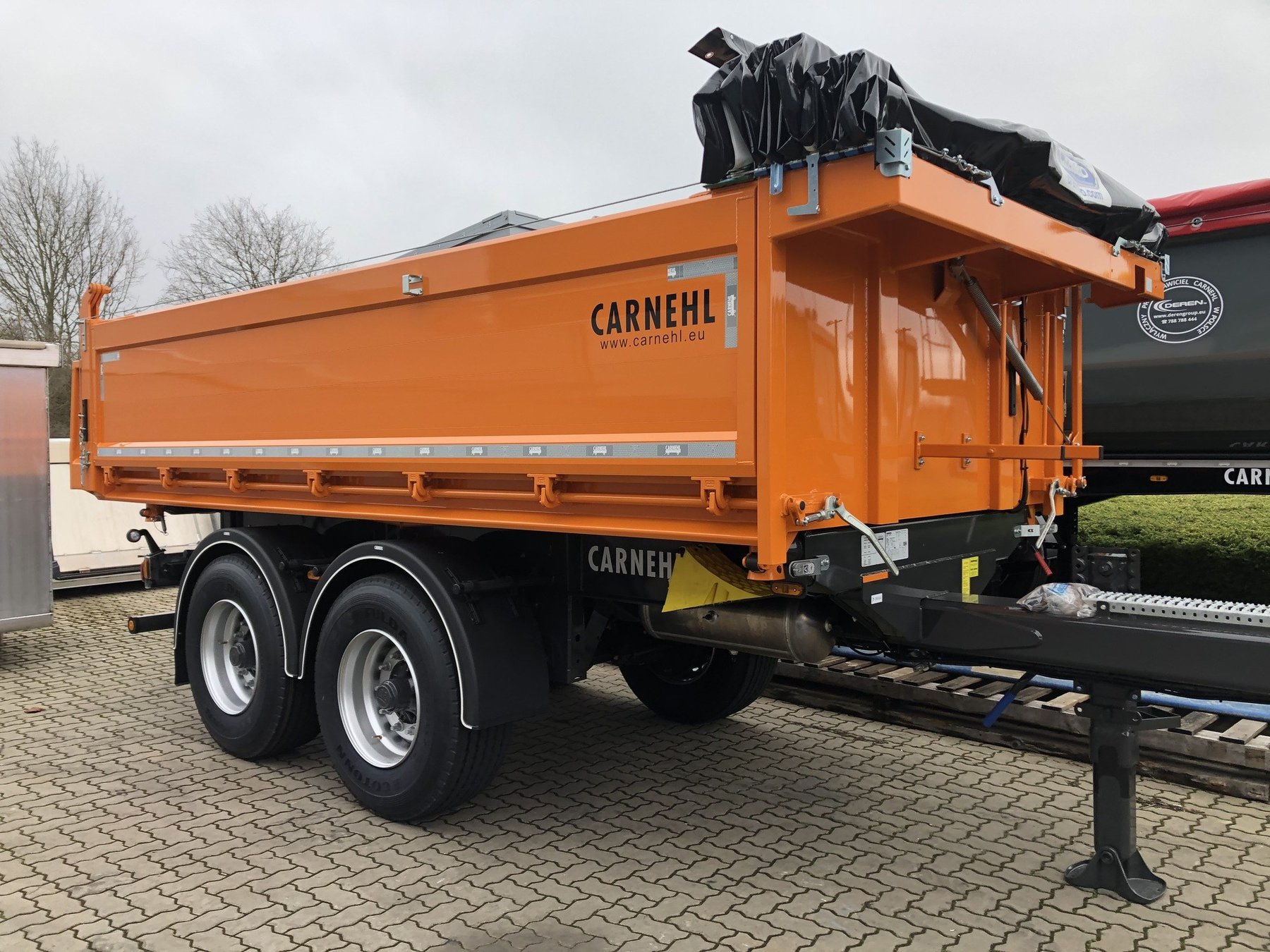

Carnehl Pattensen CTK/5 – class O4 centre-axle trailer: 18,000 kg gross weight, 4,500 kg unladen weight, 1,310 mm wheelbase, model year 2002
With a gross weight of 18,000 kg, the CTK/5 from Carnehl Pattensen falls into EU class O4, the heavy trailers above 10 tonnes. The trailer is registered in the Netherlands and was built in 2002.
Read on 3 more paragraphs
At a length of 7,250 mm and a width of 2,430 mm, it weighs 4,500 kg unladen and carries 13,500 kg of payload, exactly three-quarters of its gross weight. The very short wheelbase of just 1,310 mm against a length of 7,250 mm shows a closely spaced axle group under the centre of the body – the layout of a centre-axle trailer, which carries its load over its own axle group rather than on a front coupling.
Centre-axle trailers of this weight class load the tow vehicle's coupling much less than a drawbar trailer of the same weight with a front axle and therefore track more calmly, especially under heavy load. It runs with an air-brake system, required from class O3 upward.
What counts on a used example is the condition of the axle bearings and the closely spaced axle group, the state of the brake system, rust on the frame and side members, the condition of the tow eye and its bearing, and – particularly important on a centre-axle trailer – even loading, since incorrect load distribution on this layout directly changes the nose weight on the coupling. Given the age of the vehicle, welded repairs on the frame near the axle group are also worth a close inspection, since they can mask earlier overload damage.
Sources: SpecCodex-Register: Kennwerte des Modells Carnehl Pattensen CTK/5
Technical data
Dimensions and weights
| Length | 7,250 mmcorrect |
|---|---|
| Width | 2,430 mmcorrect |
| Wheelbase | 1,310 mmcorrect |
| Unladen weight | 4,500 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Carnehl Pattensen CTK/5 weigh?
The unladen weight is 4,500 kg.
What is the gross vehicle weight of the Carnehl Pattensen CTK/5?
18,000 kg.
Up to what speed is the Carnehl Pattensen CTK/5 approved?
Approved up to 100 km/h.
What are the dimensions of the Carnehl Pattensen CTK/5?
7,250 mm × 2,430 mm.
When was the Carnehl Pattensen CTK/5 built?
Production years: 2002.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
