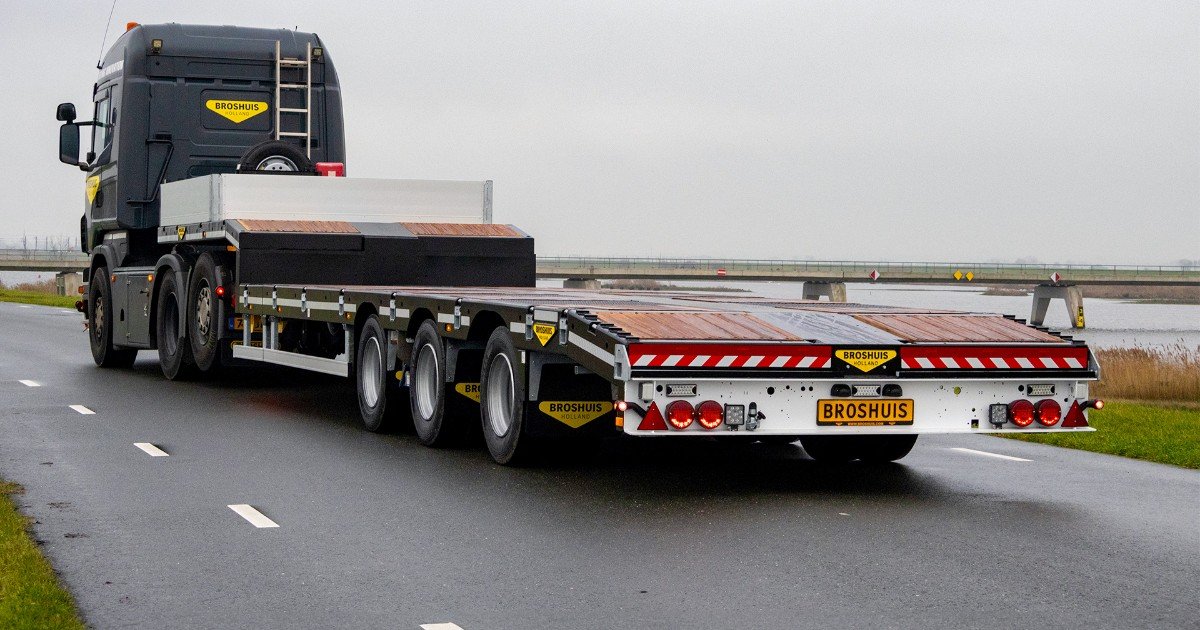

Broshuis 3ASD-18-30
Built: 2017-2018 · Series: 3ASD-18-30
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Broshuis – 3ASD-18-30: the collective page of the three-axle semi low-loader type from the Kampen maker outside the named sub-variants, 9.4 to 12.47 t unladen weight, 45 to 48 t gross weight, 13.53 m length
This page gathers the 3ASD-18-30 semi-trailers from Broshuis the register could not assign to a further named sub-variant. Broshuis is a trailer maker from Kampen in the Netherlands, specialising in semi low-loaders for heavy-haulage and construction-machinery transport; the type designation 3ASD-18-30 denotes the three-axle version, and the suffix E-2190/27 refers to the associated axle or frame variant.
Read on 3 more paragraphs
The register lists here 5 versions with unladen weights from 9,400 to 12,470 kg, gross weights from 45,000 to 48,000 kg, a length of 13,530 mm and widths from 2,550 to 2,750 mm.
With a gross weight of up to 48 tonnes, the 3ASD-18-30 type sits in the upper range of class O4, as used for transporting construction machinery, agricultural and forestry equipment or other heavy, self-propelled loads over a lowered load floor.
On a used low-loader of this class, the air-brake system with ABS and EBS matters, along with the kingpin and fifth-wheel plate for wear, the three axles including their steering-axle function and brake drums or discs, the lowered frame for twist and cracks at the transition points, and the ramps, lashing points and landing legs for function. Given the high dead weight of the frame construction, it is also worth checking that the towing vehicle's fifth-wheel load rating matches the particular version.
Sources: SpecCodex register, model data: Broshuis 3ASD-18-30, Broshuis (manufacturer)
Technical data
Dimensions and weights
| Width | 2,550 mmcorrect |
|---|---|
| Unladen weight | 9,500 kgcorrect |
| Gross vehicle weight | 48,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Broshuis 3ASD-18-30 weigh?
The unladen weight is 9,500 kg.
What is the gross vehicle weight of the Broshuis 3ASD-18-30?
48,000 kg.
Up to what speed is the Broshuis 3ASD-18-30 approved?
Approved up to 100 km/h.
When was the Broshuis 3ASD-18-30 built?
Production years: 2017-2018.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
