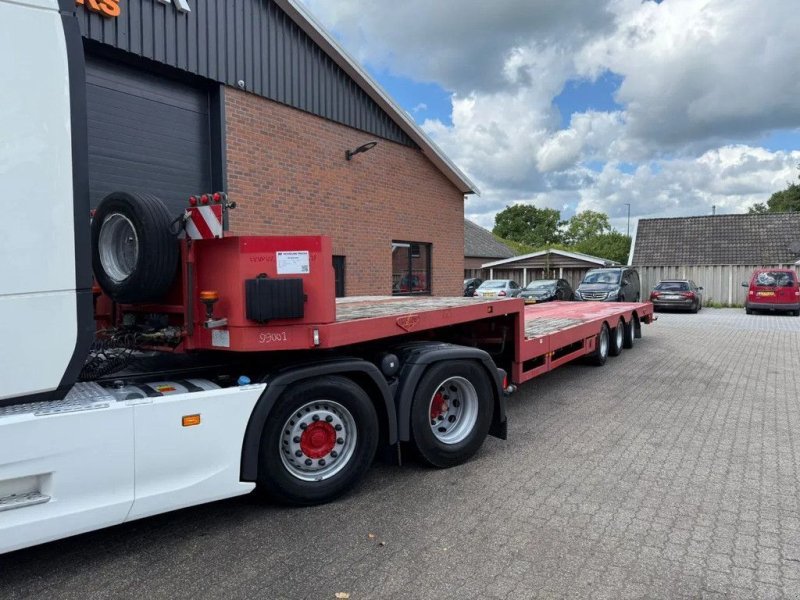

Broshuis 3ABSD-48/2
Built: 2007-2017 · Series: 3ABSD-48
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Broshuis 3ABSD-48 – three-axle low-loader from the Dutch manufacturer in Kampen: 5 versions, gross weight 42,500–53,000 kg, widths up to 2,750 mm
Broshuis is a Dutch manufacturer of low-loaders and semi-trailers for heavy and abnormal transport, based in Kampen. The 3ABSD-48 range denotes a three-axle low-loader of this payload class; the SL suffix and the 80KM/H marking indicate individual versions and their permitted top speed. Trailers and semi-trailers in this weight class fall under EU vehicle category O4 (trailers over 10 tonnes gross weight), the category of heavy semi-trailers and low-loaders for commercial freight and heavy transport.
Read on 3 more paragraphs
The register lists here 5 versions with unladen weights from 12,240 to 16,950 kg at a gross weight of 42,500 to 53,000 kg. Widths range from 2,550 to 2,750 mm.
With a gross weight of 42.5 to 53 tonnes, the 3ABSD-48 range sits in the medium-heavy segment of low-loaders – lighter than five-axle versions for extremely heavy loads, but heavier than standard semi-trailers, suited to construction machinery and mid-size industrial goods.
When buying a used low-loader in this class, check the chassis and loading deck for deformation and cracks, the axles, steering and braking system, and, on hydraulically lowering versions, the condition of the hydraulic cylinders and pumps. Spare parts for axle units and hydraulics are available through Broshuis and the specialist heavy-trailer trade. It is also worth checking tyre age and tread depth, the function of the lighting system together with reflective markings, and proof of the periodic roadworthiness inspection.
Sources: SpecCodex register, model data: Broshuis 3ABSD-48, Broshuis (manufacturer), Zulassungsdaten RDW (Niederlande)
Technical data
Dimensions and weights
| Width | 2,550 mmcorrect |
|---|---|
| Unladen weight | 14,540 kgcorrect |
| Gross vehicle weight | 42,500 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Broshuis 3ABSD-48/2 weigh?
The unladen weight is 14,540 kg.
What is the gross vehicle weight of the Broshuis 3ABSD-48/2?
42,500 kg.
Up to what speed is the Broshuis 3ABSD-48/2 approved?
Approved up to 100 km/h.
When was the Broshuis 3ABSD-48/2 built?
Production years: 2007-2017.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 6 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
