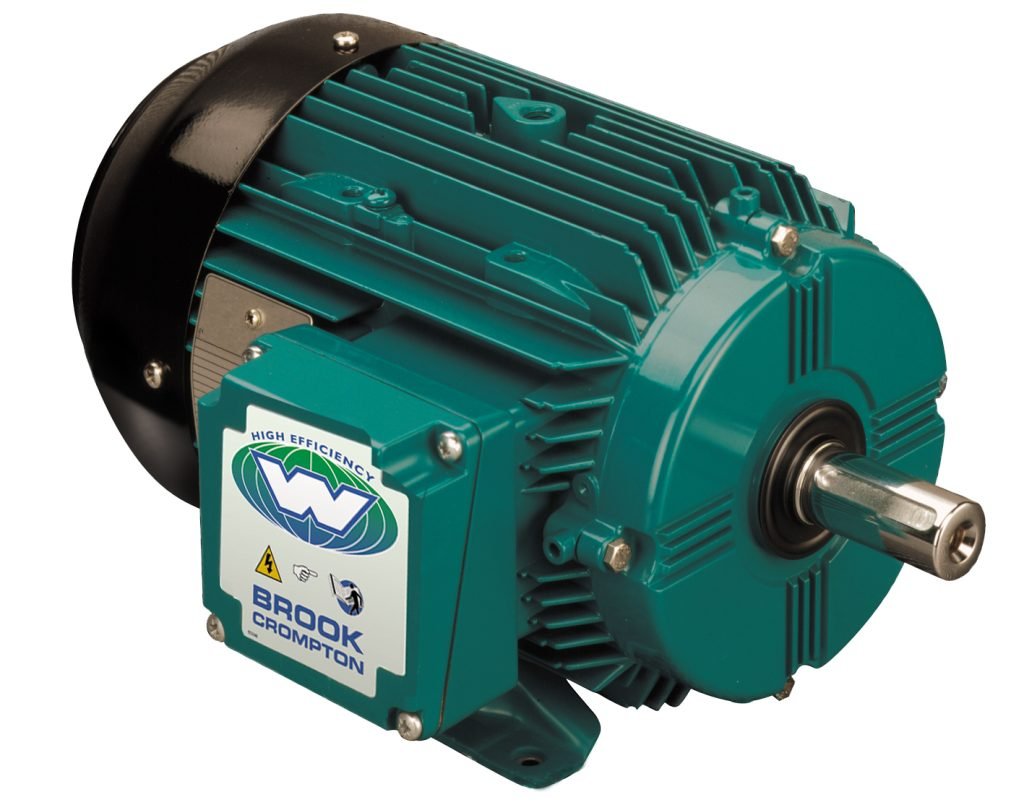

Brook Crompton WM2-UDF315MP-2

Series: Other models

Source: https://www.brookcrompton.com/northamerica/product/ brookcr

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Brook Crompton WM2-UDF315MP-2 is a three-phase induction motor built by Brook Crompton. The rated output is 160 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 315 M in foot-mounted form. The efficiency is 96.2 per cent at full load, 96 per cent at 75 per cent load and 95.2 per cent at half load. The motor weighs 1,150 kg. At full load it delivers 513 Nm. Stated countries of manufacture: China and Poland. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to AS/NZS 1359.102.3:2000. Rated output across the Brook Crompton range ranges from 0.75 to 160 kW; the WM2-UDF315MP-2 sits at the top of that range with 160 kW. Its immediate neighbours are the WM2-UDF355SG-6 below it with 150 kW. 161 Brook Crompton models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output160 kWcorrect

Dimensions and weights

Weight1,150 kgcorrect

Electrical data

Number of poles2correct
Protection classIP55, IP56, IP57, IP58, IP65, IP66correct
Frame size315 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct
Efficiency at full load96.21 %correct
Efficiency at 75 % load96.02 %correct
Efficiency at half load95.17 %correct

Origin and approval

Country of manufactureChina, Polandcorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Brook Crompton WM2-UDF315MP-2 have?

The Brook Crompton WM2-UDF315MP-2 delivers 160 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
