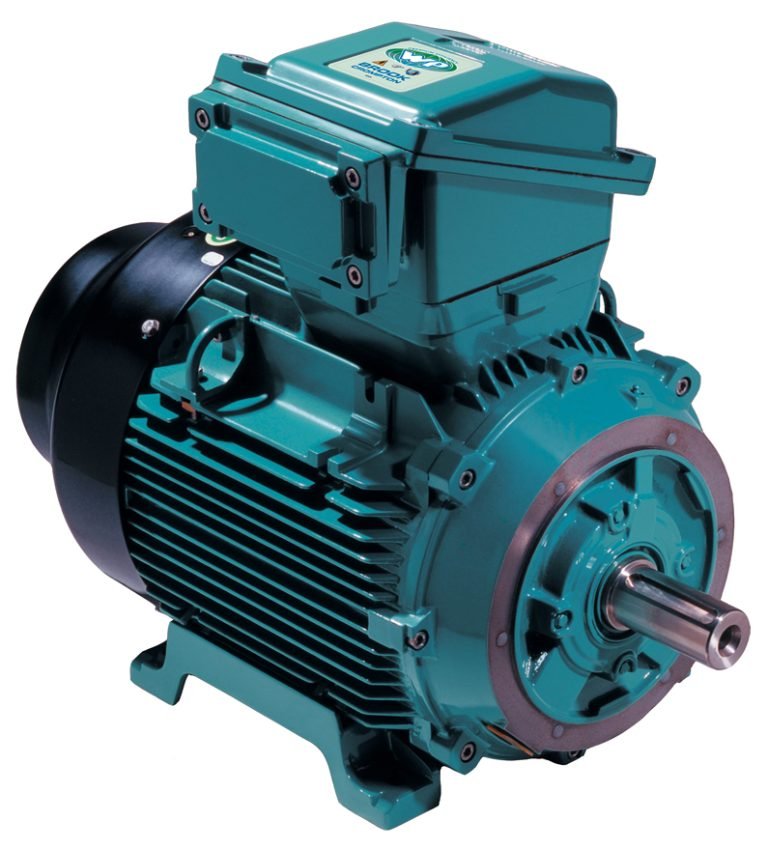

Brook Crompton A-EF160M

Series: Other models

Source: https://www.brookcrompton.com/products/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Brook Crompton lists the A-EF160M as a three-phase induction motor. The rated output is 11 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 1,100 V. The housing is frame size F160. The protection class is IP55. The efficiency is 88.4 per cent at full load, 88.4 per cent at 75 per cent load and 87 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5 and B14. The motor is built in United Kingdom. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2000 (Legacy); measured to AS 1359.102.1:1997. Rated output across the Brook Crompton range ranges from 0.75 to 160 kW; the A-EF160M sits at the bottom of that range with 11 kW. Its immediate neighbours are the WM2-DF160MM-6 below it with 7.5 kW and the A-EF160L above it with 15 kW. 161 Brook Crompton models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output11 kWcorrect

Electrical data

Rated voltage1,100 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame sizeF160correct
Mounting (IEC 60034-7)B3, B5, B14correct
Efficiency at full load88.4 %correct
Efficiency at 75 % load88.4 %correct
Efficiency at half load87 %correct

Origin and approval

Country of manufactureUnited Kingdomcorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Brook Crompton A-EF160M have?

The Brook Crompton A-EF160M delivers 11 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
